Great Plains Manufacturing, Inc. Table of Contents Index Appendix A - Installation 39
2014-06-16 Table of Contents Index 401-885M
Attach Cooler Hoses & Close
Refer to Figure 44
62. Select one new cooler inlet hose:
811-268C HH1/2R2 048 3/4FJIC
Route the hose through the hole prepared at
step 61. Connect it to the upper fitting on the cooler.
63. Mark the free end of this hose “PORT T”.
This step is particularly important for kits
401-848A, 401-879A, 411-166A and 411-168A,
which use identical hoses for inlet and outlet.
64. Select one new cooler outlet hose
(hose is kit dependent):
Route the hose through the hole prepared at
step 61. Connect it to the lower fitting on the cooler.
65. Mark the free end of this hose “FILTER”.
Note: The external ends of these hoses are not
connected at this time.
Refer to Figure 45
66. Select one saved:
890-624C SCREEN FAN COVER
and four saved sheet metal screws .
Re-attach the cover to the cage .
Kit Outlet Hose
401-845A 811-269C HH1/2R2 036 3/4FJIC
401-846A 811-268C HH1/2R2 048 3/4FJIC
401-847A 811-269C HH1/2R2 036 3/4FJIC
401-848A 811-268C HH1/2R2 048 3/4FJIC
401-849A 811-773C HH1/2R2 066 3/4FJIC
401-879A 811-268C HH1/2R2 048 3/4FJIC
411-016A 811-291C HH1/2R2 072 3/4FJIC
411-035A 851-163C HH3/8R2 045 3/4FJIC MJIC
411-036A 851-163C HH3/8R2 045 3/4FJIC MJIC
411-037A 851-053C HH3/8R2 046 3/4FJIC
411-038A 851-053C HH3/8R2 046 3/4FJIC
411-163A 811-269C HH1/2R2 036 3/4FJIC
411-164A 811-268C HH1/2R2 048 3/4FJIC
411-165A 811-269C HH1/2R2 036 3/4FJIC
411-166A 811-268C HH1/2R2 048 3/4FJIC
411-167A 811-773C HH1/2R2 066 3/4FJIC
411-168A 811-268C HH1/2R2 048 3/4FJIC

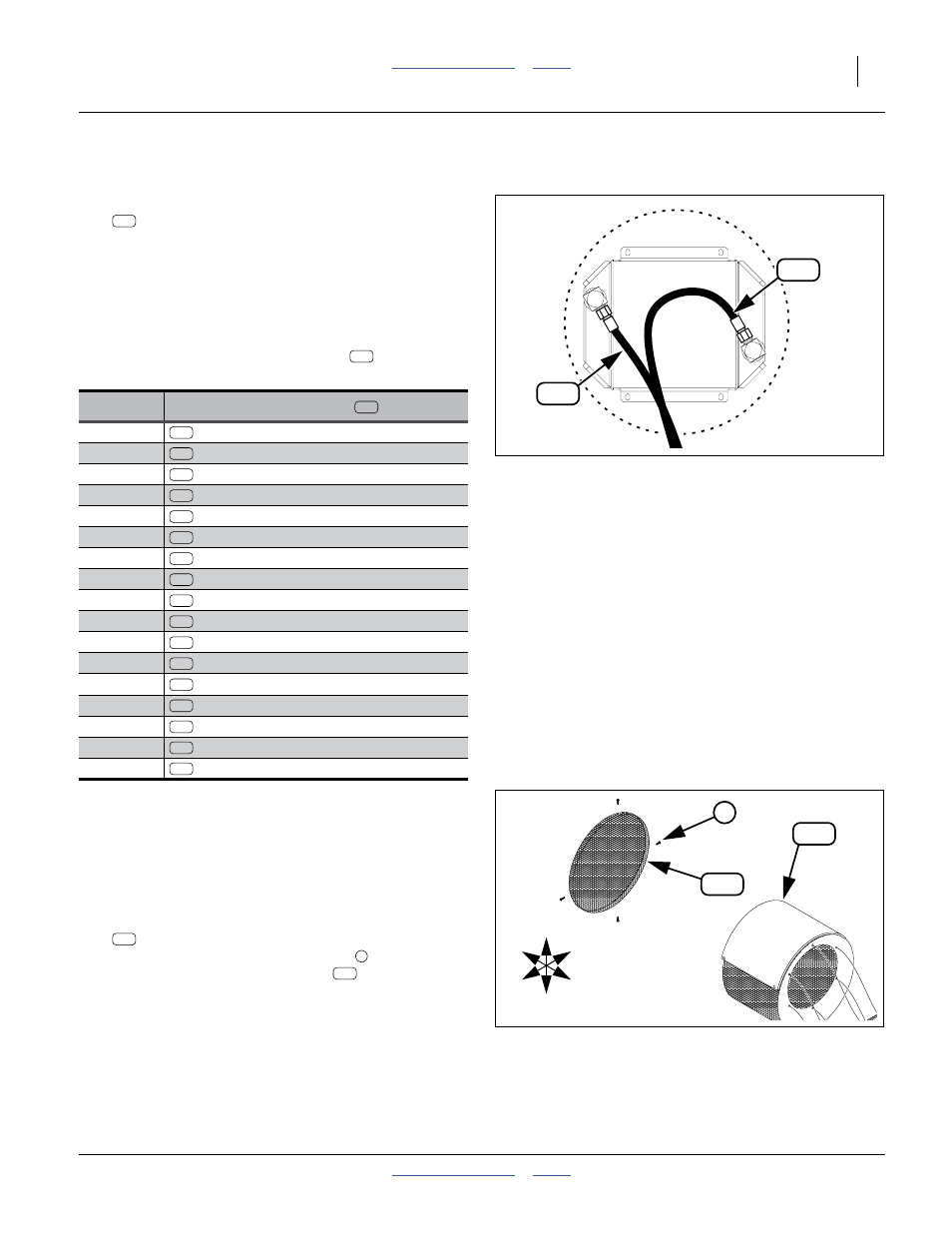

Figure 44:
Cooler Hoses
34636
194
h
INLET
OUTLET
194
h
h
195
194
195
194
203
194
197
228
228
227
227
195
194
195
194
203
194
U
D
F
B
L
R
5
51e
51c
Figure 45:
Close Fan Cage
34631
51e
5
51c
