Reservoir Under Main Seed Box
This topic applies only to kit 411-016A and planter
models 2025A and 2525A. For other kits, find the topic
starting page in the table on page 41.
Refer to Figure 54 and Figure 47 on page 41
The under-box reservoir location is used with 3-point box
planters. It applies to kit 411-016A, which has the
following component unique to the under-box location:
411-017L LB PTO TANK
This tank weldment has a forward mount plate and a
rear mount base , secured to the planter by U-bolts to
the right of the hitch. The forward mount plate rests on
the upper frame tube
. The rear mount base rests on
the angle brace . The rear base has two sets of bolt
holes. The LH holes are shown with the U-bolt. An
alternate U-bolt location is shown at
The tank weldment also has top brackets , which may
be used to re-secure air system pipe brackets.
81. Examine the configuration of the planter.
Temporarily remove some air system piping to allow
access to the installation site.
82. Select one each new:
411-017L LB PTO TANK
which includes (and may have pre-installed):
one each new:
806-159C U-BOLT 1/2-13 X 5 1/32 X 4 1/2
806-144C U-BOLT 1/2-13 X 3 1/32 X 3
and four sets new:
804-016C WASHER FLAT 1/2 SAE PLT
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
Position the reservoir so that the bolt holes of the
front plate
straddle the upper frame tube , at
least one set of rear base bolt holes straddle the
angle brace .
Secure the front plate with U-bolt , flat
washers , lock washers and nuts .
Secure the rear base with U-bolt , flat
washers , lock washers and nuts .
83. Re-install any removed air system pipes.
Continue at “Install Flow Control Valve” on page 48.

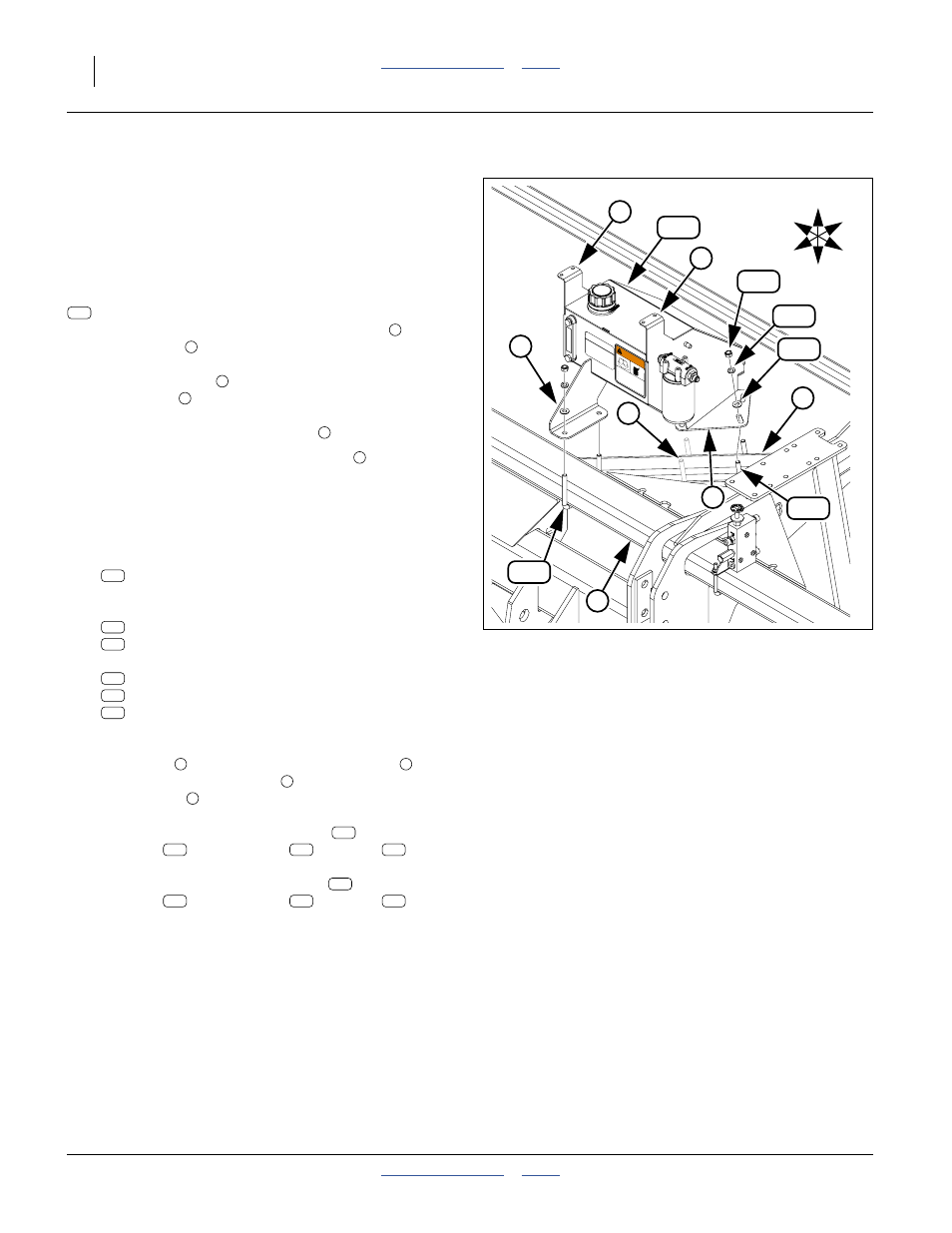

Figure 54:
Under-Box Reservoir 411-017L
36298
858-004C
Read O wner’ s M anu al BEFO RE oper ati ng m ac hine .
Keep tr acto r at ID LIN G SPEED and slo wly engage PT O
to pre ven t damage t o H ydra ulic Moto r
Keep Radiator clean a
nd free o f fore ign mat ter to
pre vent o verheating . Do NO T oper ate with hydr aulic oi l at or a bov e 180°F .
HO T FLUID HAZARD
WARNING
858- 00 3C
USE ANY H IG H Q UA LIT Y MI NE RAL BAS ED
HYDRA ULIC FLUID
WITH A VISCOSITY RA
TING
OF 10W -30. OIL MUST BE CLEAN AND FREE FR OM DIR T OR CONT
AMINANT P
AR TICLES TO
PREVENT D
AMA GE TO PUMP AND MO
TOR.
REPLA CE FIL TER ELEMENT AFTER EVER
Y
150 OPER AT ING HOURS OR 2
YEARS SER
VICE.
LEVE L T OOLBAR BEFORE CHECKING OIL LEVE
L
CAP ACITY = 5.5 U
.S . GALS
OIL FILL LINE
