Reservoir on Tongue at Hitch
This topic applies only to kits 411-035A, 411-036A,
411-037A and 411-038A for planter model YP825AR.
For other kits, find the topic starting page in the table on
page 41.
Refer to Figure 55
On the model YP825AR planter, the reservoir mounts on
the hitch weldment.
84. Remove the cotter pin (not shown) and hose
post . These parts are not re-installed. The
function of this post (hose storage) is replaced by
the keyhole openings in the new tank mount.
85. Select one new:
411-039L 825R HYD TANK RES ASSY
and four sets new:
802-128C HHCS 1/2-13X2 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
If the fasteners are pre-installed in the reservoir
assembly, completely remove them.
With the reservoir sight gauge to Front, install the
reservoir assembly on the rear 4 holes of the
tongue adjustment plate.
858-004C
Read Owner’ s Man ual BEFORE oper
atin g ma chin e.
Keep tr actor at IDLING S PE ED and slo wly en gag e P TO
to p reve nt d amage to H ydr aulic Motor
Keep Radi ator clean and free of f oreign m atter to
pre vent o verheating. Do NO T o pe rate w ith hydr aulic oil at or abo ve 180° F.
HO T FLUID HAZARD
WARNING
858-003C
USE ANY HIGH
Q UALITY MINE
RAL BAS ED
HY DRA ULIC FLU ID WITH A VISCOSITY RA TING
OF 10W -30. OIL MUST BE CLEA N AN D FREE
FR OM DIR T OR C ONT AMINANT P AR TIC LE S T O
PREVENT D AMA GE TO PUMP AND MO
TOR.
RE PLA CE FIL TE R ELE MEN T AF TE R E VE RY
150 OPERA TING HOU RS O R 2 YEAR S SER VICE.
LEV EL TO OLBAR B EFORE CHE CKING OIL LEVEL
CAP ACITY = 5.5 U
.S. GALS
OIL FILL LINE
148
3
169
163
173
1
U
D
F
B
L
R
2

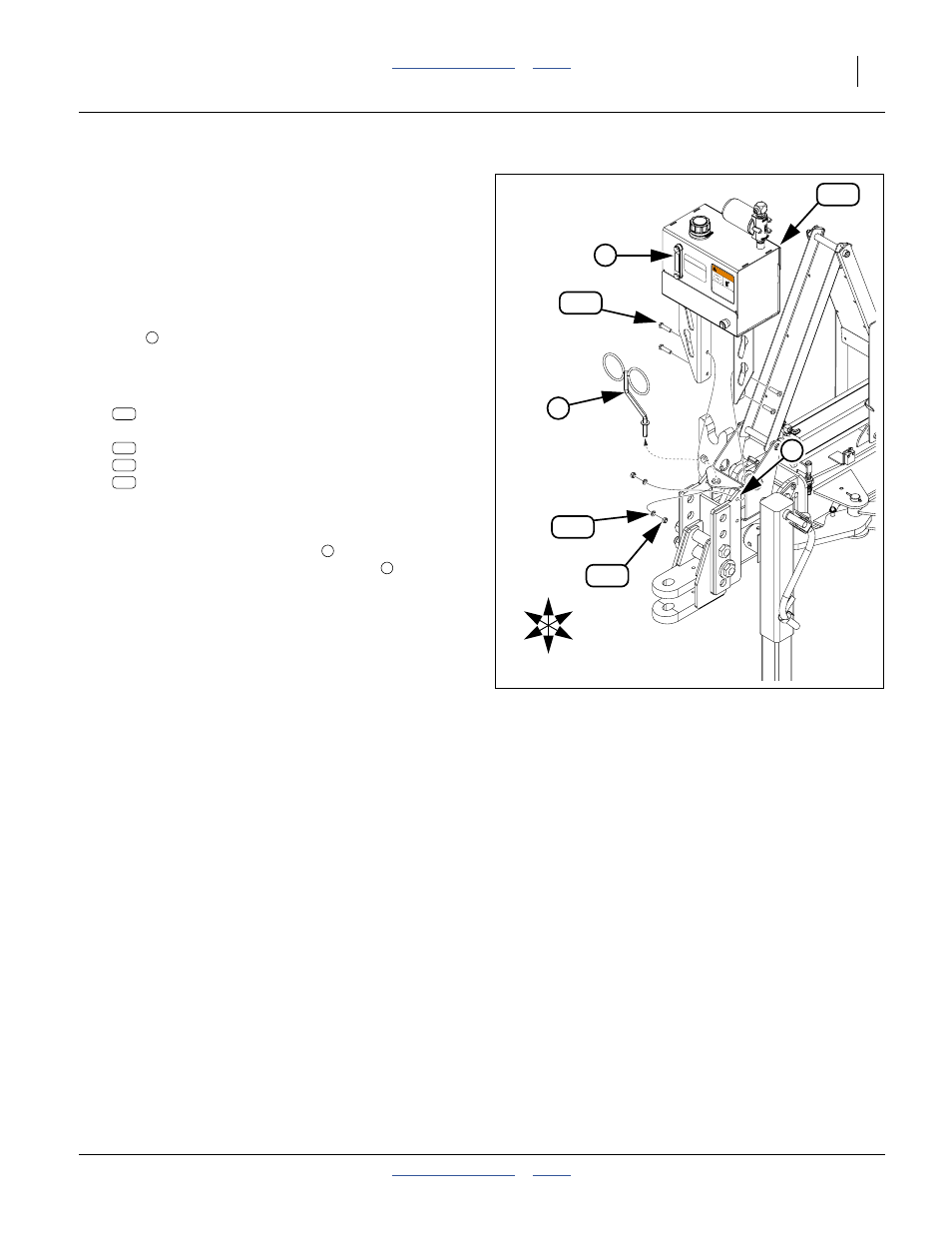

Figure 55:
Tongue Reservoir 411-039L
36296
1
148
163
173
169
2
3
