1000 rpm Type 3 PTO Clearance
If the tractor PTO is not known to conform to Type 3
specifications, check the following pump-specific
clearance dimensions:
Refer to Figure 3
a.
Shaft to master shield top:
5.9 inches (15.0 cm) minimum
or hinged lid
b. Shaft to master shield sides:
7.0 inches (17.8 cm) minimum
c. Shaft to drawbar top:
8.6 inches (22.0 cm) minimum
13.75 inches (35.0 cm) maximum
It may be necessary to invert an offset drawbar, or
relocate or remove any clevis installed on the
drawbar.
d. Shaft to ground:
16 inches (40.6 cm) minimum
a
b
c
d

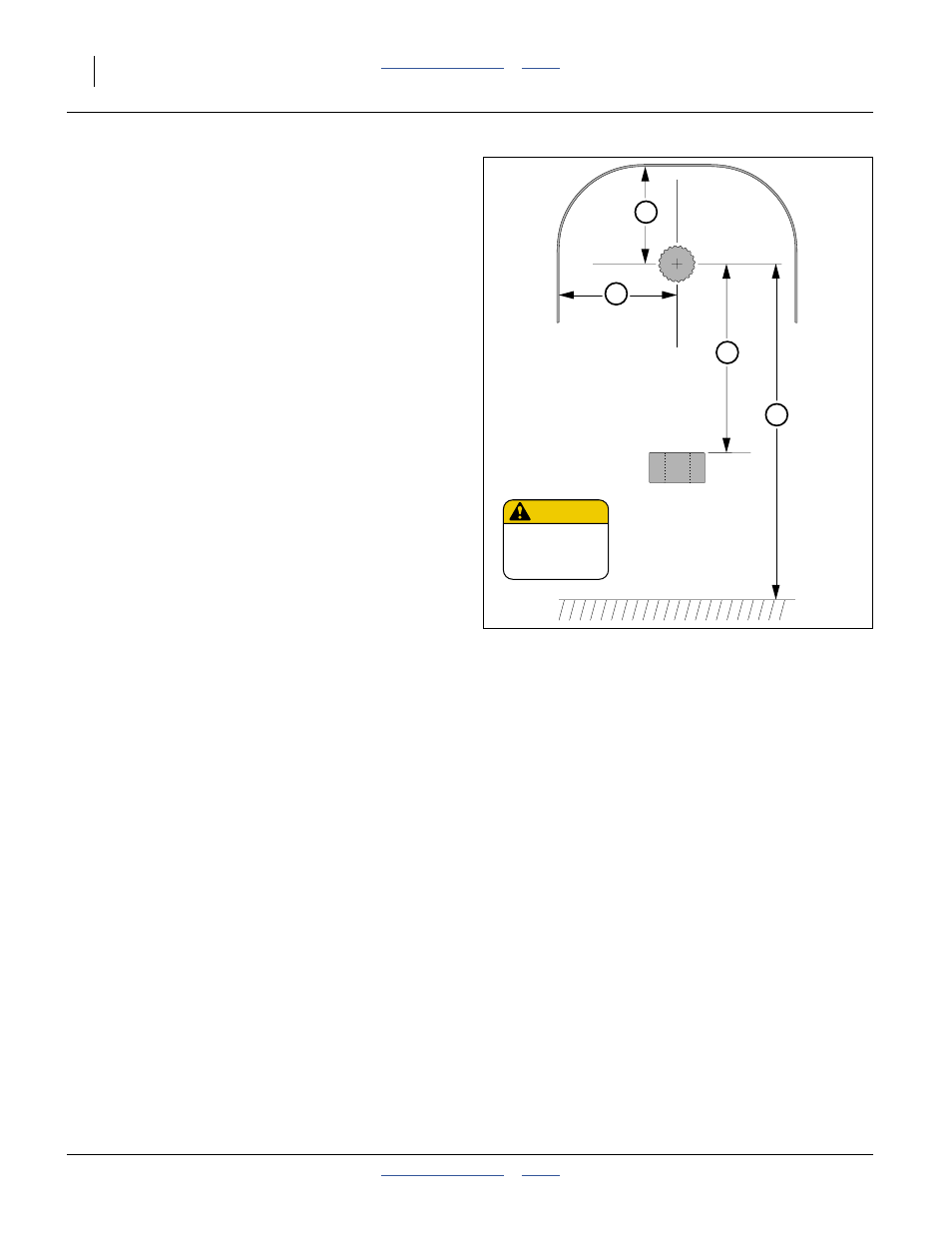

Figure 6:
Type 3 PTO Clearances
34845
818-240C Rev. A
To avoid Injury or
Machine Damage:
·Operate only with
1000 rpm PTO
CAUTION
