Dismount or Relocate Sensor Bracket
Refer to Figure 26
19. Inspect the fan cage for presence of a:
401-537D DJ FAN SENSOR MOUNT BRKT
If there is no sensor bracket, or the bracket is
installed in the top and bottom holes
, skip to
step 22. The bracket may or may not have a sensor
installed.
20. This step presumes that there is a sensor
bracket , and it is mounted in one of the lateral
holes sets . Remove and save two sets of
fasteners securing the bracket, and two sets at the
top and bottom holes
, four sets total:
802-005C HHCS 1/4-20X1 GR5
804-006C WASHER LOCK SPRING 1/4 PLT
804-075C WASHER FLAT 1/4 USS PLT
If also performing a fan motor update, skip to
step 22 (do not relocate sensor at this time).
21. If the fan already has a 2-port hydraulic motor (no
fan update being performed), relocate the sensor
bracket
to a vertical orientation, using hole
set . Secure it with two sets of saved fasteners.
22. Remove and save two or four sets of fasteners at
lateral holes :
802-005C HHCS 1/4-20X1 GR5
804-006C WASHER LOCK SPRING 1/4 PLT
804-075C WASHER FLAT 1/4 USS PLT
If performing a fan motor update, the screen cage is
completely loose at this point. Remove and save it.
If not installing a 401-956A fan motor update, continue at
“Install Fan Cooler” on page 37.
21
28
31
17
51
51c
b
b
b
a
b
a
U
D
F
B
L
R

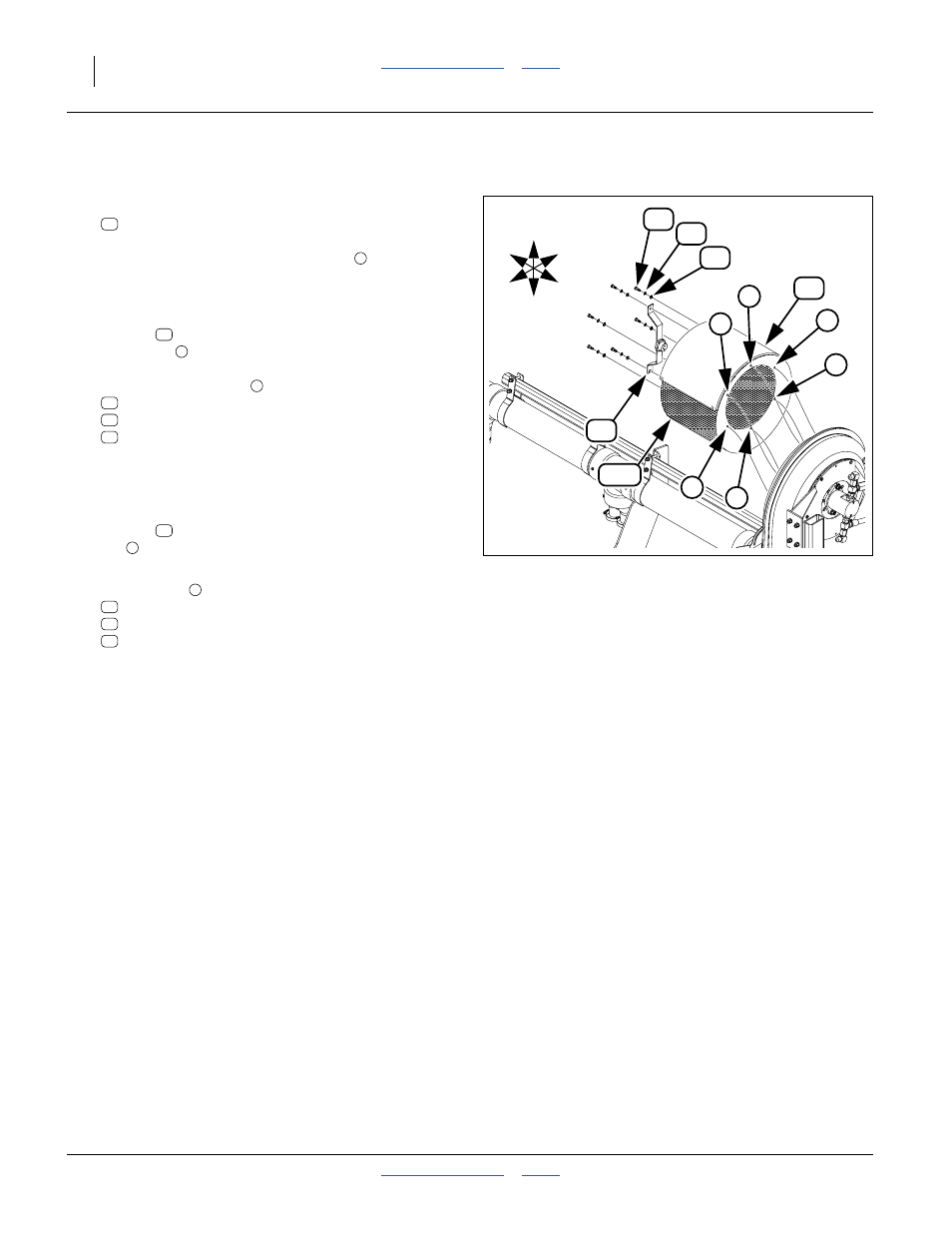

Figure 26:
Prepare Fan Cage
34631
17
a
17
b
a
21
28
31
17
a
b
21
28
31
