POWERMASTER 400SP, 500SP AUTOMATION
2-2 March 16, 2007

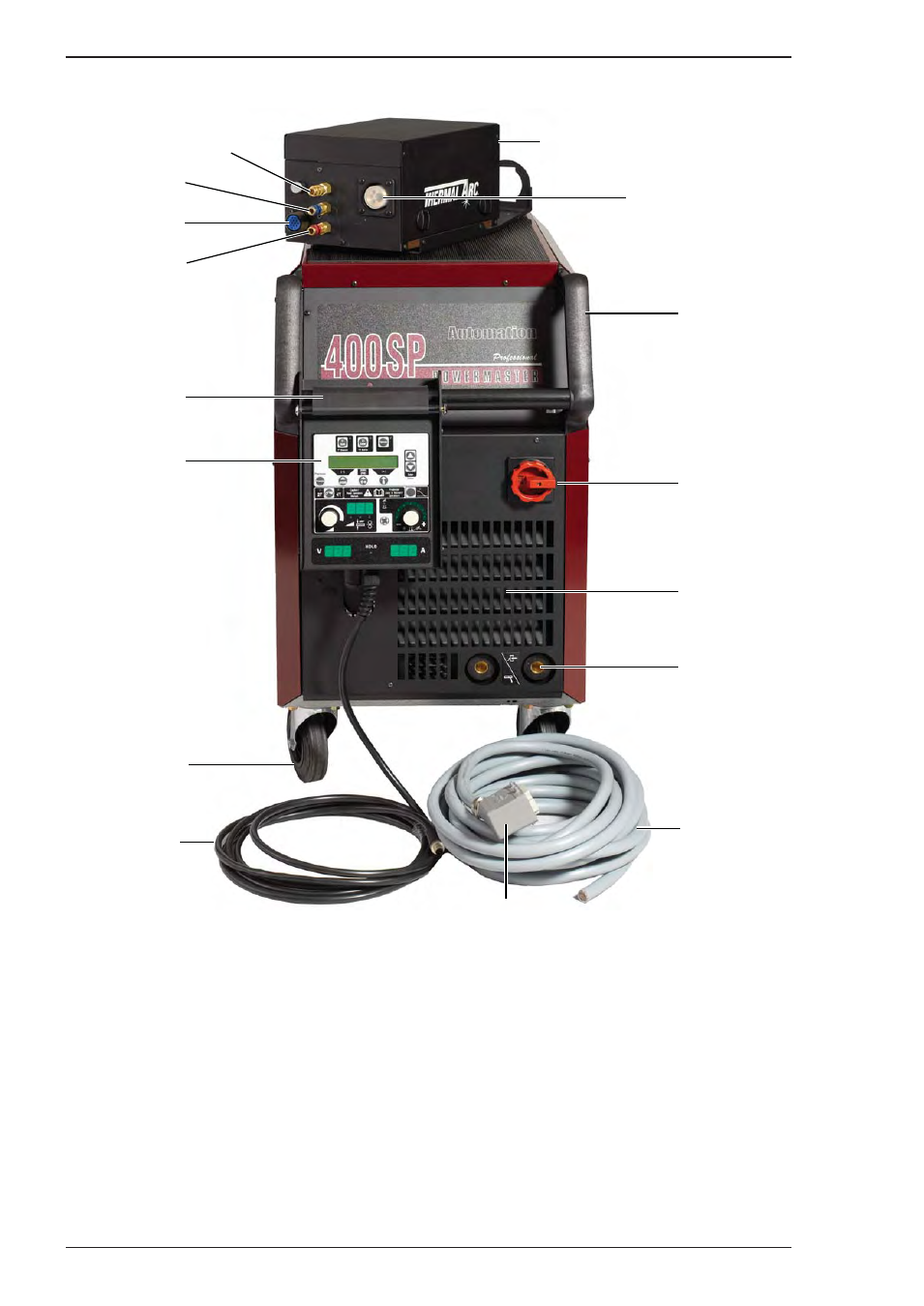

2.04 Machine Components
1. SP4000R Wire Feeder
2. MIG Torch Connection Socket
3. Handle
4. Mains On/Off Switch
5. Air Intake
6. Negative Connection Socket for Work Lead
7. INT06 Robotic Interface Cable
8. INT06 Robotic Interface Connection Plug
9. Remote Pendant Interconnect Cable
(1)
(14)
(16)
(2)
(3)
(12)
(13)
(8)
(4)
(5)
(11)
(10)
Art # A-07791
(15)
(9)
(6)
(7)
10. Wheeling Gear
11. Remote Pendant Operating Panel
12. Protective Cover, Operation Panel
13. Red = Hot coolant return
14. Control Cable Socket
15. Blue = Cool coolant to torch
16. Shielding Gas Valve Inlet
17. Work Clamp (not shown)
18. Coolant Tank Cap (underneath Remote Pendant)
