08 wt1 weld timer – Tweco Weld Sequencer User Manual
Page 52
Section Name
46
Manual 0-2023

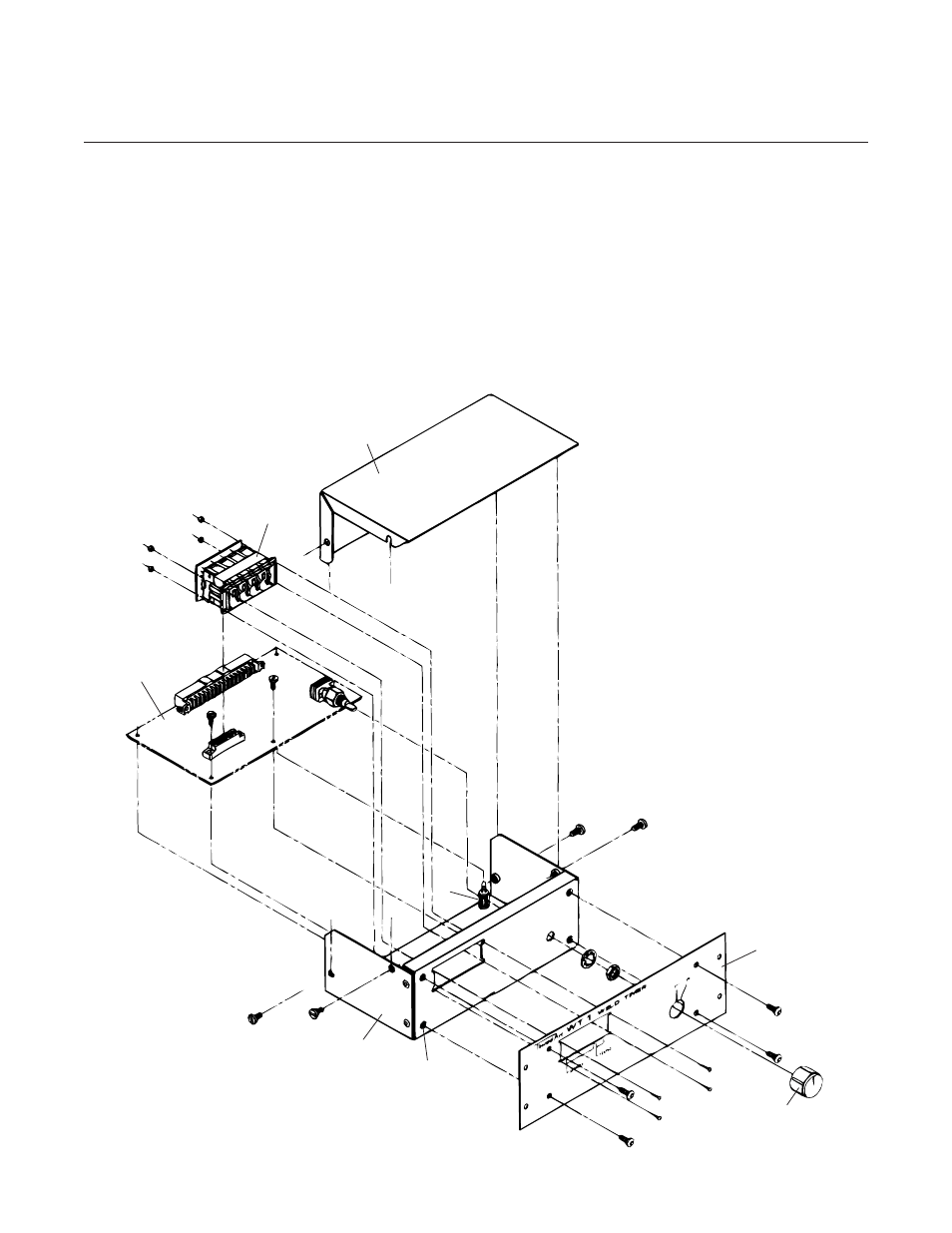

6.08 WT1 Weld Timer
Item #
Qty
Description
Reference
Catalog #
1
WT1 Weld Timer
7-3100
1
1
WT1 Chassis Assembly
2
1
WT1 Cover
3
1
Thumbwheel Switch Assembly
SW2
9-4134
4
1
WT1 PC Board Assembly
9-4133
5
2
PC Board Support
9-5333
6
2
Threaded Spacer
9-5543
7
1
WT1 Front Panel
9-4150
8
1
Control Knob
9-4144
A-02446
2
3
4
1
6
5
8
7
