24 E-flite AT-6 Texan ARF Assembly Manual
Flap Servo Installation
Outer wing panels (right and left) Servo w/hardware (2)
3mm x 10mm self-tapping screw (8) Clevis retainer (2)
2
7 /
8
-inch (73mm) pushrod wire Clevis (2)
Pushrod connector (2)
Servo mounting block
3/4 x 3/8 x 3/8-inch (19 x 9.5 x 9.5mm) (4)
Required Tools and Adhesives
Drill Side cutters
6-minute epoxy Pencil
Phillips screwdriver: #1 Felt-tipped pen
Ruler Pliers
Thin CA
Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm)
 1. Plug the flap servos into the radio system and make
sure they operate and are centered as well.
 2. Prepare the flap servos for installation by removing
any unnecessary arms from the servo horns as shown.
You will also need to clean up the cuts to prevent any
portion of the removed arm from rubbing against the
servo cover when the servos are installed. Install any
grommets and brass eyelets at this time as well. The

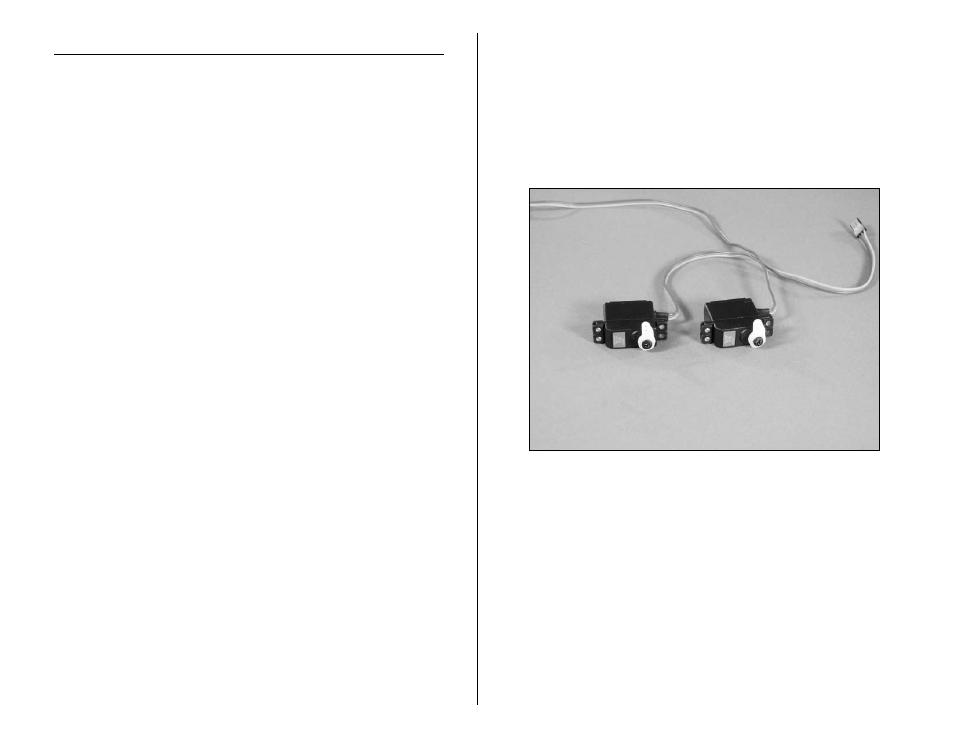

servos will have the arms installed to match each other as
shown in the photo.
Note: The arms are shown in the center position
(which will be the mid flap position) if you are using
three-position flaps. Make sure when using proportional
flaps that the control has been centered before installing
the servo horns.
