E-flite AT-6 Texan ARF Assembly Manual



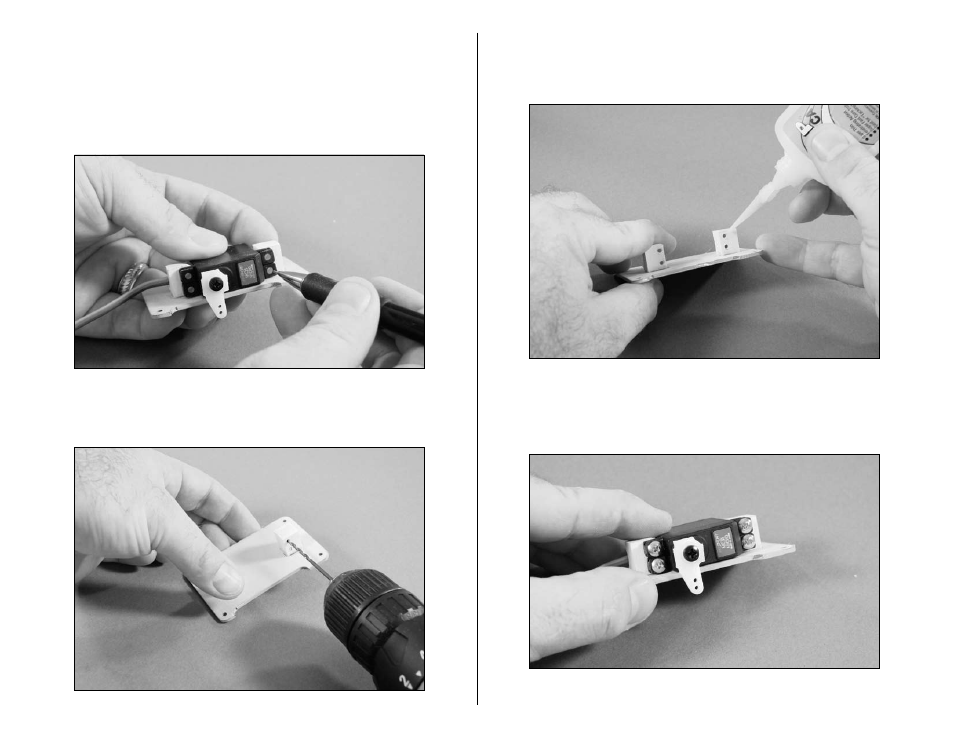

5. Position the servo between the servo mounting block.

Use a pencil to mark the locations for the servo mounting

screws on the blocks. The servo should not touch the

cover to prevent it from absorbing vibrations from the

airframe. You may have to notch the servo block to allow

access for the servo wire.



6. Use a drill and 1/16-inch (1.5mm) drill bit to drill the

holes for the servo mounting screws.



7. Apply a few drops of thin CA to each of the

holes drilled in the previous step to harden the

surrounding wood.



8. Use a #1 Phillips screwdriver to install the screws

provided with the servos to attach the servo to the

servo mounting blocks.
