INSTALLATION GUIDE RGB INLINE COLOR CONTROLLER
2 of 2
IG022614-1.0

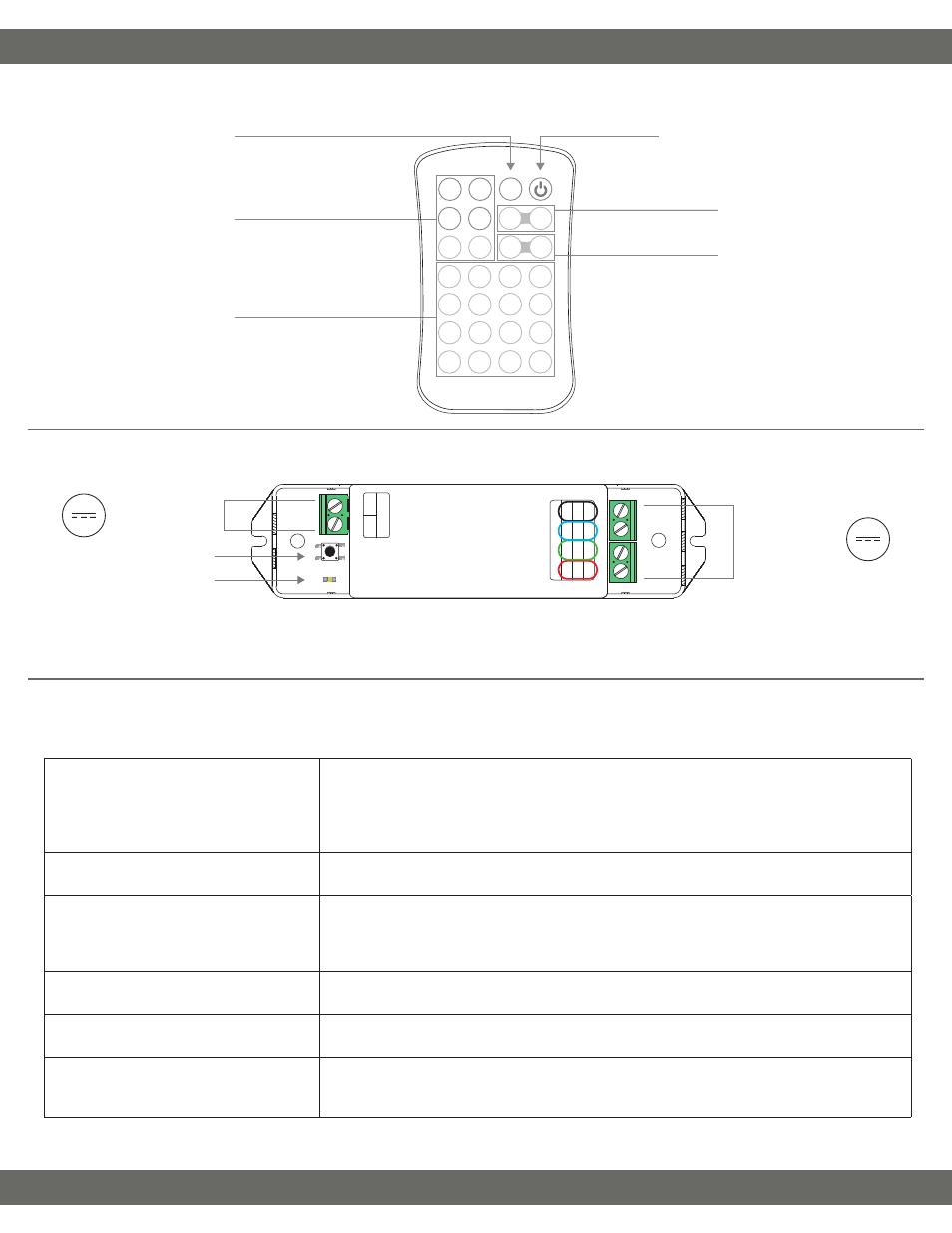

Remote Operation
Dynamic Modes
- Jump (skip) through 3 or 7 colors.
- Fade through 3 or 7 colors.
- Flash (strobe) white color or through 7 colors.
Color Shortcut
Switch between 16 static colors including:
red, green, blue, purple, cyan, yellow, orange,
magenta, and white.
Power
JUMP3 JUMP7 AUTO
FADE3 FADE7 SPEED
+
SPEED
−
R G B W
FLASH FLASH7 BRT
+
BRT
−
Brightness Adjustment
Adust 7 levels of brightness for
static colors and dynamic modes.
Speed Adjustment
Adust 7 levels of speed
in dynamic modes.
Auto
Cycles through
all dynamic modes.
*
*
3 colors include: red, green, and blue.
7 colors include: red, green, blue, yellow,
magenta, cyan, and white.
B
G
R
V+
DC+
DC−
Power
Address Setting
N
U
R
Input From
12-24VDC Driver
Running Light
To Low Voltage
LED Load*
Receiver
CW
WW
NW
V+
W
W
W
V+
Address Setting
*Utilize V+, R, G, & B terminals for RGB fixtures.
OUTPUT
Wiring Connections
Troubleshooting
Fixture does not illuminate
• Ensure the system is wired correctly.
• Verify polarities are correct.
• Ensure a compatible constant voltage dimmable fixture is installed.
• Ensure a compatible constant voltage driver is installed.
• Ensure the driver and fixture have the same voltage specifiations (12V & 12V, or 24V & 24V).
Fixture does not dim
• Ensure a compatible constant voltage dimmable fixture is installed.
• Ensure remote is paired with receiver.
Fixture is flashing or flickering
• Verify a compatible constant voltage driver is installed.
• Ensure a compatible constant voltage dimmable fixture is installed.
• Ensure all connections are properly secured.
• Ensure no more than a single controller is attached to each driver output.
Fixture is slowly flashing
• Ensure driver is not overloaded. An overloaded driver will cause the internal auto-reset of the driver
to trip repeatedly.
Correct colors are not illuminating
• Verify the correct leads are connected to the correct terminals on the receiver.
• Ensure potential leads at opposing end of fixture are not crossed.
Unable to pair remote with receiver
• Ensure the battery of the remote is not drained.
• Read the installation instructions on page 1 thoroughly.
• Reset the receiver to factory settings.
Prior to troubleshooting, ensure a compatible system is installed. Verify compatible fixtures, drivers, controls and additional components were specified
correctly.
For additional questions/concerns, contact technical support. Please have all part numbers on hand for fast and efficient technical assistance.
Determine the number of low voltage outputs of the driver when installing multiple PWM controllers. No more than one PWM controller can be attached to
a single output of the driver.
