INSTALLATION GUIDE
[email protected] www.DiodeLED.com 2 OF 2
DMX 8-WAY SPLITTER
®
Visit the on-line product page at www.DiodeLED.com for additional product specifications & warranty information.
• DMX 8-WAY SPLITTER Specification Sheet
For full specifications.
• Voltage Drop Charts
Use to specify appropriate wire gauge for installation. Available at the ‘Tools & Resources’ page at www.DiodeLED.com.
Additional Resources
QUESTIONS?
Visit www.DiodeLED.com or contact Customer Support at [email protected]
or 1.877.817.6028 Monday through Friday, 7:00am - 5:00pm PST.

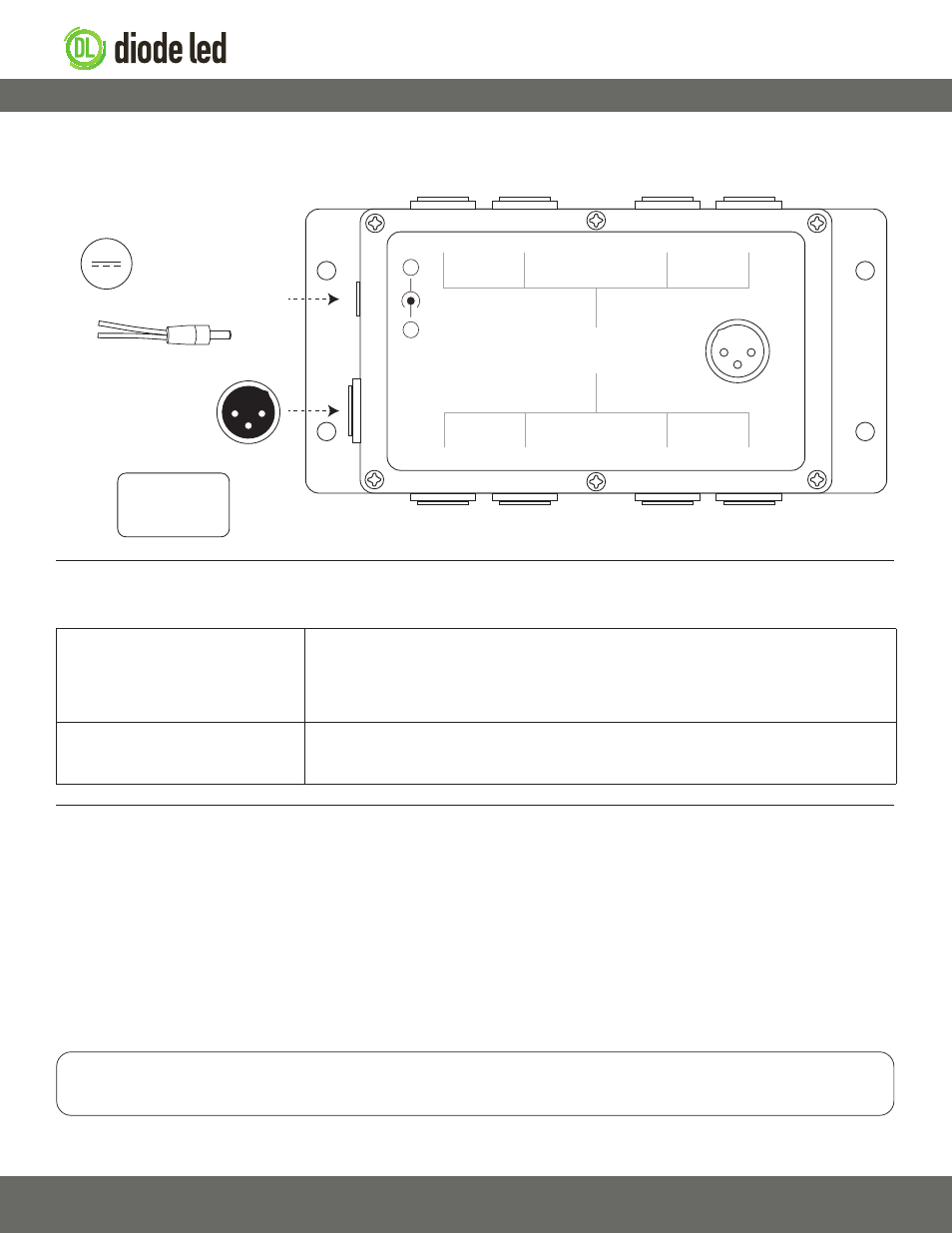

Wiring Connections
1 2
3
1 2
3
+
-
Input From
12-24V Driver
DMX-512 Output
(8x Female XLR-3 Connections)
DMX-512 Input
(Male XLR-3 Connection)
(Requires Male DC Plug, 5.5 x 2.1mm)
Pin 1: Ground
Pin 2: Data -
Pin 3: Data +
DO NOT connect directly to 120VAC. Install in accordance with the NEC, and local regulations.
IG061714-1.1
Troubleshooting
LED fixture responding incorrectly
• Ensure all wiring connections are correct. Reversing the Data + and Data - will cause lights to flicker
and not respond to controller:
• Check power connections of all components (drivers, DMX decoders/fixtures, DMX controller).
• Ensure a compatible constant voltage driver is installed.
• Ensure the driver and DMX fixture have the same voltage specifications (12V & 12V, or 24V & 24V).
Fixture is flashing or flickering
• Verify a compatible constant voltage driver is installed.
• Ensure all connections are properly secured.
Prior to troubleshooting, ensure a compatible system is installed. Verify compatible fixtures, drivers, controls and additional components were specified correctly.
