Page 2: Mount the interface on the wall

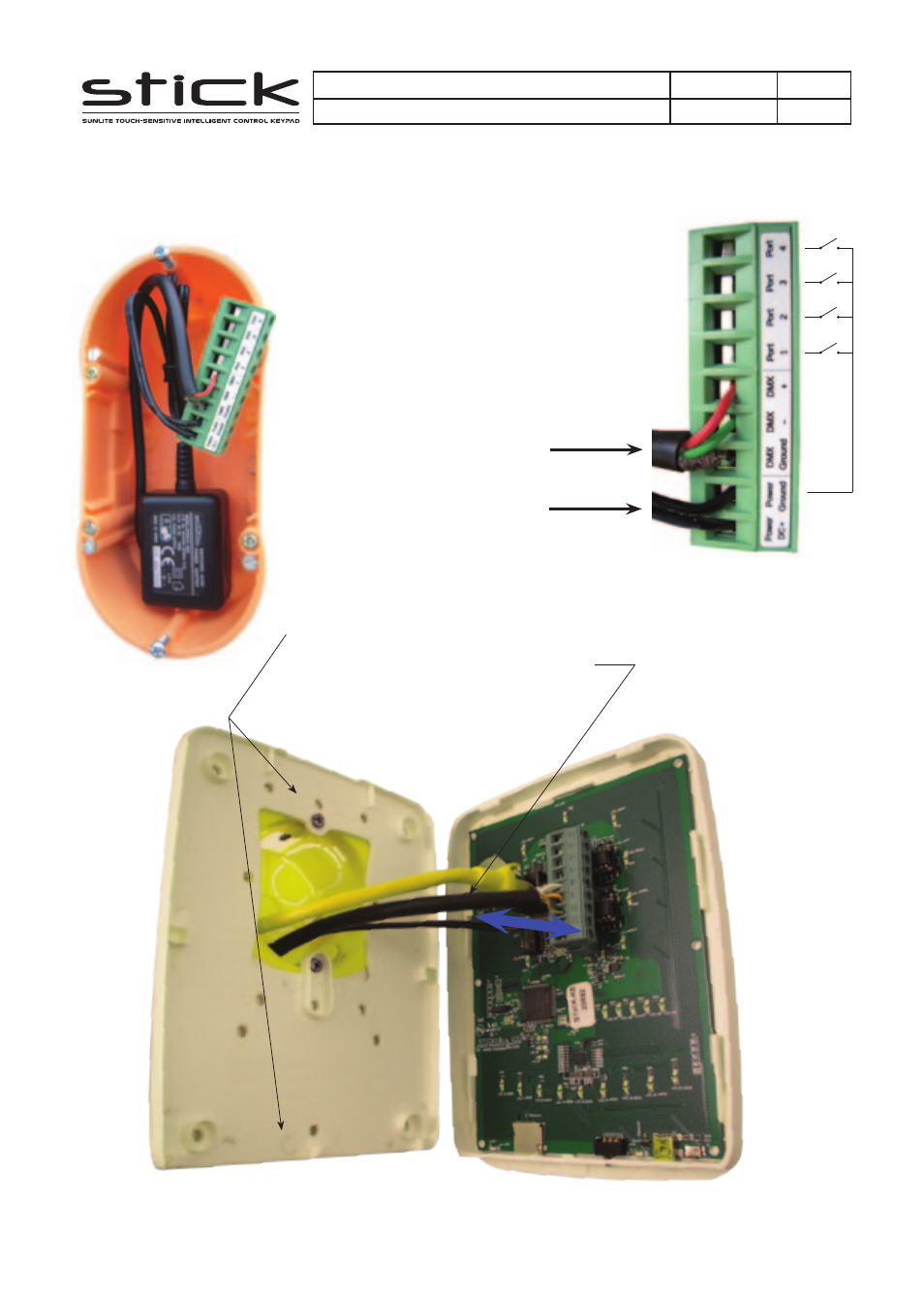

1. Mount an electrical box

inside the wall

The S.T.I.C.K. controller can be installed in any standard

electrical backbox. If you use a double size box,

you can insert the power supply inside.

2. Connect the wires

DMX: Connect the DMX cable to the lighting

receivers (Leds, Dimmers, Fixtures..)

(for XLR: 1=ground 2=dmx- 3=dmx+)

POWER: Connect a 6V DC 0.65A.

Be sure to not invert the + and the ground.

3. Mount the interface on the wall

First, mount the back side of the interface on the wall with 2 or more screws

Secondly, plug the 2 connectors (see blue arrow)

Then, close the interface, using one screw

Sunlite Touch-sensitive Intelligent Control Keypad

Ref. STICK-KE1

Page 2/4

Technical datasheet

Revision date 2 May 2013

www.nicolaudie.com

Version 1.2

EASY INSTALLATION

PORT 1,2,3,4 : If your application

need to have some external contact

closures, make the contacts between

the ground and the ports
