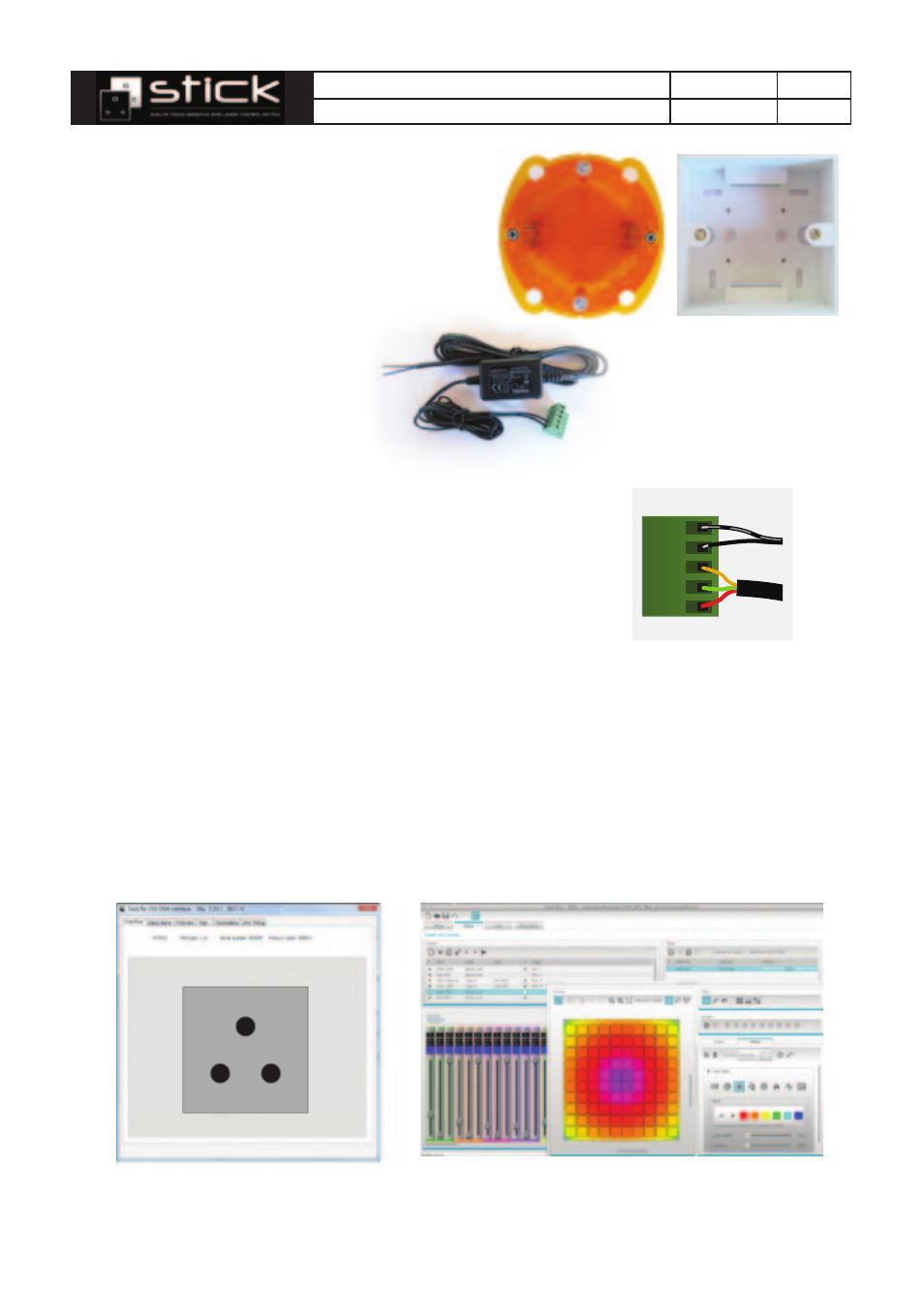

1. Mount an electrical box
inside the wall
The S.T.I.C.K. controller can be installed in a standard 60mm
electrical backbox.
You can insert the AC/DC adapter
inside or outside the backbox.
2. Connect the wires
Use the green connector block
3. Mount the interface on the wall
First, plug the green connector block
Secondly, mount the back side of the interface on the wall with 2 or more screws
Then, close the unit by clipping the front panel onto the back plate
Wait 30 seconds for the touch sensitivity to adjust
Sunlite Touch-sensitive Intelligent Control Keypad Ref. STICK-GU2 Page 2/2
Technical datasheet Revision date 16 Oct. 2013 www.nicolaudie.com Version 1.21
EASY INSTALLATION
TOOLS.EXE to set parameters
© Nicolaudie 1989-2013. All rights reserved. We reserve the right without notice to amend the technical information and specifications.
SOFTWARE
ESA2 (PC & Mac) to make lighting programs
POWER+DMX
WITH THE CONNECTOR BLOCK
DMX: Connect the DMX cable to the lighting receivers (Leds, Dimmers, Fixtures..)
(for XLR: 1=ground 2=dmx- 3=dmx+)
POWER: Connect the AC/DC adapter. Make sure not to invert the + and the ground.
POWER
DC +
POWER
Ground
DMX
Ground
DMX -
DMX +
