Diode LED TRIANT LED Puck Light - Manual (Page 2)

Magnetic Dimmable Driver Installation: Ensure main
power is turned OFF. Attach a Male Adapter splice cable
to the puck light or splitter cables and hard-wire to the
dimmable driver. Refer to the Magnetic Dimmable Driver
Installation Sheet for more thorough wiring instructions.
12/24V REIGN Dimmer Installation: Ensure main power
is turned OFF. Attach a Male Adapter splice cable to the
puck light or splitter cables and hard-wire to the REIGN
Dimmer Switch. Refer to the REIGN Dimmer Switch and
compatible driver installation sheets for more thorough
wiring instructions.
• Fixture does not light up: Turn OFF main power. Ensure
all connections and components are compatible and
secure. Turn main power ON.
• Fixture is flickering: Ensure a compatible system
is installed. If installing a dimmable system see the
Magnetic Dimmable Driver, and REIGN Dimmer
installation guides etc. for more thorough wiring
instructions. Ensure all connections are secure.
• Fixture is overheating: Ensure fixture is installed in a
well-ventilated area. Ensure driver is not overloaded
and wiring/accessories are not exceeding their
maximum amperage ratings.
• Fixture turns ON and OFF continuously: Ensure driver
is not exceeding its maximum load rating.
TROUBLESHOOTING
WARNING!! DO NOT CONNECT THIS
PRODUCT DIRECTLY TO 120V AC POWER!
DO NOT CONNECT IN SERIES

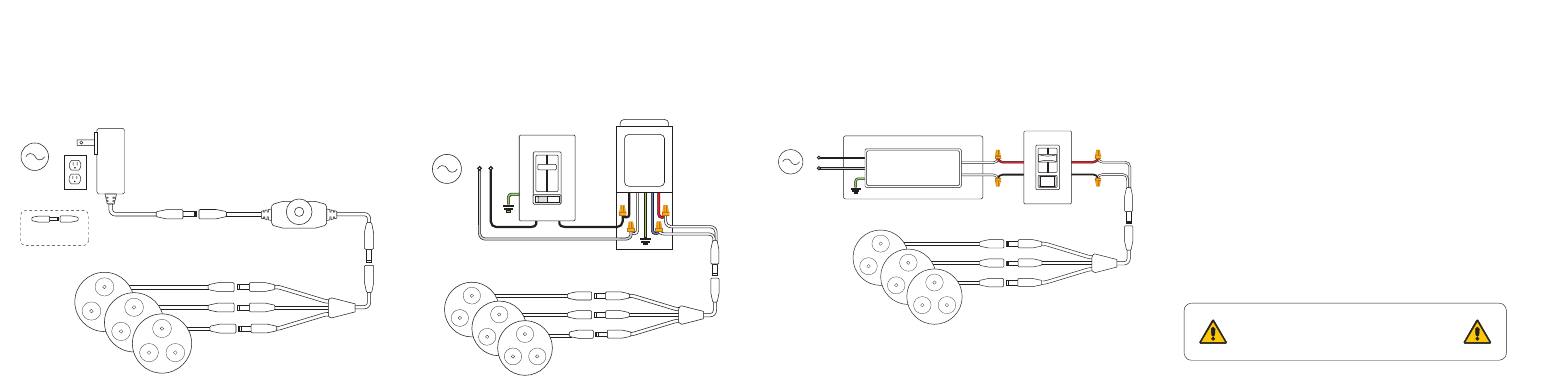

Plug-In Adapter Installation: Ensure main power is turned
OFF. Attach the 12V Adapter to the Puck Light with attached
male/female DC plugs. Plug the adapter into a 120VAC
electrical receptacle. Additional inline accessories such as
DC splitters, extension cables and controls may be attached
between the adapter and puck light. Turn ON main power.
120-277VAC~
50/60Hz
120VAC Magnetic Low
Voltage Dimmer†
L N
Magnetic
Dimmable Driver††
Adapter Spli
ce
Cable - Mal
e
DC Splitter Plug TRIANT™ LED
Puck Lights
.
.
.
. .
.
.
. .
.
.
.
. .
.
.
. .
.
.
.
. .
.
. .
.
V+ (Red)
V- (Blue) N (White)
L (Black)
Inline Accessory
(Extensions, splitters, controls, etc.)
DC Splitter Plug
TRIANT™ LED
Puck Lights
.
.
.
. .
.
. .
.
.
.
.
. .
.
.
.
.
.
.
.
. .
.
.
. .
Class 2 Low Voltage
Plug-In Adapter (Driver)
120-277VAC~
50/60Hz
Insertion points for
1M Extension Cables
V- (Black)
.
.
.
. .
.
.
. .
.
.
.
. .
.
.
. .
.
.
.
. .
.
.
. .
Input Output
120-277VAC~
50/60Hz
L
N V+ (Red)
Adapter Splice Cable - Male
DC Splitter Plug TRIANT™ LED
Puck Lights
G*
N
L
Input
Output
V+
V-
Class 2 Low Voltage Driver**
Installed in Junction Box‡ REIGN 12-24V Dimmer****
