INSTALLATION GUIDE
[email protected] www.DiodeLED.com 2 OF 2
MATTONE ™ DIRECT-WIRE LED STEP LIGHT FIXTURE
®
Visit the on-line product page at www.DiodeLED.com for additional product specifications & warranty information.
• MATTONE™ DIRECT-WIRE LED STEP LIGHT FIXTURE SPECIFICATION SHEET
For full specifications.
Additional Resources
QUESTIONS?
Visit www.DiodeLED.com or contact Customer Support at [email protected]
or 1.877.817.6028 Monday through Friday, 7:00am - 5:00pm PST.

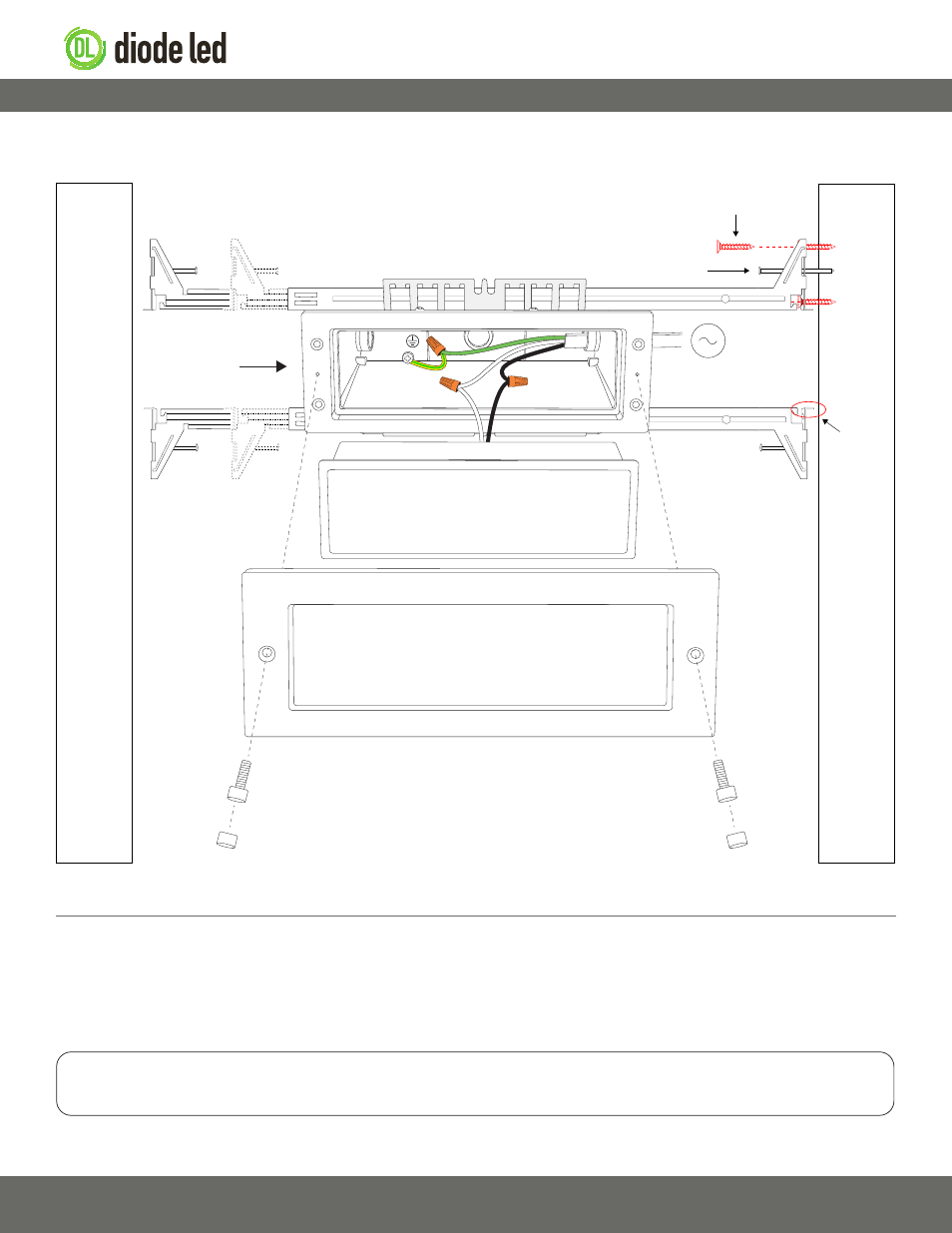

Wiring & Mounting Diagram
IG100214-1.2
MATTONE Faceplate
MATTONE Light Engine
MATTONE Support Housing
(DI-MATB-HOUS)
(Sold Separately)
2x MATTONE Mounting Brackets (DI-MATB-HANG)
(Sold Separately by the pair)
2x Faceplate Allen Screws
(use #3 Allen key)
2x Screw Caps
120-277VAC~
50/60Hz
13.5“- 25.5” adjustable arms
for wall stud mounting.
Use 2x screws on each side of arm to secure
Mounting Bracket to stud (8x wood screws included).
Utilize guide nail to
fasten arm to stud.
When installing
mounting
brackets, note
that elbow of
cleat will
partially bend or
recess based on
firmness of
surface.
STUD STUD
Y/G
Neutral (White) Hot (Black)
