INSTALLATION GUIDE INFINILINE™ 120V LED STRIP LIGHT
2 of 2
1. Uncoil strip light from spool.
2. Mount strip light utilizing included mounting clips and screws (3 clips per
meter). Do not secure with staples, nails, its AC cord, or like means that
may damage the insulation or permanently attach the fixture to a building
structure.
Installation
WARNING: When using wet location / outdoor use portable lighting products,
basic safety precautions should always be followed to reduce the risk of fire,
electric shock, and personal injury, including:
• GFCI (Ground Fault Circuit Interrupter) protection must be provided on
wet location and outdoor circuits. Electrical receptacles are available with
built-in GFCI protection.
• Use only outdoor extension cords, such as type SW, SOW, STW, STOW, SJW,
SJOW, SJTW, or SJTOW. The type is marked on the wire of the extension
cord.
3. Plug into an electrical receptacle.
Wet Location / Outdoor Installation Warnings
See below for common troubleshooting questions. If lights still remain unresponsive contact technical support. DO NOT attempt to fix product in the field.

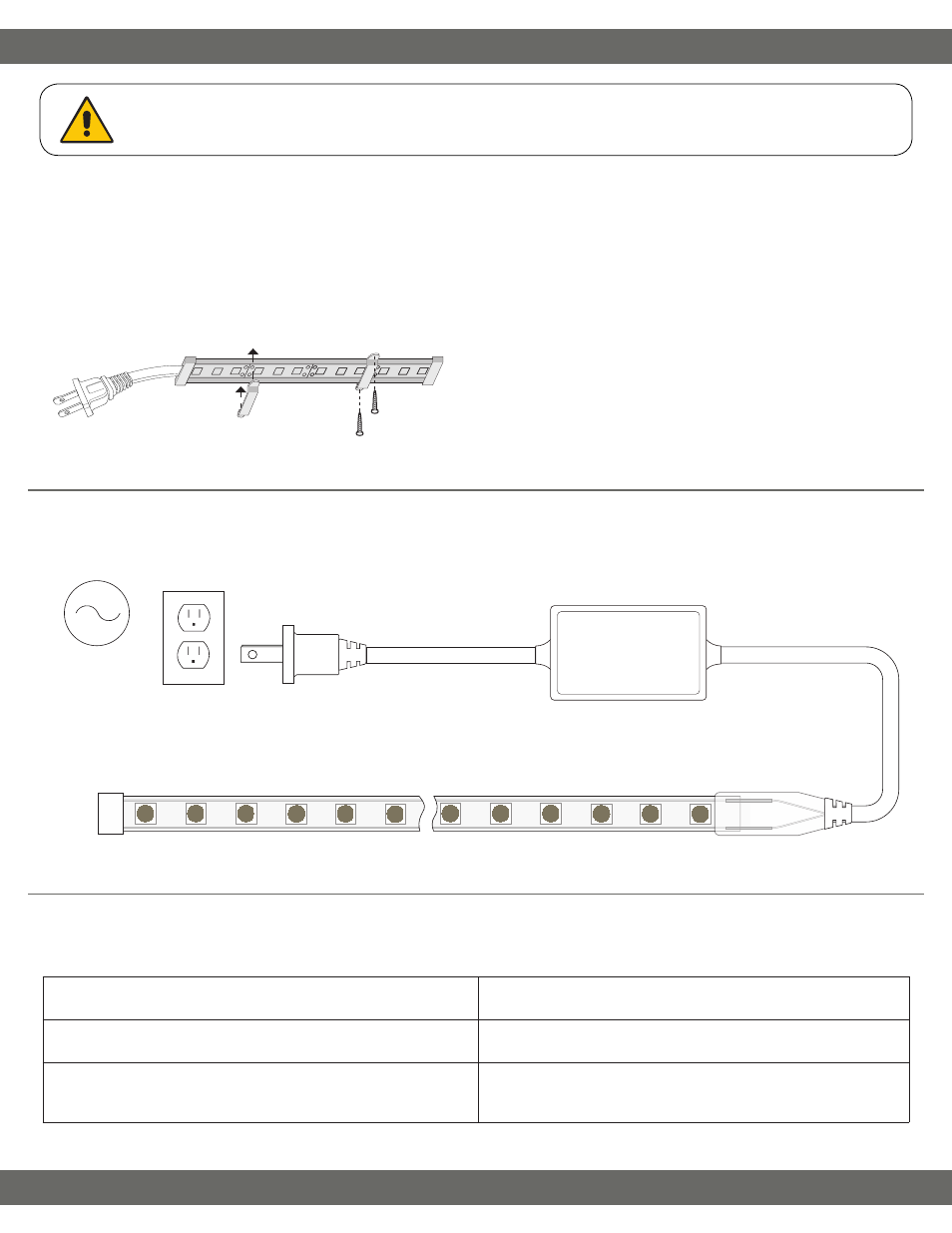

System Diagram
This is not a field-cuttable strip light. Uncoil strip light prior to plugging into an electrical receptacle.
Do not modify the strip light or attached AC cord. Install in accordance with the NEC and local regulations.
Install in accordance with the NEC and local regulations.
110 ~120VAC
50/60Hz
Pre-manufactured Power Unit
(Do not remove)
INFINILINE™ Strip Light
Some LED’s are not functional
• Ensure product has not been bent excessively, potentially breaking
connections.
Lights are flickering
• This product is not dimmable. Only install on switching (On/Off circuit).
• Verify strip is plugged into a 110-120VAC, 50/60Hz circuit.
Lights will not illuminate
• Ensure main power is turned On.
• For wet location / outdoor installations, ensure the GFCI receptacle
breaker has not tripped.
Troubleshooting
