Appendix B RSNetWorx for DeviceNet Software and the DeviceLogix Editors
There are a number of controls presented in the Parameters dialog
box. Most of the controls are available both on line and off line, while
others are available only on line. The on line only features include
Groups, Upload From Device, Download To Device, and Start Monitor
buttons as described in the Online Functions table.
Online Functions
Function Description
Groups Select which group of parameters to view.
Upload From Device Reads the configuration data from the device.
Download To Device Writes the current configuration to the device.
Start Monitor Continually monitors either a single parameter in the
parameter list or all the parameters in the parameter list.
You tell the monitor routine whether you want to monitor a
single parameter or all parameters using the Single or All
buttons located to the left of the on-line buttons. Note that
when you click the Start Monitor button, the button name
changes to Stop Monitor. You can toggle the monitor mode
on or off by clicking this button.

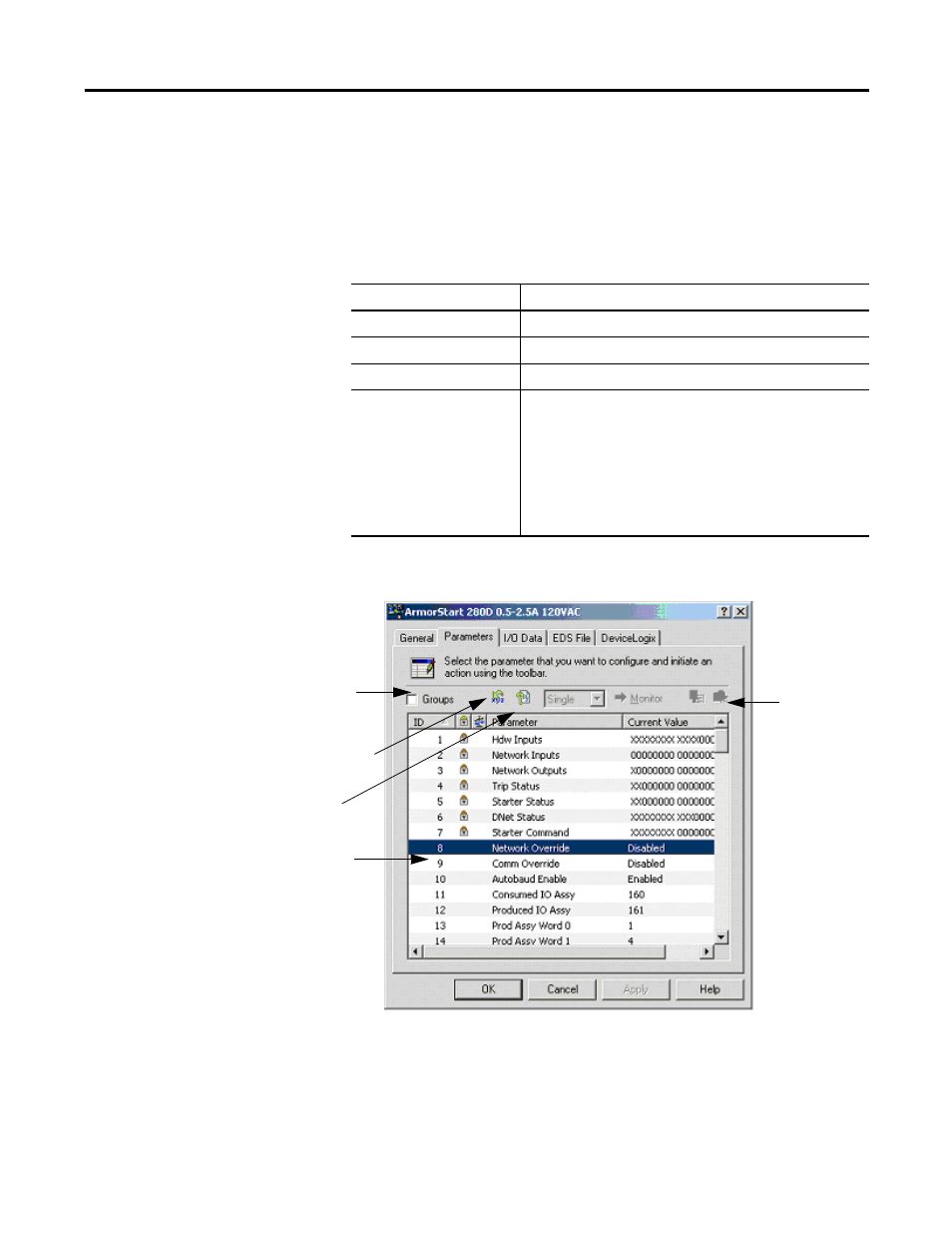

Parameter List Box
Online Options
Groups Checkbox
Restore Default Values
Parameter Help
