138 Publication RA-UM003B-EN-P - February 2010
Chapter 6 Navigate the New Ladder Editor Interface

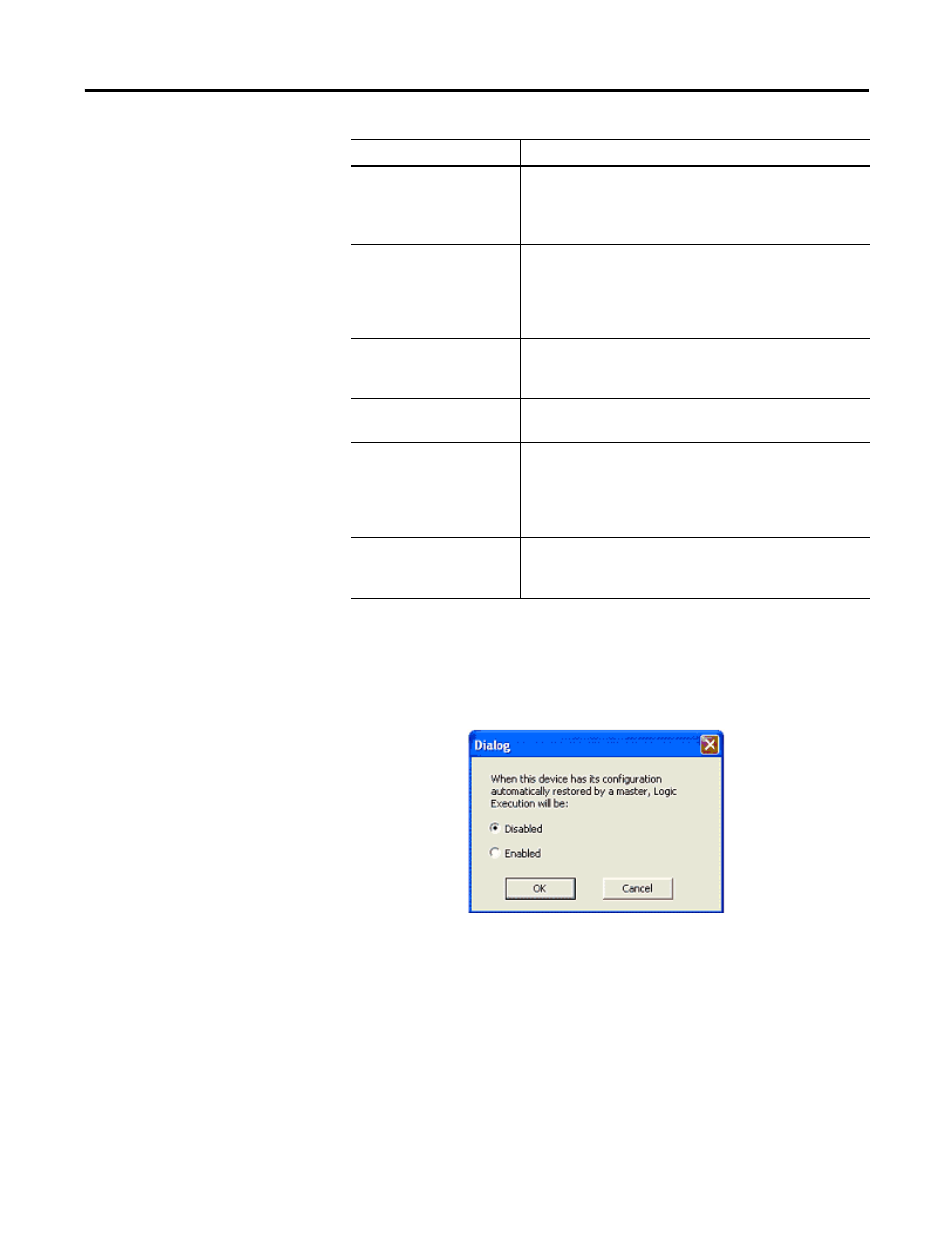

Recovery Mode
If the host software supports Recovery Mode, choose Edit >
Recovery Mode. In the Recovery Mode dialog box, you can choose
to enable or disable the recovery mode.
When using the Allen-Bradley master, choose the recovery mode
option to determine how the I/O device should recover from an
automatic download by a master device.
Edit Ladder Element Modifies the selected ladder element by you changing the
instruction type or the instruction type parameters. Note
that it is possible to change only instruction types of the
same category (bits, latch, timers, counters).
Edit Element Modifies the selected ladder element. It is possible to
change the instruction type or the instruction type
parameters. Note that it is possible to change only
instruction types of the same category (bits, latch, timers,
counters).
Edit Element Comment Modifies the comment attached to the selected rung or
instruction type. Note that you cannot add comments to
branch or branch level elements.
Properties Access the Configuration Properties dialog to modify or add
configuration information.
Recovery Mode Accesses the Recovery Mode dialog to select between
having logic enabled or disabled following the restoration of
a configuration. The Recovery Mode is used in conjunction
with the Auto Device Replace Configuration Recovery
feature.
Logic Enable Selection
Mode Opens the Logic Enable Selection dialog box, where you can
indicate your preferred behavior for enabled logic running in
the device.
Function Description
