Using the LCD OIM 9-3
9.3 Display Description
Function Key (F1, F2, F3, F4) definitions
Port/peripheral identification. Identifies port or
peripheral on DPI about which the OIM is displaying
information. See section 9.6.
Direction indicator. Indicates actual motor direction.
Operating status (for example, Running, Stopped, etc.)
Alarm annunciation. = Alarm has occurred.
Auto/Manual mode status.
Write-protect password status:
(unlocked) = password disabled;
(locked) = password enabled. See section 11.4

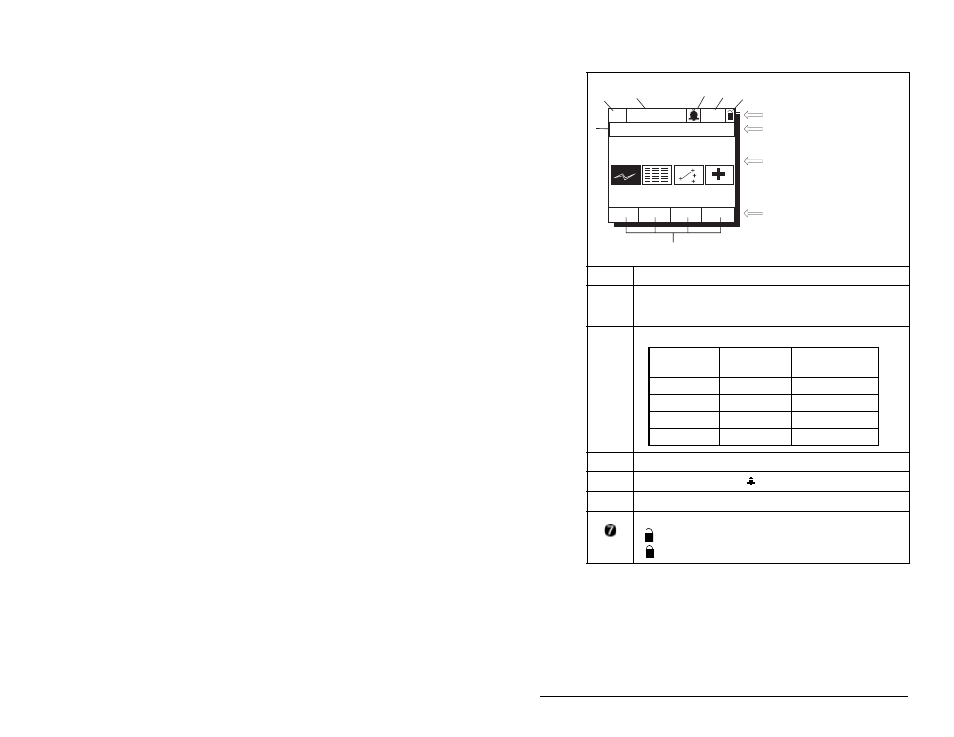

Figure 9.3 – The Display (Main Menu Shown)
P0: SP600
Auto Stopped
Main Menu
Start-Up
Operational Status Line
Device Selected/Error Text
Function Key Line Lang
>>
‚
—
˜
™ š › œ
Menu, Programming Screen, or
Process (User) Display
Command
Direction
Actual
Direction Indicator
Fwd Fwd >>
Rev Fwd >> (flashing)
Fwd Rev << (flashing)
Rev Rev <<
