Settings (Position 4):
OFF position = Auto-Restart Disabled (Default)
ON position = Auto-Restart Enabled
8.3.5 Torque Curve (Position 5)
The switch at position 5 selects either a variable torque curve or a constant torque
curve. The variable torque selection provides a squared V/Hz curve and 110%
electronic thermal overload and 110% current limit for one minute. The constant
torque selection provides a linear V/Hz curve and 150% electronic thermal overload
and 150% current limit for one minute.
Settings (Position 5):
OFF position = Variable Torque Curve (Default)
ON position = Constant Torque Curve
Table 8.1 – Auto Restartable Faults
Fault Code Description
Overcurrent
Overload
High bus voltage
Low bus voltage
Overtemperature

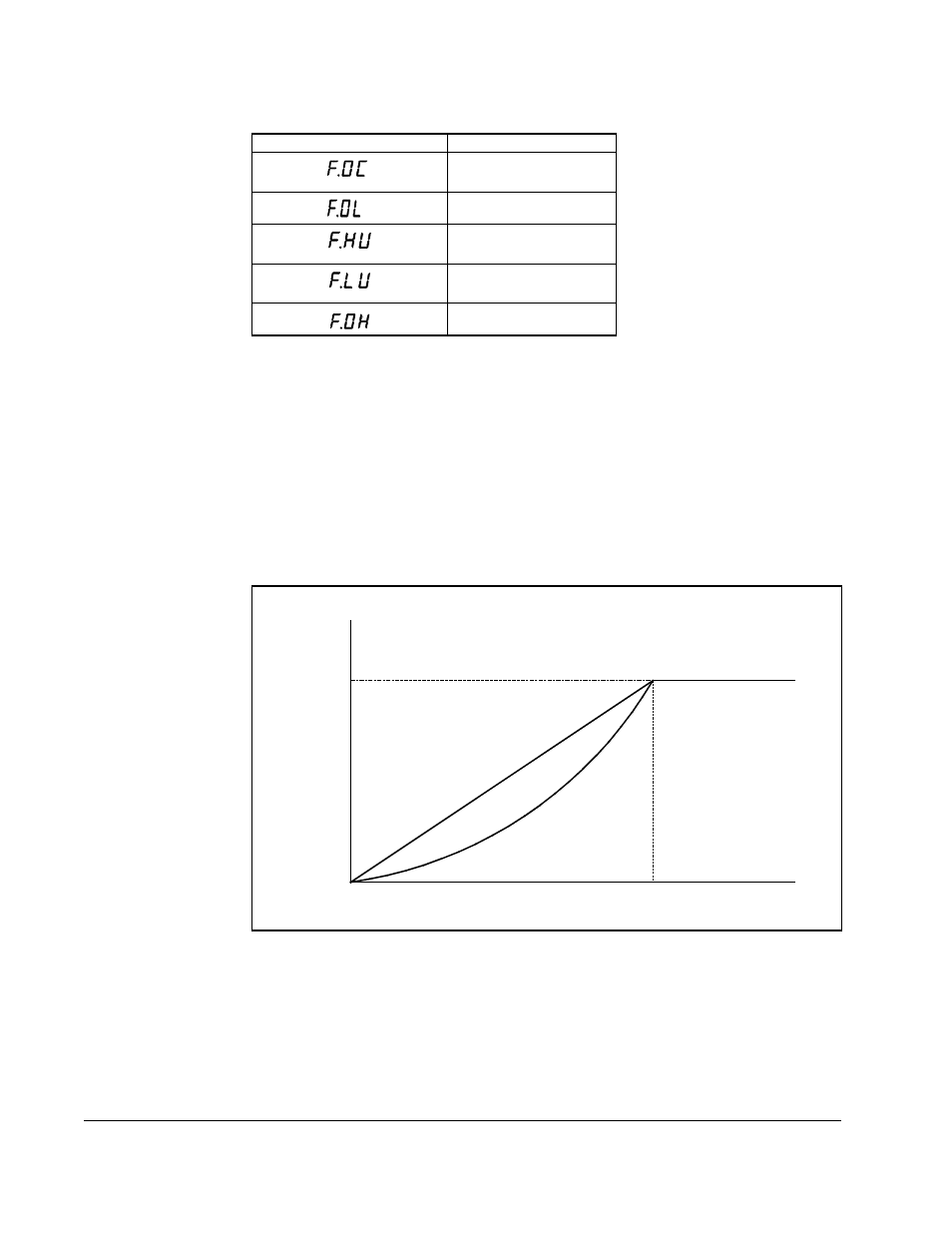

Figure 8.5 – Torque Curves
Base
Frequency
CT
VT
Hz
Output
Voltage
460 V
