7-2 Installing and Operating the VSM500 Integrated Drive/Motor, Version 3.0

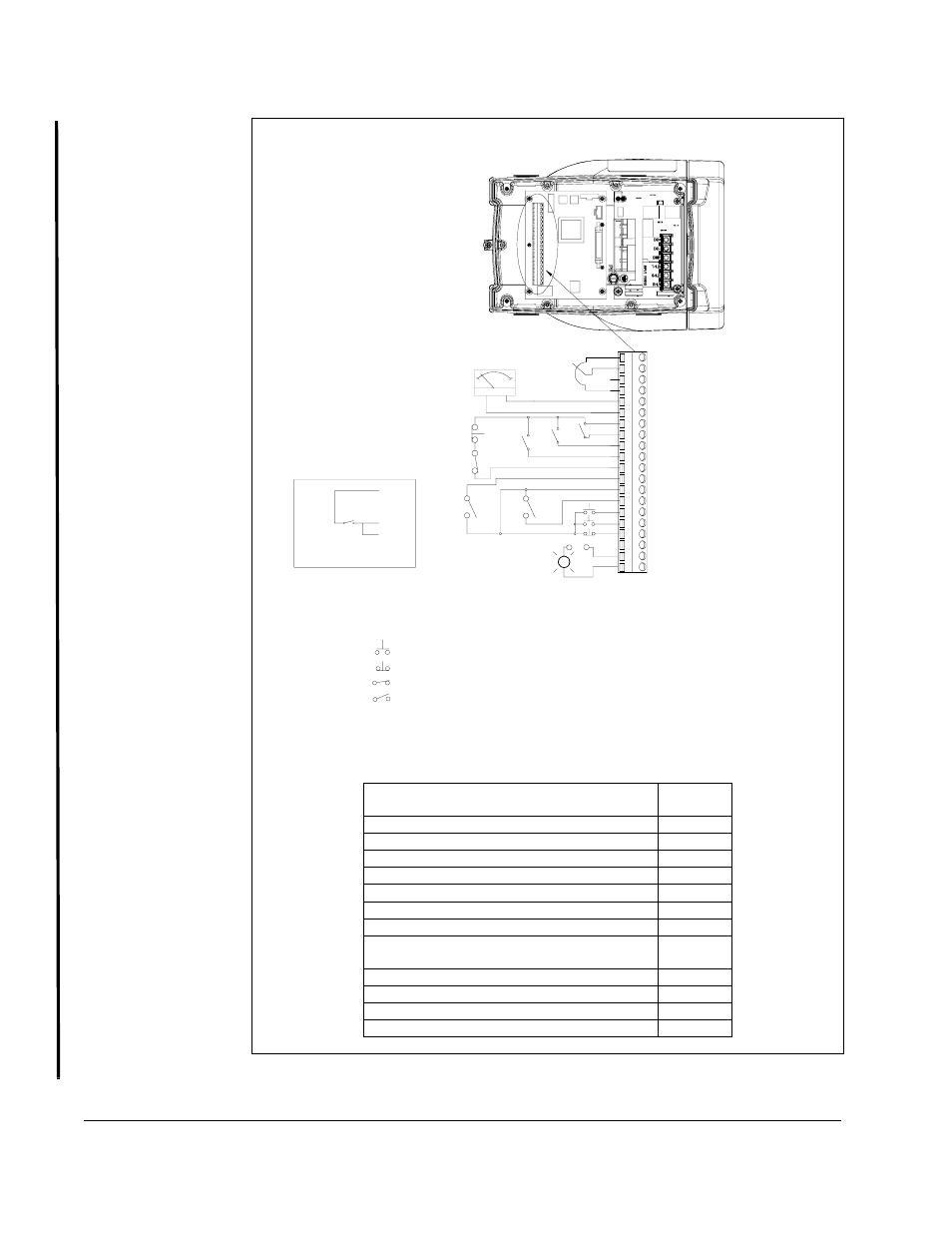

Figure 7.2 – Typical Control Signal Connections for Standard Units and Local Operator Control Units Set Up
for Terminal Block Control
User Wiring for Standard Units
Signal
Refer to
Section
Function Loss 7.1
Analog Output 7.2
Relay Control Output 7.3
RPM / %Load Display 7.4
Speed Reference (select one)
Preset Speeds 7.5.1
Speed Potentiometer 7.5.2
External Speed Reference
(0 to 10 VDC or 4 to 20 mA) 7.5.3
Start 7.6
Stop 7.6
Forward / Reverse 7.7
Reset 7.8
Drive Section with Cover Removed
Control Signal Terminal Block Connections
= N.C. Momentary Contact
= Maintained Contact - Closed
= Maintained Contact - Open
= N.O. Momentary Contact
1>
Start
Maintained 2-Wire
16
17
13
RPM
%LOAD
REV
FWD
+ 5K
2>
+10VDC
8 Speed Preset 2
20 Relay Common
11 Function Loss
12 RPM / %Load Display
13 24V DC
14 Forward/Reverse
18 24V DC Common
19 N.O. Relay
9 Speed Preset 1
10 Speed Preset 0
15 Reset
17 Stop
16 Start
3 4 to 20 mA Speed Reference Input
2 0 to 10V Speed Reference Input
1 10 Volt Reference
4 Common
6 Common
7 24V DC
5 0 to 10V Output
Standard Unit
-
3>
1> The jumper between terminals 7 and 11
must be removed when wiring the Function
Loss input. See section 7.1 for more
information.
2> An external 0 to 10 volt or 40 to 20 mA speed
reference source can be connected. See
section 7.5.3 for more information.
3> Important: To stop the unit using the
terminal block inputs, the jumper between
terminals 13 and 17 must be removed when
wiring the Stop input. See section 7.6 for
more information.
