Rockwell Automation VSM500 Integrated Drive/Motor User Manual
Page 26
5-2
Installing and Operating the VSM500 Integrated Drive/Motor, Version 3.0
Use the following procedure to wire AC power to the unit. Grounding instructions are
provided in section 5.1.
Step 1. Remove the cover by loosening the four cover screws. Note that the display
ribbon cable is designed to disconnect from the main unit when the cover is
removed as shown in figure 5.1.
Step 2. For three-phase input: Connect the incoming three-phase AC line to
terminals R, S, and T, as shown in figure 5.2.
For single-phase input: Connect the incoming single-phase AC line to any
two of the terminals R, S, T shown in figure 5.2.

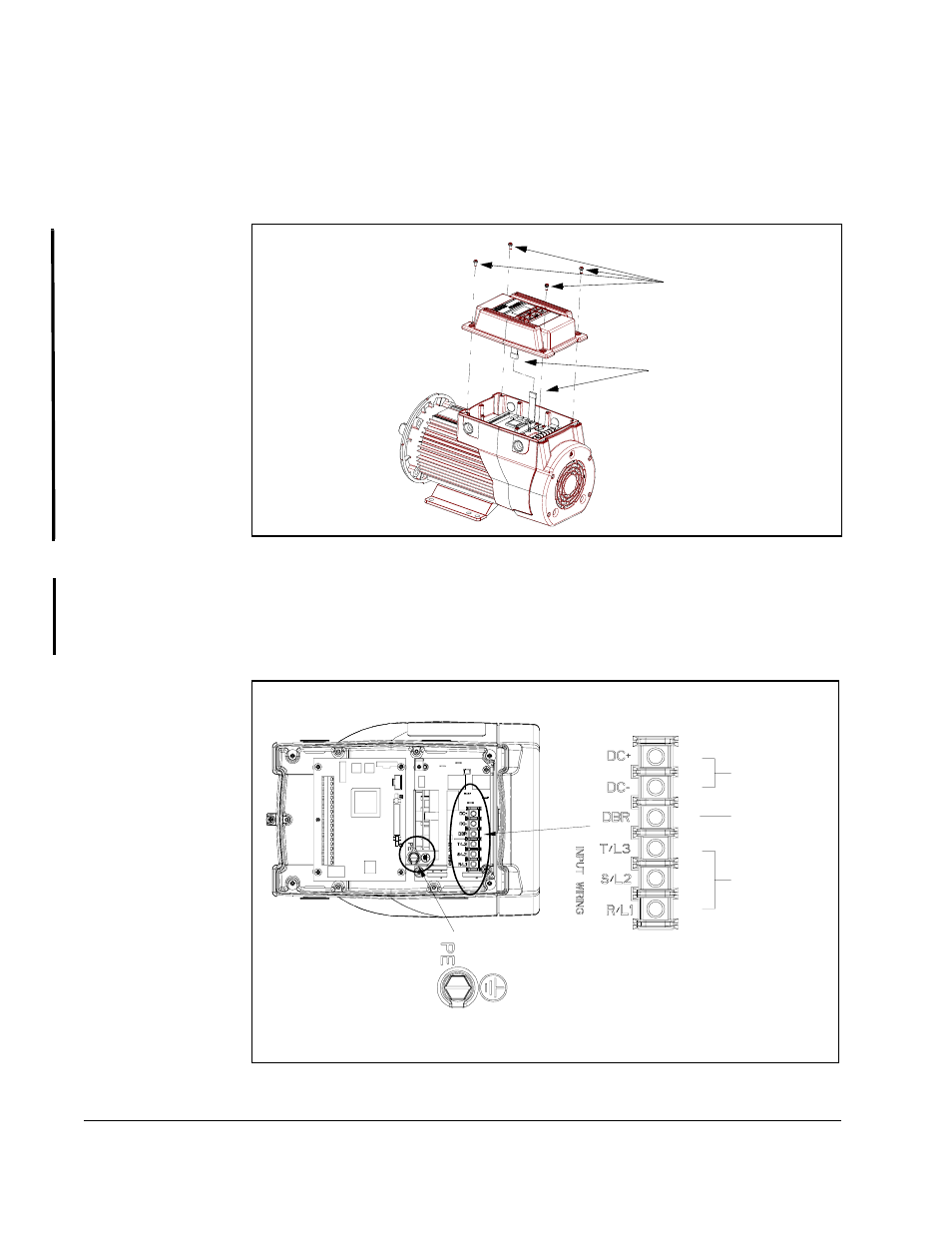

Figure 5.1 – Removing the Cover
Figure 5.2 – AC Input Power Connections
Cover Screws (4)
Display Board
Ribbon Cable Connector
AC Inputs
[Not Used]
Drive Section with Cover Off
DC Bus
Ground
AC Input Terminal Block
