1 wire routing guidelines – Rockwell Automation VSM500 Integrated Drive/Motor User Manual
Page 19
Step 2 - Plan the Installation
2-3
2.1
Wire Routing Guidelines
The VSM500 unit is shipped from the factory with plastic conduit plugs installed.
These plugs must be removed. Before wiring, replace these plugs with appropriate
3/4-inch NPT connectors having a similar enclosure rating. After wiring, seal unused
routing holes using permanent, user-supplied 3/4-inch NPT plugs. Seal all threaded
connections. Route the power and control wiring as shown in figure 2.3.

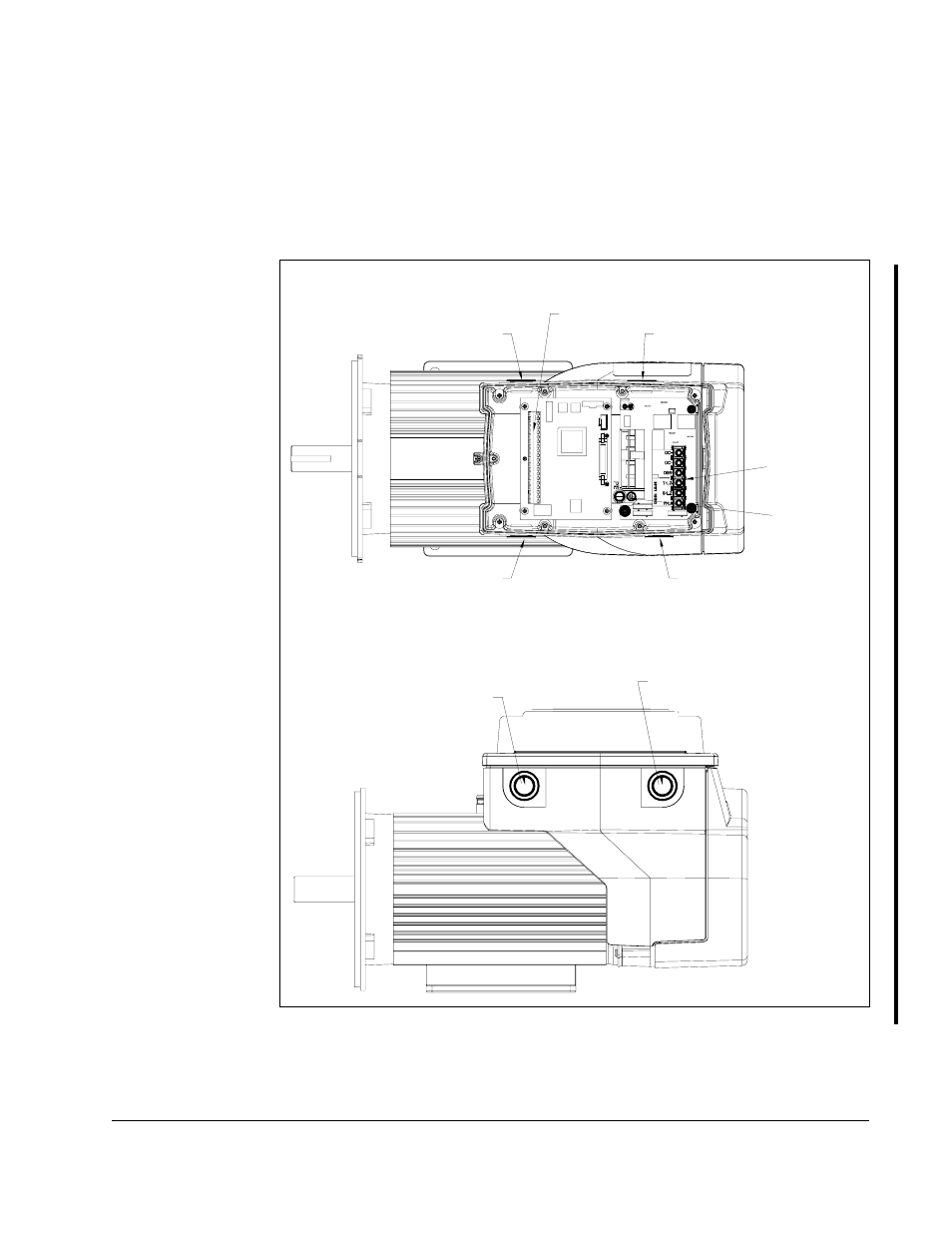

Figure 2.3 – Wire Routing Locations
Control Signal
Terminal Block
AC Input Power
Control Signal
AC Input Power
Wiring
Wiring
Top View
Side View
Ground
Control Signal
Wiring
Control Signal
Wiring
AC Input Power
Wiring
AC Input Power
Wiring
Terminal Block
