Troubleshooting the Drive 12-25
12.8.2 Accessing the Fault Parameters
The LCD OIM provides quick access to the drive’s fault parameters
by grouping them in the Fault Info submenu. To access these
parameters, see figure 12.7.
12.8.3 Accessing the Drive Status Parameters
The LCD OIM provides quick access to the drive status parameters
by grouping them in the Status Info submenu. To access these
parameters, see figure 12.8.

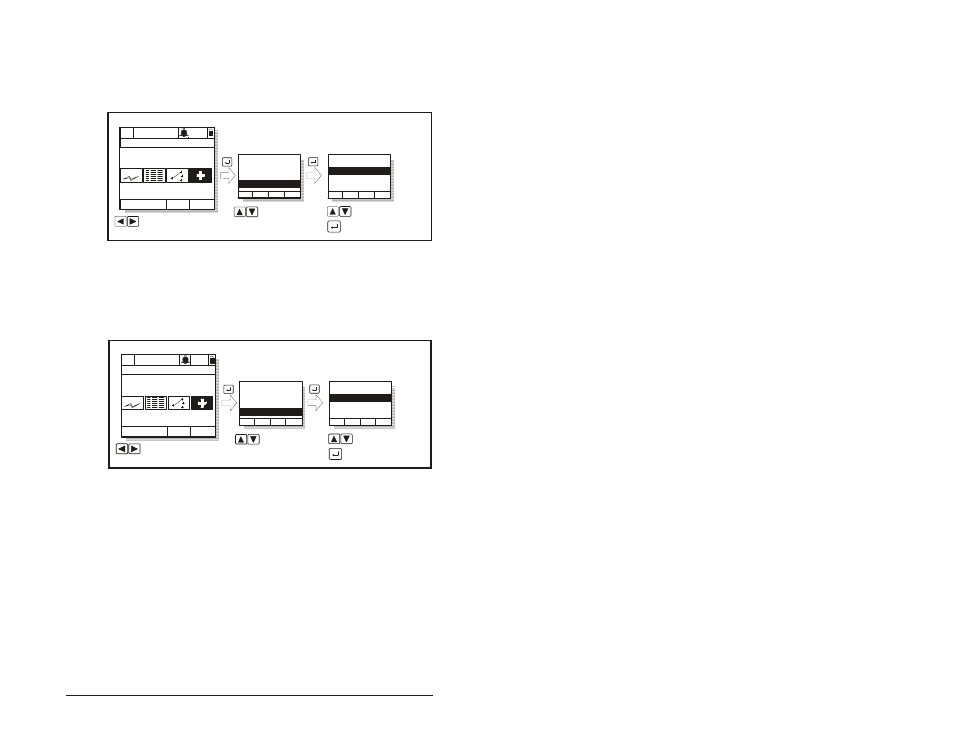

Figure 12.7 – Accessing the Fault Parameters
Diagnostics:
Fault Info
Device Version
P0: SP600
Stopped Auto
Main Menu
Diagnostics
OIM Version
Diag: Fault Info
Status1@Fault
Alarm1@Fault
Status2@Fault
Highlight parameter
Select
Highlight item
Highlight Diagnostics icon
Monitor Lang
Figure 12.8 – Accessing the Drive Status Parameters
Diagnostics
:
Status Info
OIM Version
Lang
P0: SP600
Stopped Auto
Main Menu
Diagnostics
Fault Info
Diag: Status Info
Drive Status1
Drive Alarm1
Drive Status2
Highlight parameter
Select
Highlight item
Highlight Diagnostics icon
Monitor
