Parameter Descriptions 11-27
Specifies if Ref A speed reference is to be trimmed.
Scales the upper value of the Trim In Select (117) selection when
the source is an analog input. This parameter should be set in
conjunction with parameter 322 or 325.
Scales the lower value of the Trim In Select (117) selection when
the source is an analog input. This parameter should be set in
conjunction with parameter 323 or 326.
118 Trim Out Select
Range: See figure 11.9
Default: See figure 11.9
Access: 2 Path: Speed Command>Speed Trim
See also: 117, 119, 120

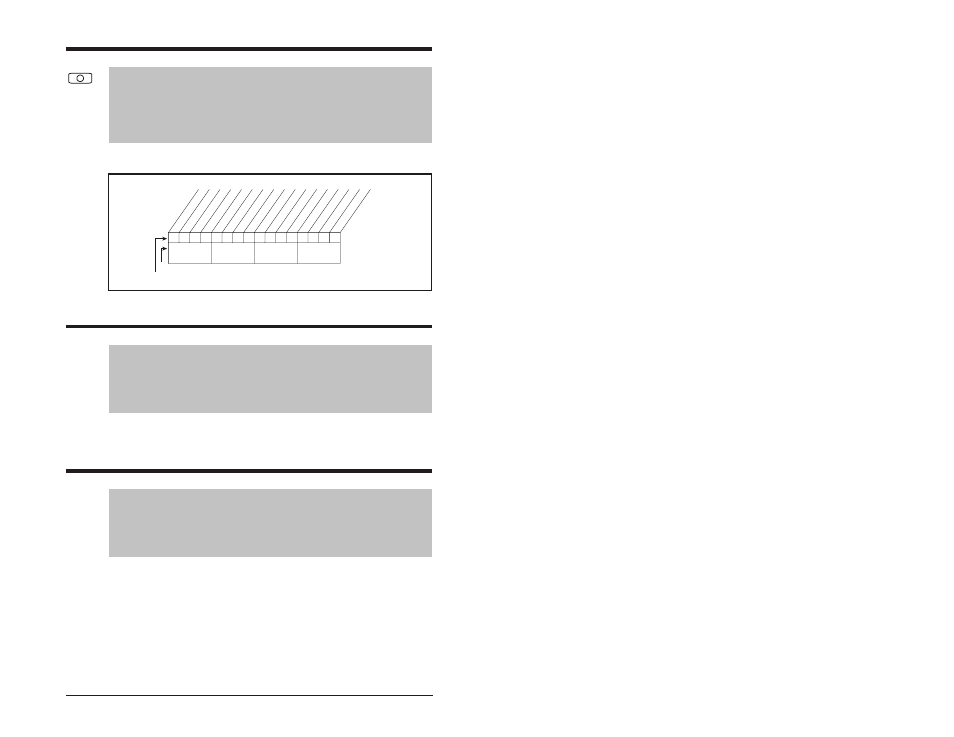

Figure 11.9 – Trim Out Select (118)
x x x 0 x x x x x x x x x x x x
10 0 1 2 3 4 5 6 7 8 9 11 12 13 14 15
1 =Trimmed
0 =Not Trimmed
x =Reserved
Bit #
Factory Default Bit Values
Tr
im Ref A
Nibble 1 Nibble 2 Nibble 3 Nibble 4
119 Trim Hi
Range: -/+ Maximum Speed [0.1 Hz]
Default: 60.0 Hz
Access: 2 Path: Speed Command>Speed Trim
See also: 82, 117, 322, 324
120 Trim Lo
Range: -/+ Maximum Speed [0.1 Hz]
Default: 0.0 Hz
Access: 2 Path: Speed Command>Speed Trim
See also: 117, 323, 325
