Publication 1794-UM064B-EN-P - May 2014
Communicate With Your Module 59

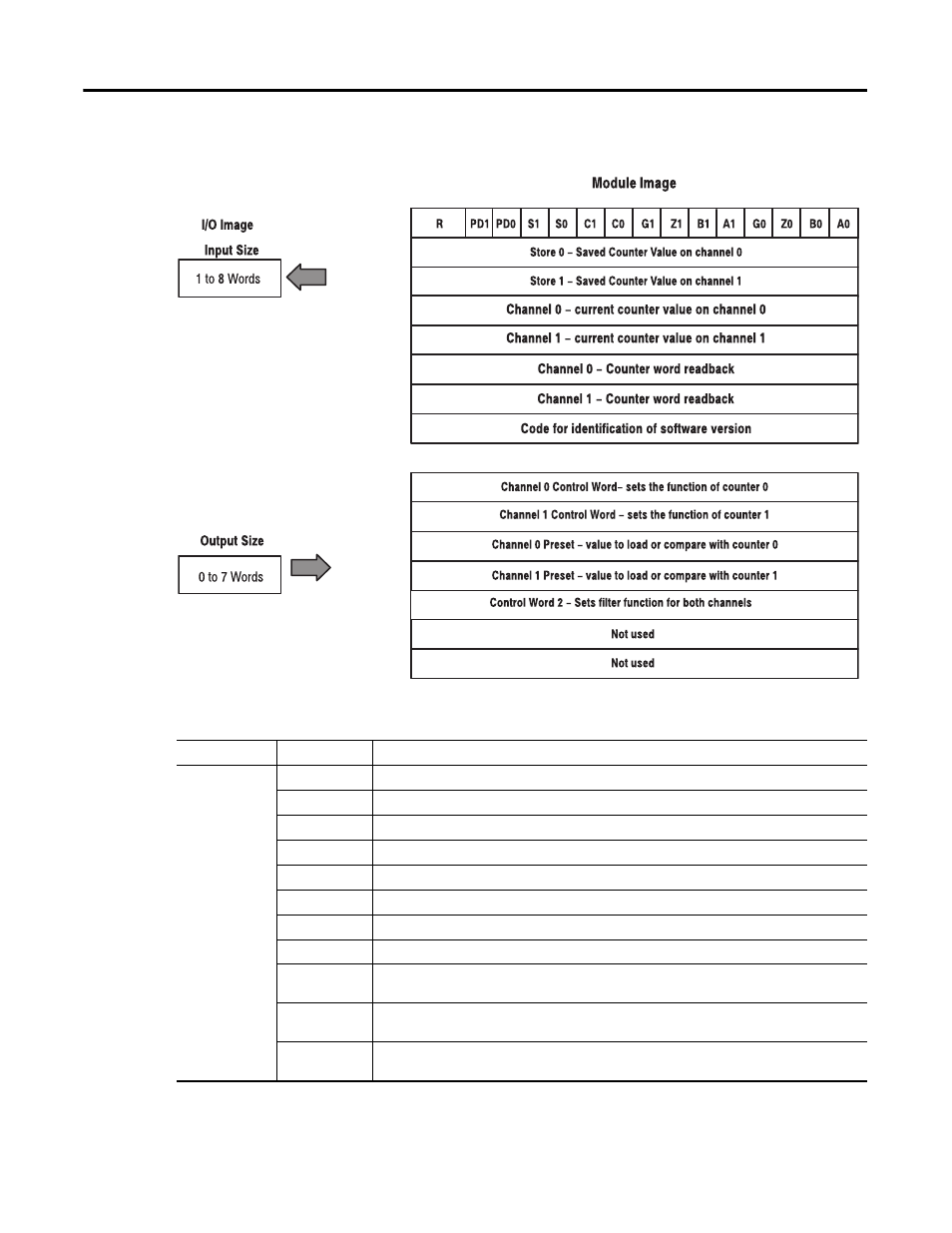

1794-ID2 – Incremental Encoder Module Image Table Mapping
1794-ID2 Pulse Counter Module Word/Bit Definitions for Block Transfer Read Words
Word Bit Definition
Read Word 0 Bit 00 Ch 0 Input A – (pulse transmitter 0) – This bit, when set, indicates a signal at A.
Bit 01 Ch 0 Input B – (pulse transmitter 0) – This bit, when set, indicates a signal at B.
Bit 02 Ch 0 Input Z – (pulse transmitter 0) – This bit, when set, indicates a signal at Z.
Bit 03 Ch 0 Input G – (pulse transmitter 0) – This bit, when set, indicates a signal at G.
Bit 04 Ch 1 Input A – (pulse transmitter 1) – This bit, when set, indicates a signal at A.
Bit 05 Ch 1 Input B – (pulse transmitter 1) – This bit, when set, indicates a signal at B.
Bit 06 Ch 1 Input Z – (pulse transmitter 1) – This bit, when set, indicates a signal at Z.
Bit 07 Ch 1 Input G – (pulse transmitter 1) – This bit, when set, indicates a signal at G.
Bit 08 (10) Calibrated 0 – This bit, when set (1), indicates that the counter 0 has been calibrated. This bit
is reset by CalReset.
Bit 09 (11) Calibrated 1 – This bit, when set (1), indicates that the counter 1 has been calibrated. This bit
is reset by CalReset.
Bit 10 (12) Ch 0 Counter Stored – This bit, when set (1), indicates a counter value is saved in store 0. This
bit is reset by StoreReset.
