Rockwell Automation 1794-APBDPV1 FLEX I/O PROFIBUS Adapter User Manual User Manual
Page 65
Publication 1794-UM064B-EN-P - May 2014
Communicate With Your Module 53

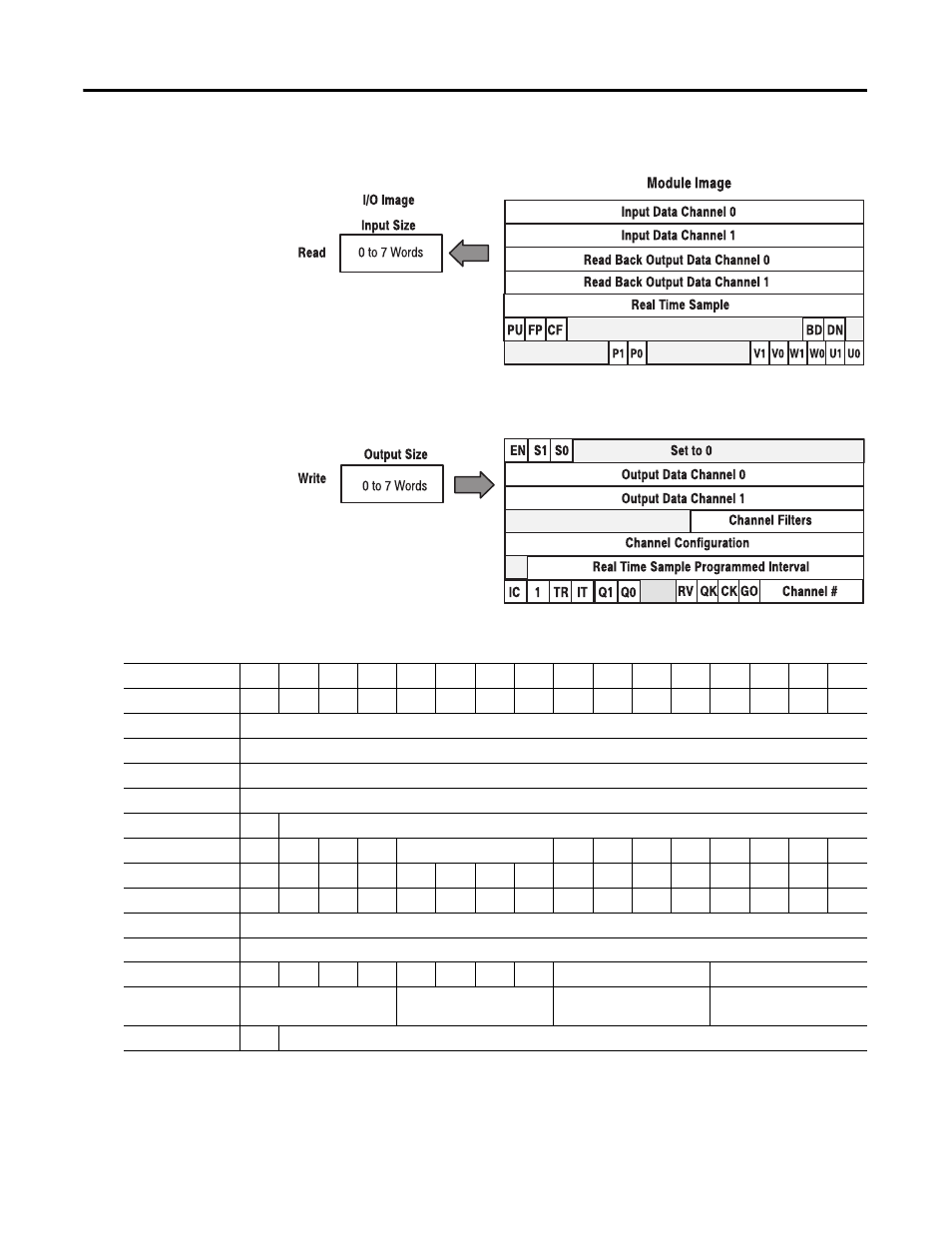

1794-IF2XOF2I Series B – Isolated Analog Combo Module Image Table Mapping
1794-IF2XOF2I – Isolated Analog Combo Module Read Words
Word/Dec. Bit
15
14
13
12
11
10
09
08
07
06
05
04
03
02
01
00
Word/Octal Bit
17
16
15
14
13
12
11
10
07
06
05
04
03
02
01
00
Read Word 0
Input Data Channel 0
Read Word 1
Input Data Channel 1
Read Word 2
Read Back Channel 0
Read Word 3
Read Back Channel 1
Read Word 4
0
Real Time Sample
Read Word 5
PU
FP
CF
0
Reserved
0
0
0
0
0
BD
DN
0
Read Word 6
0
0
0
0
P1
P0
0
0
0
0
V1
V0
W1
W0
U1
U0
Write Word 0
EN
S1
S0
0
0
0
0
0
0
0
0
0
0
0
0
0
Write Word 1
Output Data – Channel 0
Write Word 2
Output Data – Channel 1
Write Word 3
0
0
0
0
0
0
0
0
Input Channel 1 Filter
Input Channel 0 Filter
Write Word 4
Output Channel 1
Configuration
Output Channel 0
Configuration
Input Channel 1
Configuration
Input Channel 0
Configuration
Write Word 5
0
Real Time Sample Programmed Interval
1149
