Chapter 9
Printing Messages
9–15
If the selected file doesn’t contain any messages, the page header prints with
the name of the file and the number of available messages.

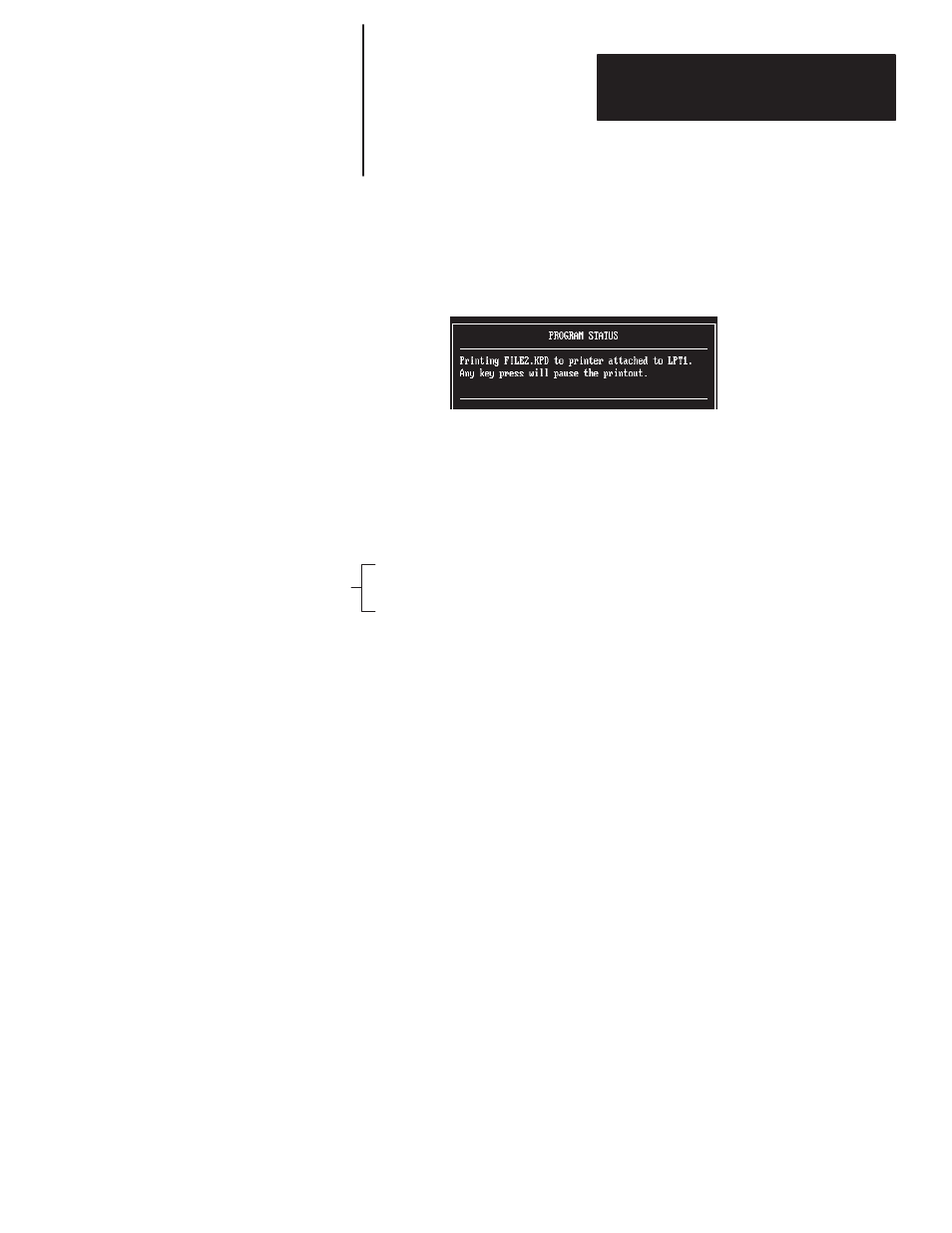

If there are messages in the file, this message displays indicating that the
selected file of messages is printing.
The messages print single spaced unless you modified the Blank Lines
parameter to insert blank lines between each message. A sample printout
looks like this:
KEYPAD MODULE FILE: FILE2 08/30/91 PAGE 1
MODIFIED: 08/08/91
MESSAGES FREE: 114
MSG #: 001 BLINK:N UPLOAD PALLET
MSG #: 002 BLINK:N PUMP 1 ON
MSG #: 003 BLINK:N SUMP OVERFLOW
MSG #: 004 BLINK:N CYCLE COMPLETE
MSG #: 005 BLINK:N HIGH TEMP ALARM
MSG #: 007 BLINK:N LOW OIL PRESSURE
Page Header
Sample Printout
The page header includes:
•
name of message file
•
data of last file modification
•
number of free (available) messages
•
current date and page number
For each message the printout displays:
•
message number
•
message text
•
whether the message was created with blinking enabled
