Overview of Drive 1-11
7000 “A” Frame 7000A-RM001A-EN-P – January 2011
Control Overview
Line
Converter
Feedback
Line
Converter
Protection
(HW)
Line gating
and
diagnostic
feedback
Line
Converter
Protection
Line
Side
Control
Machine
Side
Control
Line Converter
Faults
Line
Synch
Current
Control
Li
ne conv
erte
r f
iri
ng an
gl
e
Idc ref.
Ref.
Current and
phase shift
calculator
Flux
Control Mag.Current
command
Torque current command
Speed
Control Torque
Speed Feedback
Machine
Converter
Protection
(SW)
Motor
Model
Synch.
Transfer
Skip Speed
and Speed
Ramp
Speed
Command
Speed Ref.
Tac
h. Feedback
Motor
Machine
Converter
Protection
(HW)
Machine
Converter
Feedback
Machine
gating and
diagnostic
feedback
Faults
Motor fil. Cap.
Machine Converter
DC Link
Inductor
M
achi
ne conv
er
te
r
fi
ring angle
S
ync
. angl
e
Faults
Flux

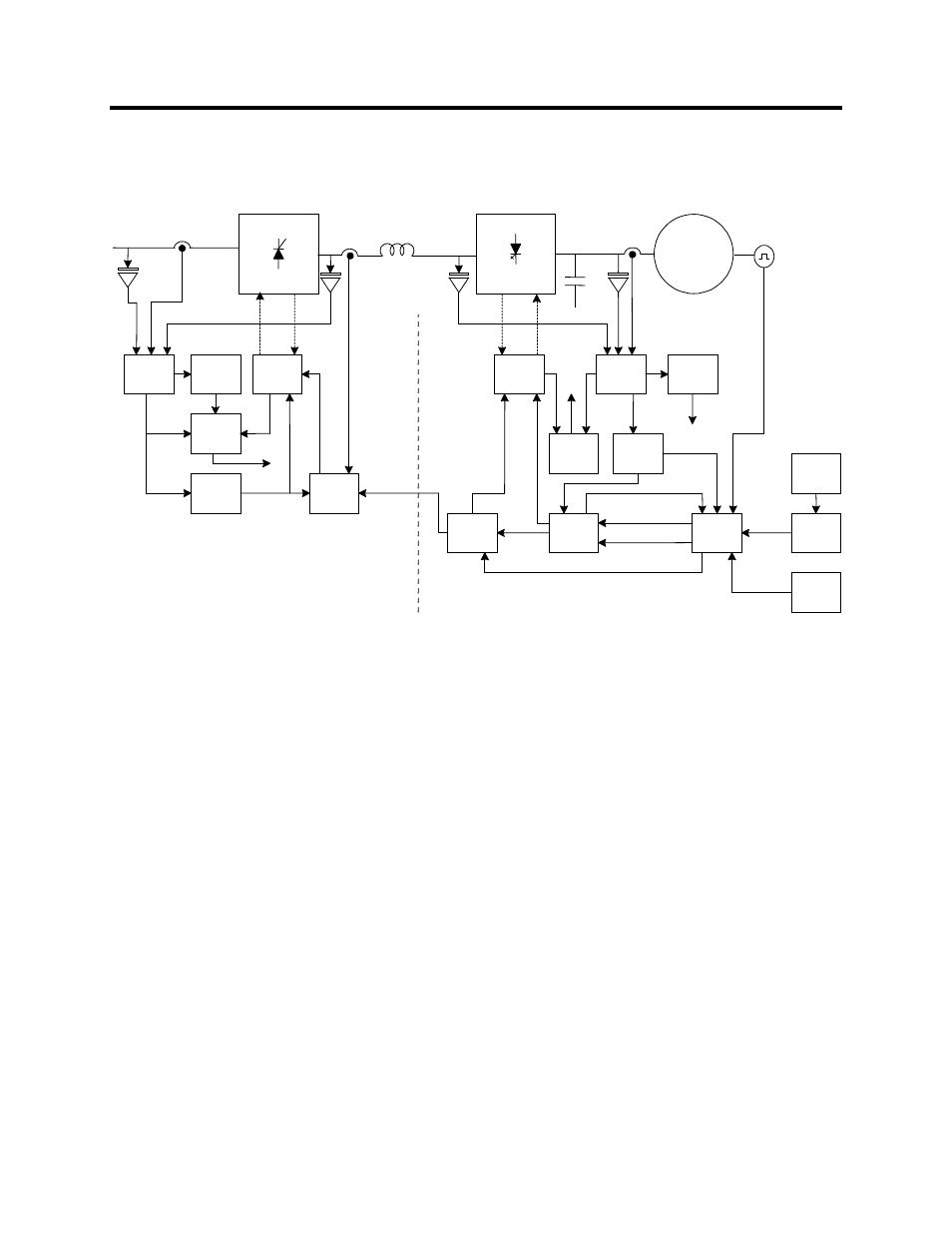

Figure 1.5– PowerFlex 7000 Function Block Diagram
Direct Vector Control The method of control in the PowerFlex 7000 medium voltage AC
drive is called sensorless direct vector control, meaning that the
stator current is divided into torque producing and flux producing
components, allowing the motor torque to be changed quickly
without affecting motor flux. This method of control is used without
tachometer feedback for applications requiring continuous operation
above 6 Hertz and less than 100% starting torque.
Full vector control can also be achieved with tachometer feedback
for applications requiring continuous operation down to 0.2 Hertz
with up to 150% starting torque. Vector control offers superior
performance over volts/hertz type drives. The speed bandwidth
range is 5-25 radians per second, while the torque bandwidth range is
15-50 radians per second.
