The condition is set to one of the conditions listed below by pressing
the [cursor up] or [cursor down] keys to scroll through the conditions.
Pressing [enter] ends the editing and accepts the shown condition.
Trigger
Conditions:
= Equal to
N= Not Equal to
> Greater than
< Less than
+ Boolean OR
N+ Boolean NOR
& Boolean AND
N& Boolean NAND
The value (data) is set through the use of the numerical keypad. Use
the data entry keys [0]-[9] to enter the new value. The [-] key can be
typed at any time to enter a negative value. The [.] key is used to
enter a decimal point for fractional values. The entered new value
can be edited by pressing the [backspace] key. This key will delete
the right most character (i.e. number, decimal point or negative sign)
shown on the screen. Press the [enter] key to accept the new value as
shown in Figure 3.82. If the new value that you entered is outside
the limits defined, the new value will be pegged at the closest limit.
For example: If you entered 900 when the minimum value was 1000,
the new value will show 1000.
Some data must be entered in HEX. To accomplish this, use the
cursor up/down keys to scroll through the values 0-F for the right
most digit. To accept the digit and enter to the right of the current
digit, press the right cursor key. Press the [Enter] key to accept the
value.
The value may be edited the same as a value entered from the
numeric keypad.

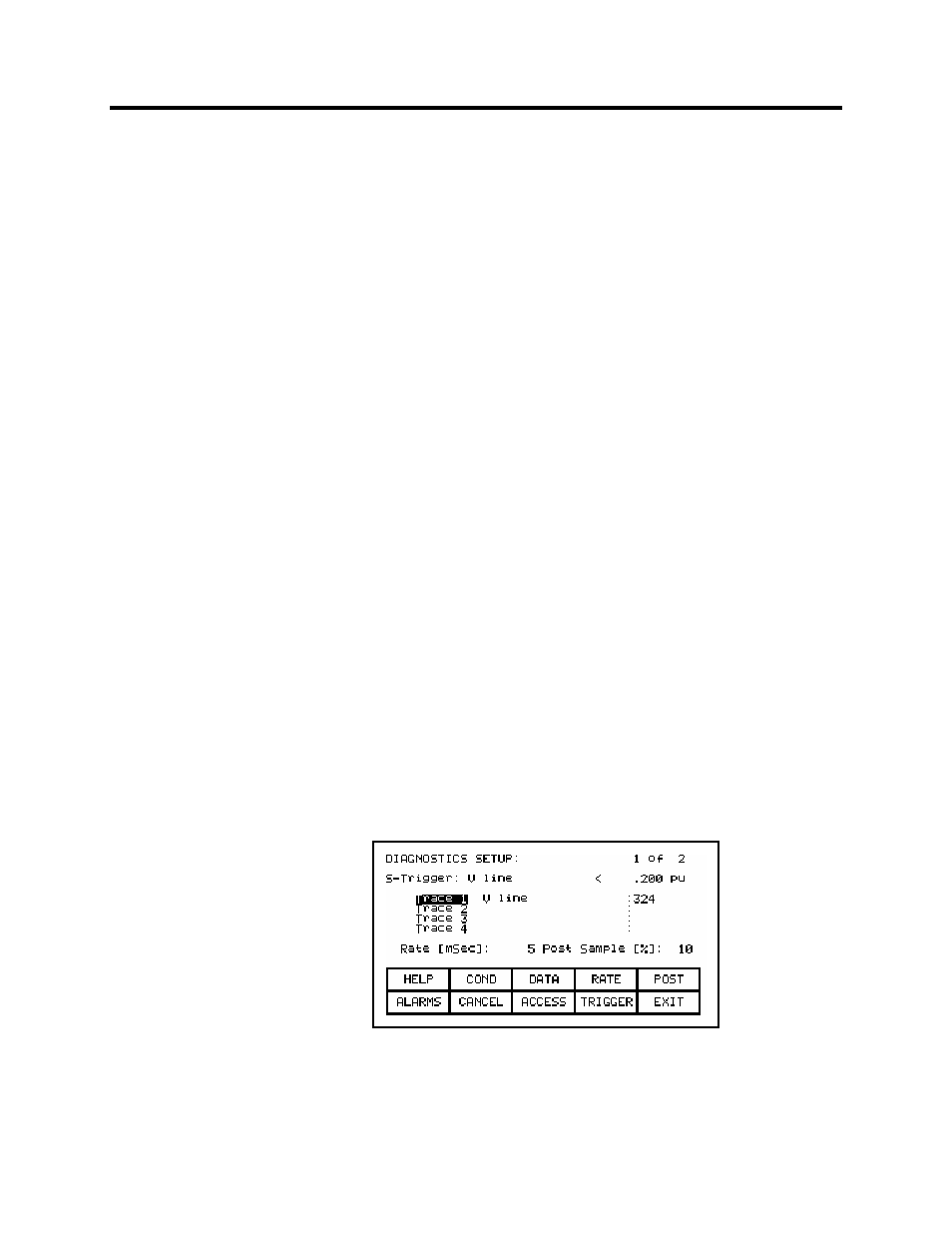

Figure 3.82 – Trigger Condition
