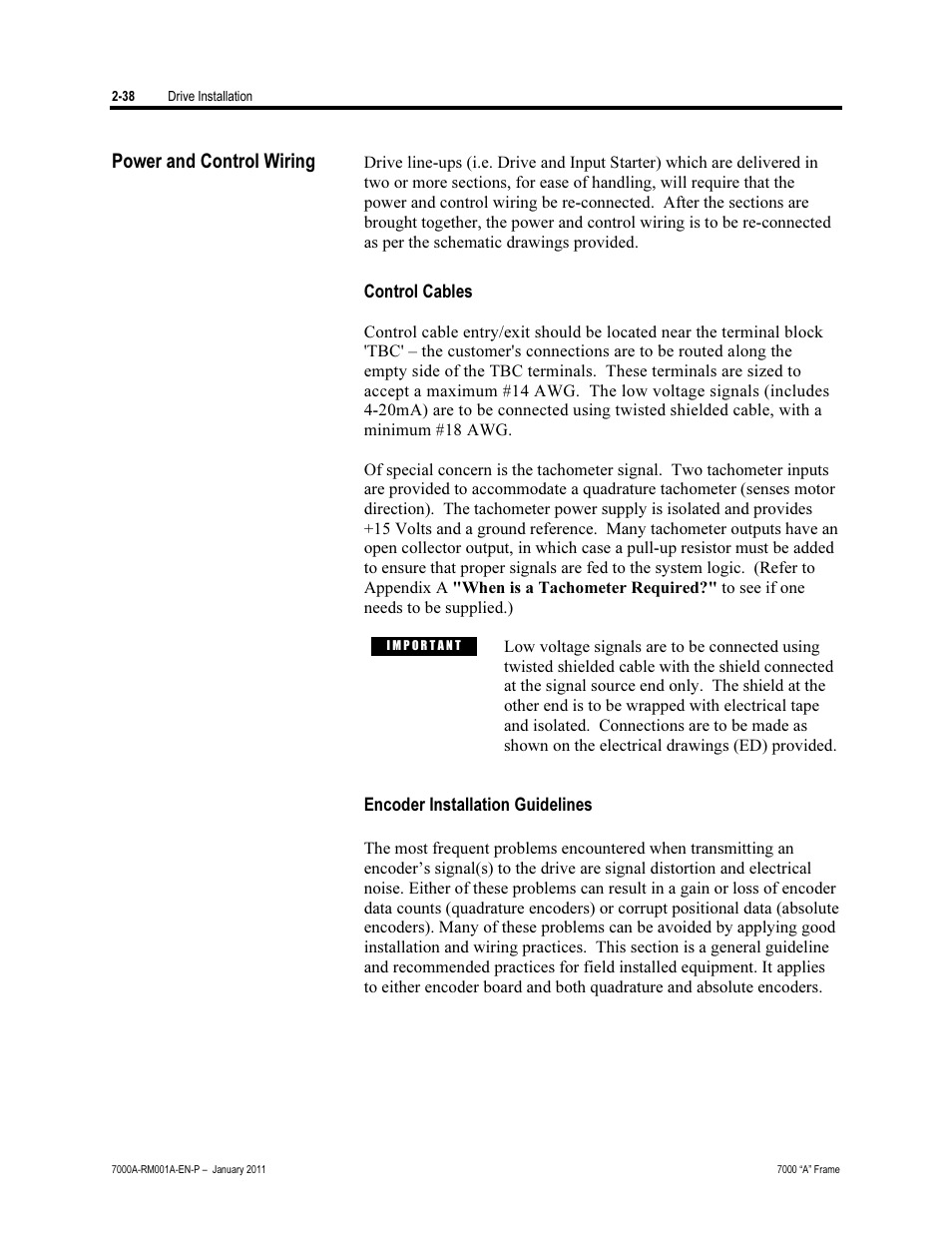

Power and control wiring, Control cables, Encoder installation guidelines – Rockwell Automation 7000A PowerFlex Medium Voltage AC Drive - Air-Cooled (A Frame) User Manual
Page 68
