Quadrature encoder operation, Tachometer feedback board (cont.) – Rockwell Automation 7000A PowerFlex Medium Voltage AC Drive - Air-Cooled (A Frame) User Manual

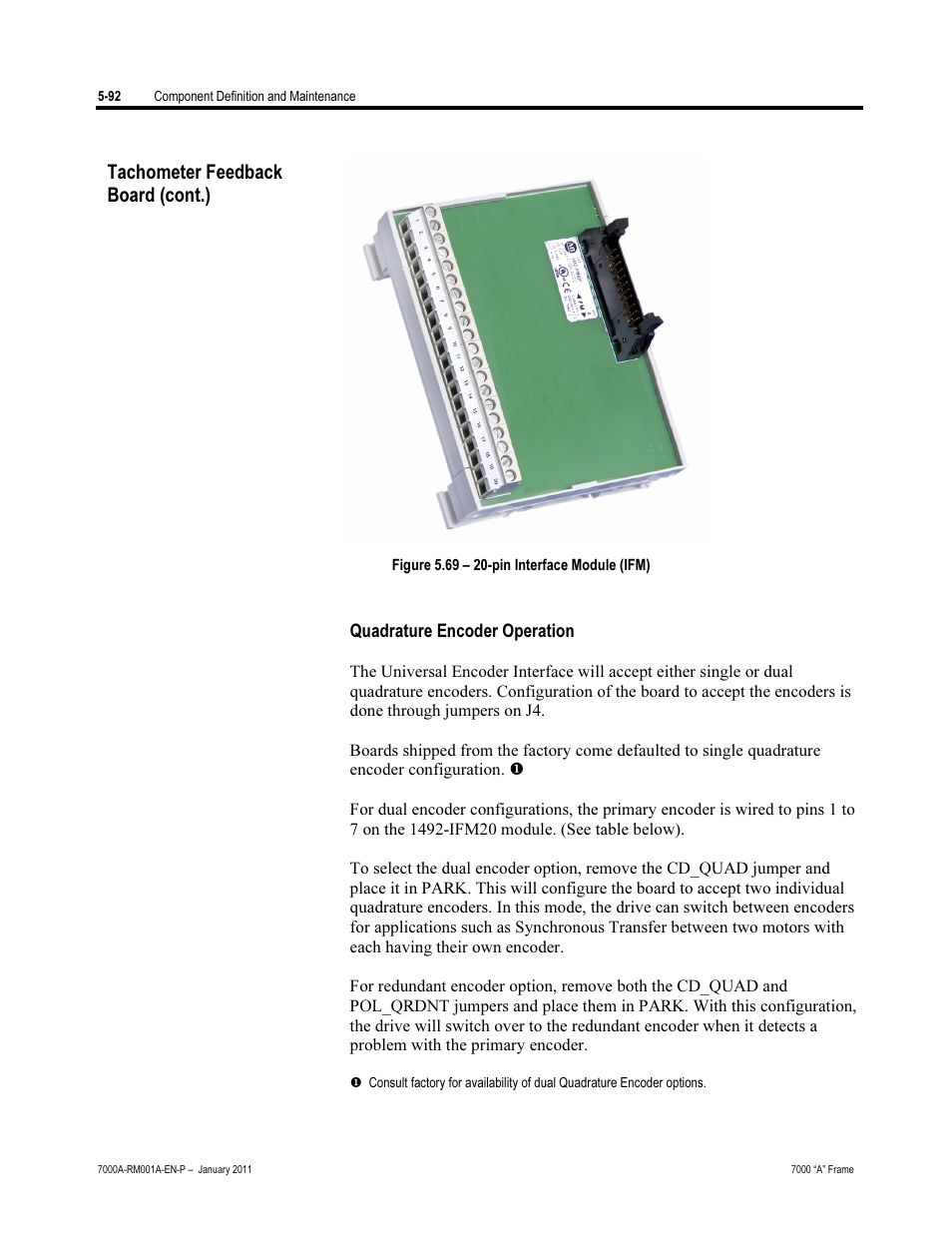

Page 334
