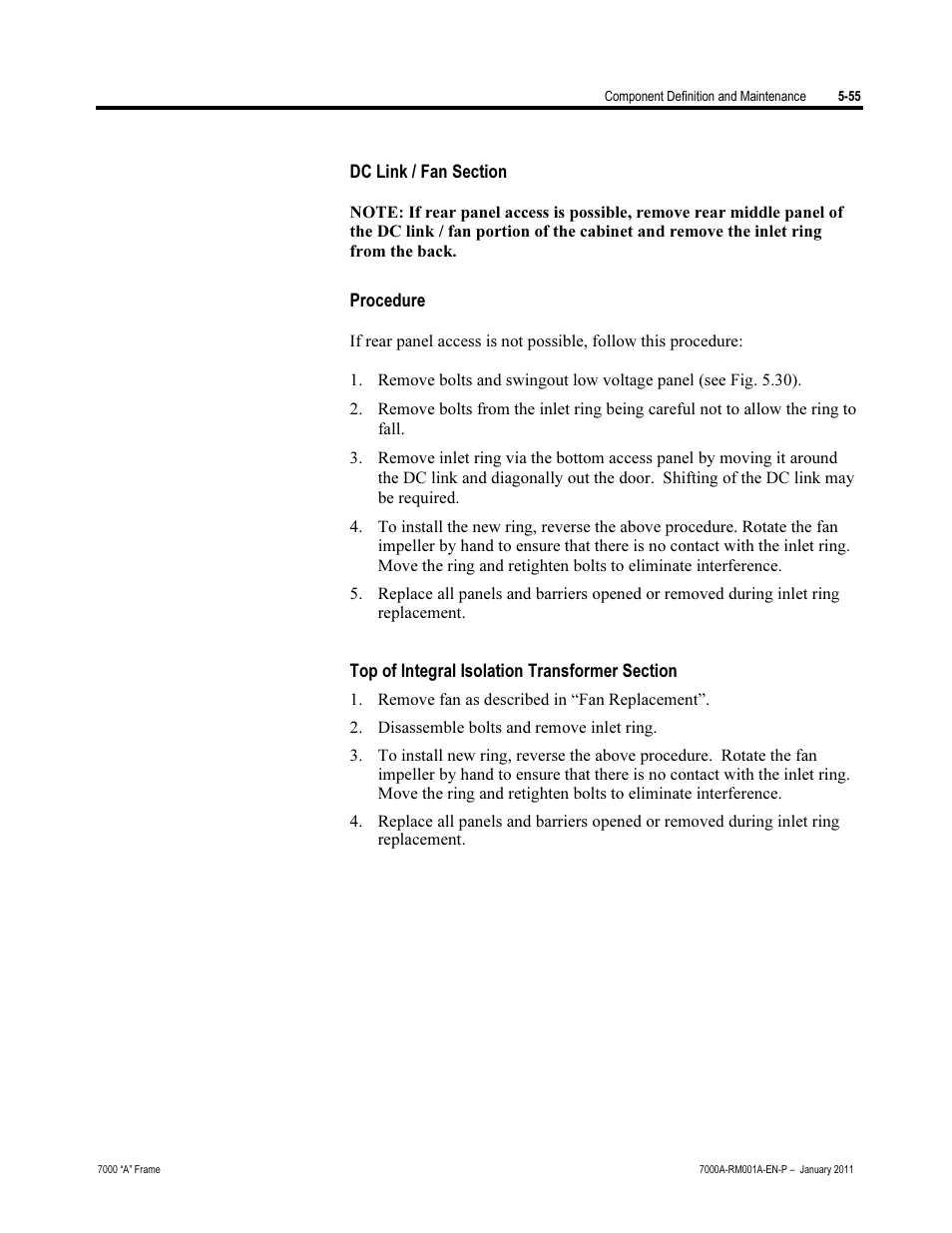

Dc link/fan section, Procedure, Top of integral isolation transformer section – Rockwell Automation 7000A PowerFlex Medium Voltage AC Drive - Air-Cooled (A Frame) User Manual
Page 297
