Computer on DeviceNet Network
You must have RSLinx version 2.O or newer to upload, download, or
edit controller programs directly over DeviceNet (using a 1770-KFD,
1784-PCD, 1784-PCID or equal).
1. Open RSLinx, and select Configure Drivers.
2. Select DeviceNet Driver from the list.
3. Click Add New.
4. Open your configuration software and make sure it recognizes
and is configured to use RSLinx DeviceNet driver.
5. In the configuration software’s communications section, select
the destination DNI that you want to connect to.

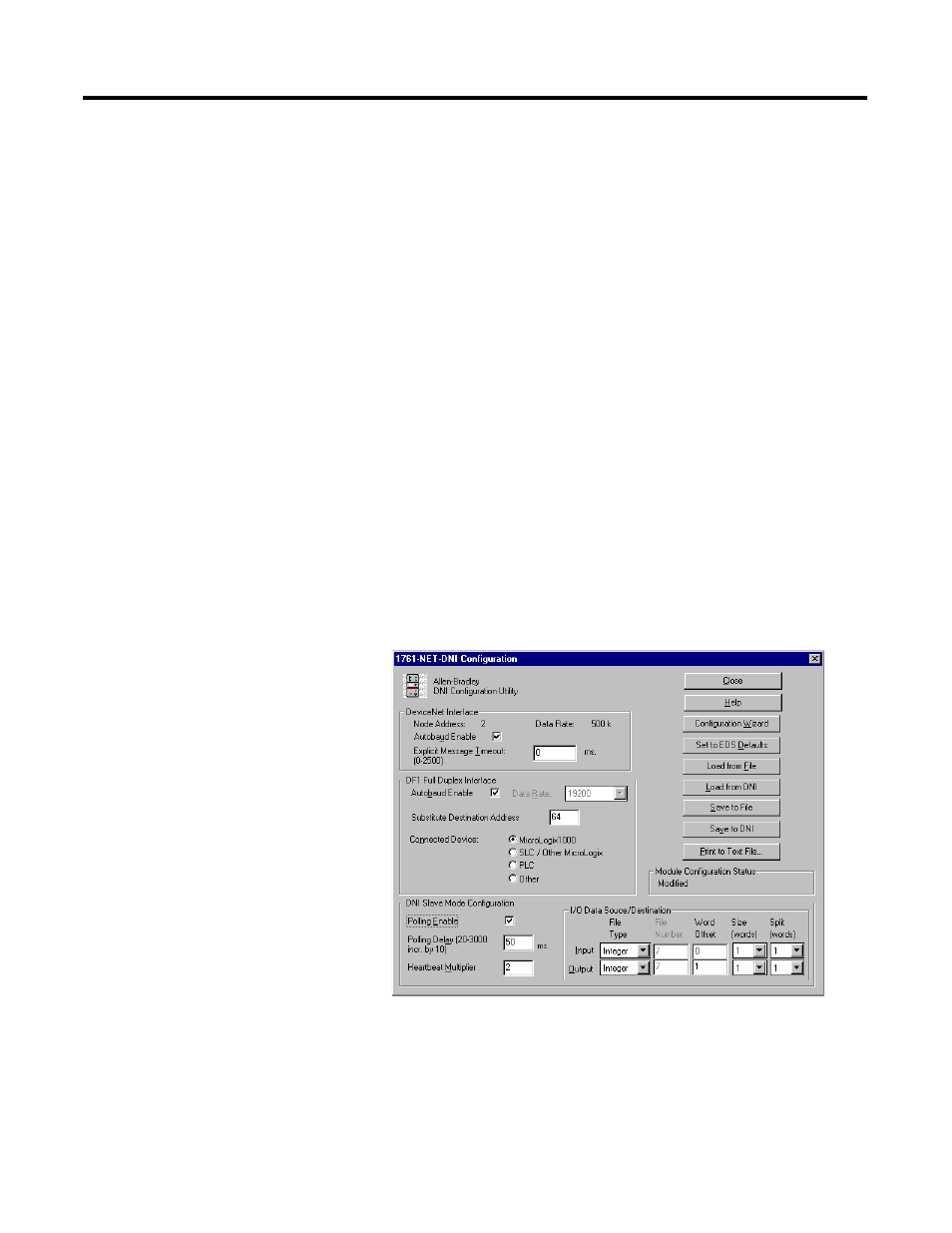

Modifying DNI Parameters
Use the main configuration to set or change any of the DNI
parameters. Disable Polling Enable while you are making changes.
When you are finishing, click Save to File and Save to DNI.
