Remote access to devicenet (modems) – Rockwell Automation 1761-NET-DNI DeviceNet Interface (DNI) User Manual
Page 22
Publication 1761-UM005B-EN-P - October 2006
22 Operation
Remote Access to DeviceNet (Modems)
If users need to dial into a DeviceNet network and have access to
controllers connected to DNIs, they can plug a DNI into a modem.
Now users can dial into the modem and have access to all
DNI/controllers from a remote site.

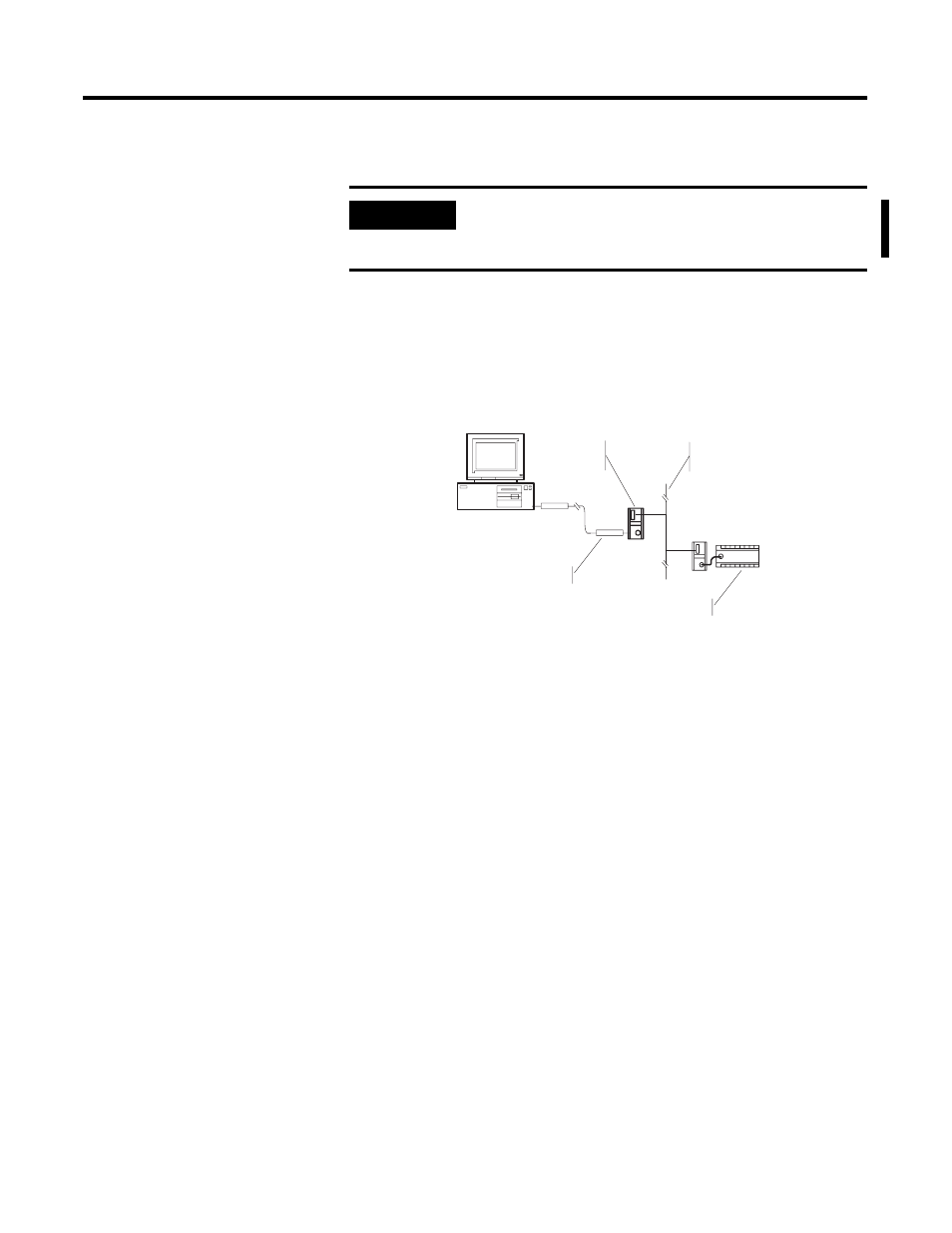

Remote Access to DeviceNet
IMPORTANT
Remote access to a DeviceNet network via the DNI is
available only with RSLogix 5/500-based controllers
such as PLC-5, SLC, and MicroLogix.
DNI Module
DeviceNet
Cable
PC
Modem
MicroLogix
Controller
