7. Click Modified Parameter, then OK.
8. Save to the configuration to the DNI.
In this configuration, the DNI provides two words (32 bits) of data.
The data is scanned (read), starting at address N7:90 of the attached
MicroLogix 1000 controller, at 100 msec intervals.
Data received (DeviceNet master output) is written to the MicroLogix
1000 controller whenever new (changed) data is detected by the DNI.
Two words of data will be written to Integer file 7, starting at word 95.
At this point, the DNI is configured to be a slave on DeviceNet, but it
is not part of (owned by) a DeviceNet master/scanner.
To configure your DeviceNet scanner, refer to its manual. For the
1747-SDN, refer to the SLC 500 DeviceNet Scanner user manual,
publication 1747-UM655. For the 1771-SDN, refer to the PLC-5
DeviceNet Scanner user manual, publication 1771-UM118.

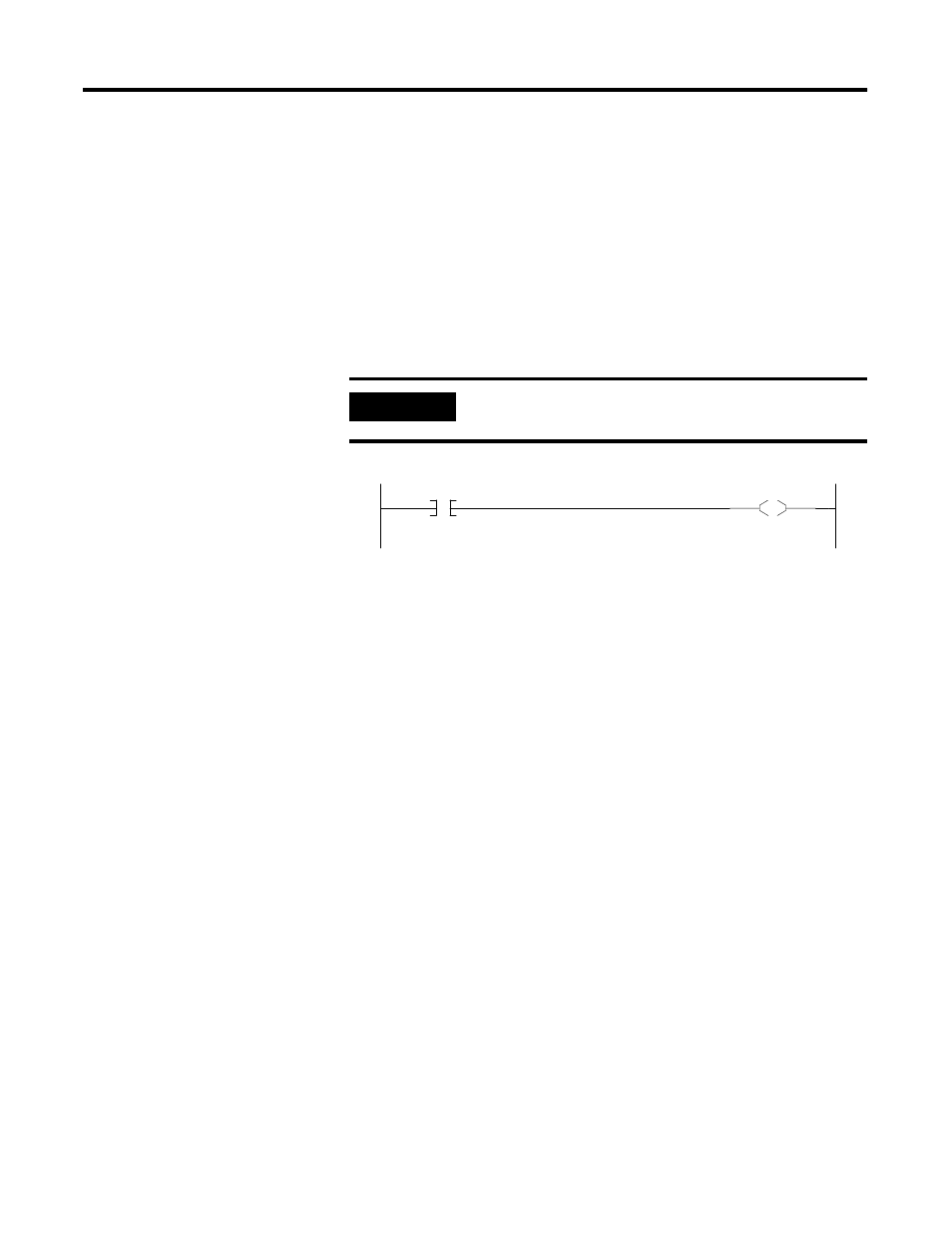

IMPORTANT
You must have the following rung programmed into the
MicroLogix 1000 controller:
N7:95
7
N7:90
7
