Programming over the devicenet network, Local access to a devicenet network – Rockwell Automation 1761-NET-DNI DeviceNet Interface (DNI) User Manual
Page 21
Publication 1761-UM005B-EN-P - October 2006
Operation 21
Programming Over the
DeviceNet Network

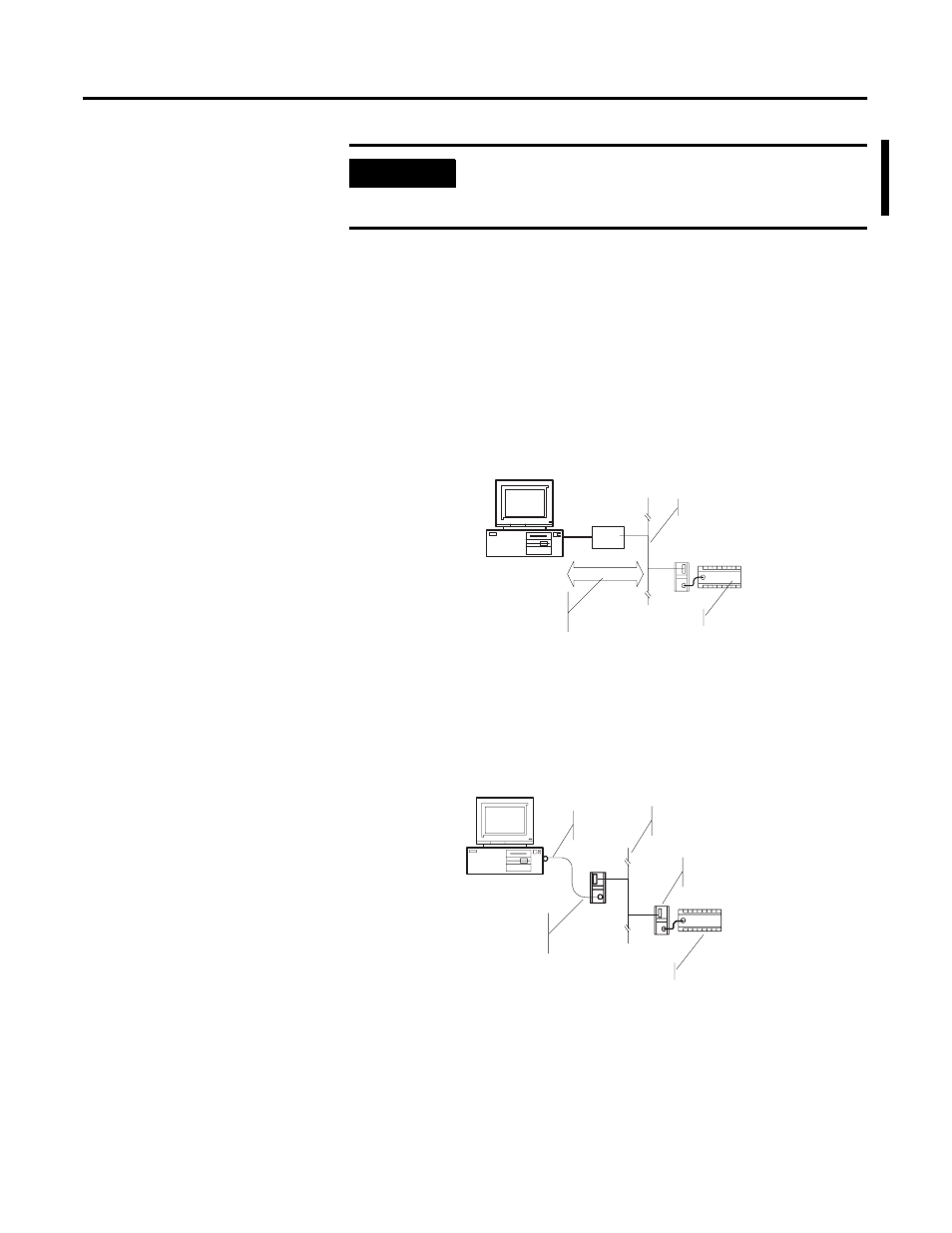

Local Access to a DeviceNet Network
PCCC/DF1 messaging allows programming devices to connect to a
DeviceNet network, and upload/download/monitor and even edit
programs if the controller attached to the destination DNI supports
that functionality. Rockwell Software RSLogix 500/RSLinx (version 2
and higher) users can connect directly to the DeviceNet network using
a KFD, PCD, or PCI interface.
You can also use a DNI connected to the computer’s RS-232 port to
upload/download to other controllers connected to DNIs on a
DeviceNet network.
RS-232 Port DeviceNet Connection
IMPORTANT
Programming over a DeviceNet network via the DNI
is available only with RSLogix 5/500-based
controllers such as PLC-5, SLC, and MicroLogix.
KFD
DeviceNet
Cable
MicroLogix
Controller
Upload/Download
Monitoring
DNI Configuration
PC
Upload/Download
Monitoring
DNI Configuration
MicroLogix
Controller
DeviceNet
Cable
DNI Module
RS-232
DF1
PC
