Page 73
Defining Add-On Instructions
Chapter 2

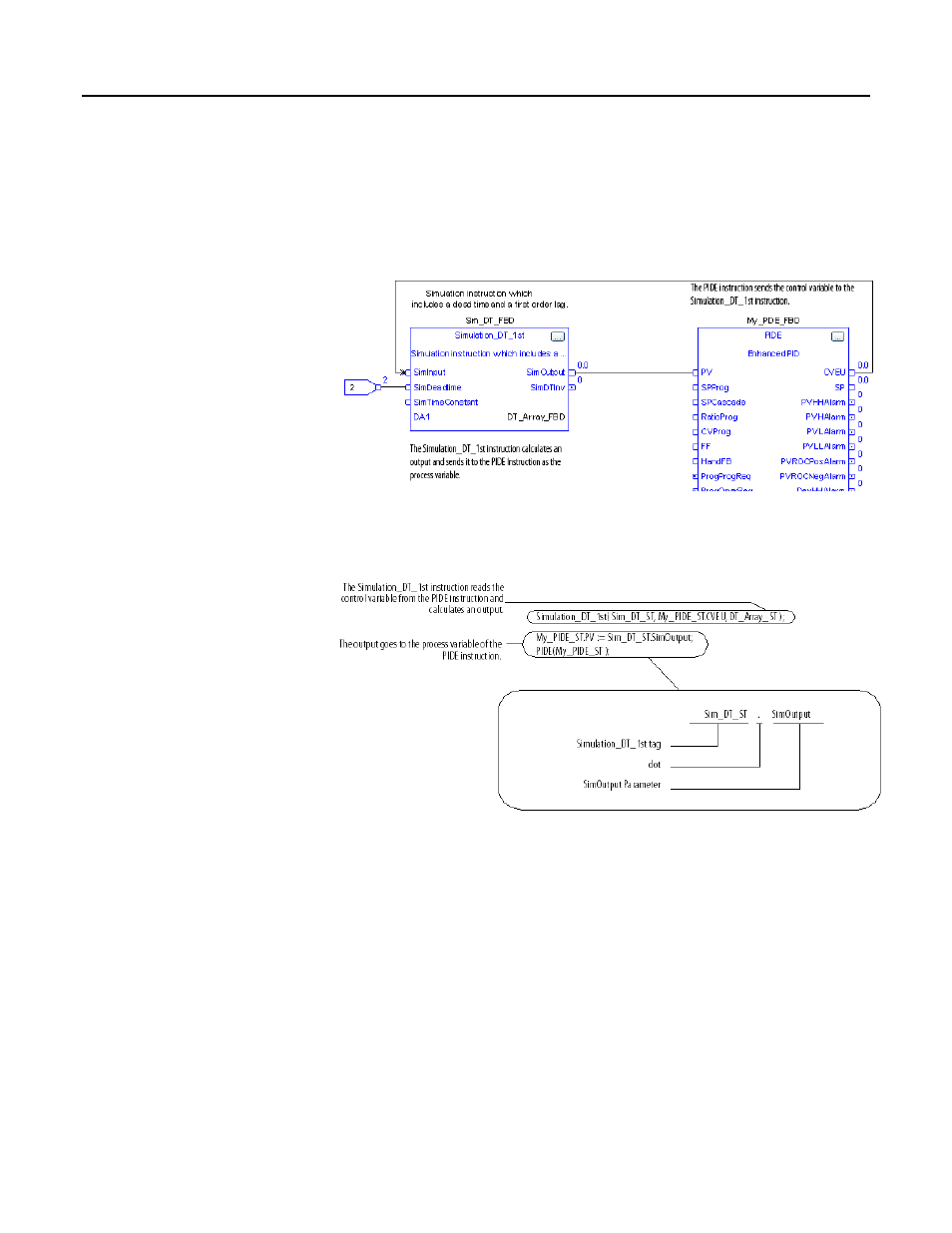

Function block diagram configuration
The PIDE instruction sends the control variable to the Simulation_DT_1st
instruction. The Simulation_DT_1st instruction calculates an output and sends it
to the PIDE instruction as the process variable
Structured text configuration
Rock well Automati on Publication 1756- PM010F-EN-P - Oct ober 2014
73
