Simulation instruction example – Rockwell Automation Logix5000 Controllers Add-on Instructions Programming Manual User Manual
Page 71
Defining Add-On Instructions
Chapter 2

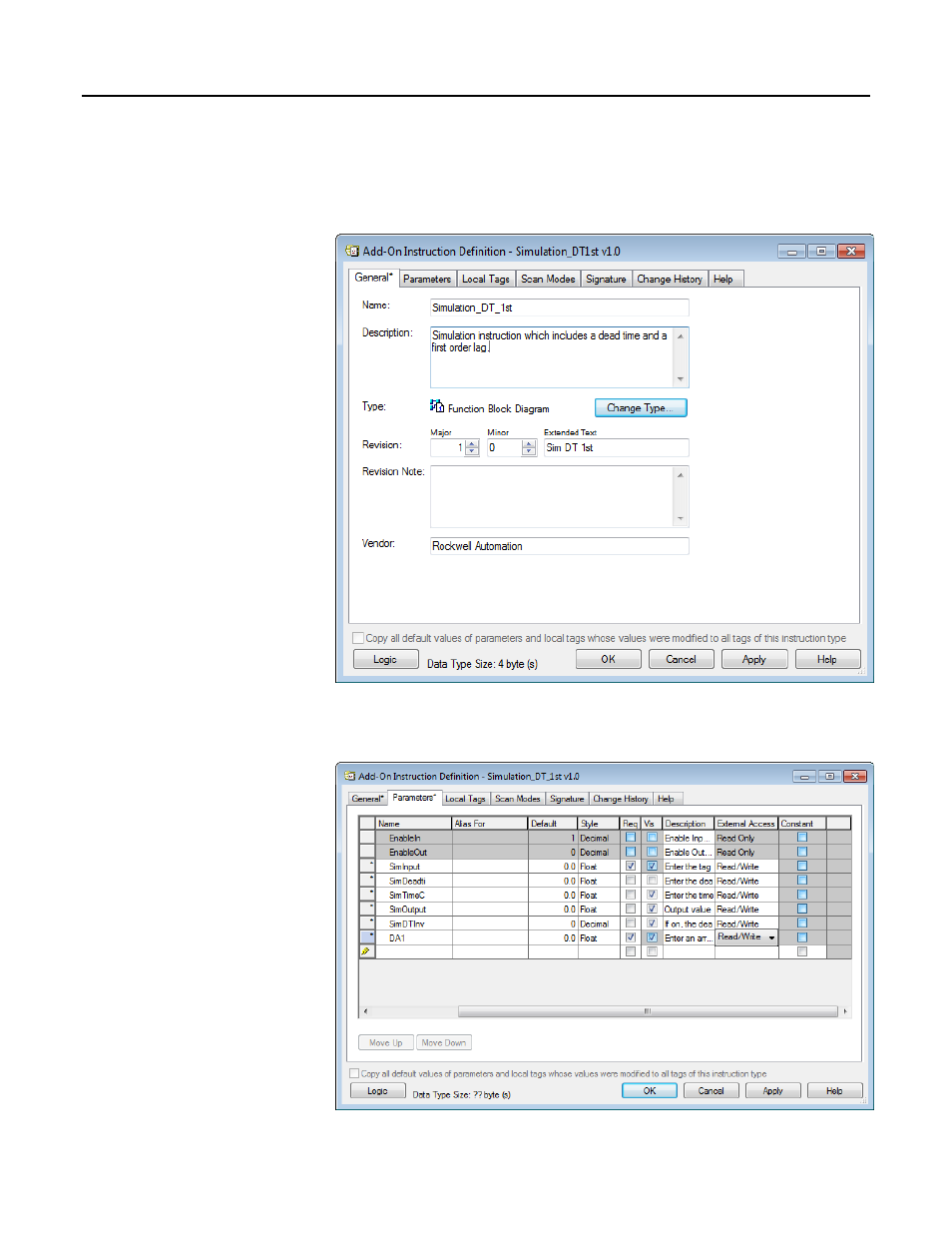

The Simulation_DT_1st Add-On Instruction adds a dead time and a first-order
lag to an input variable. The following screen capture shows the General tab for
the Simulation Example Definition Editor.
The following screen capture shows the Parameter tab for the Simulation
Example Definition Editor.
Simulation instruction
example
Rock well Automati on Publication 1756- PM010F-EN-P - Oct ober 2014
71
