Rockwell Automation Logix5000 Controllers Add-on Instructions Programming Manual User Manual
Page 70
Chapter 2
Defining Add-On Instructions

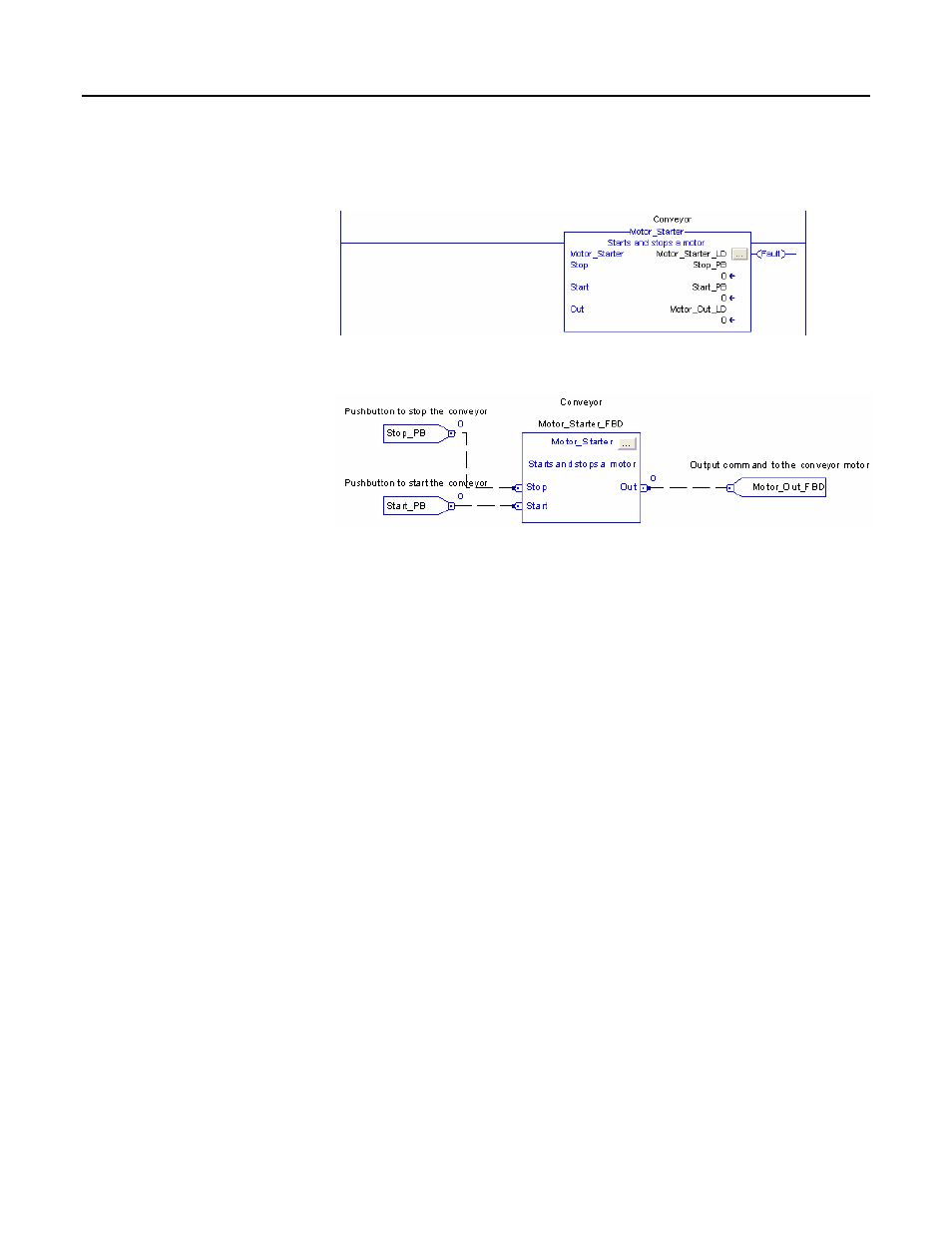

The following diagrams show the Motor Starter instruction called in three
different programming languages. First is Motor Starter Ladder Logic.
Here is the Motor Starter Function Block Diagram.
Here is the Motor Starter Structured Text.
Motor_Starter(Motor_Starter_ST, Stop_PB, Start_PB, Motor_Out_ST);
70
Rockwell Automation Publication 1756-PM010F-EN-P - October 2014
