Rockwell Automation Logix5000 Controllers Add-on Instructions Programming Manual User Manual
Page 68
Chapter 2
Defining Add-On Instructions
If the stop pushbutton is pressed (opened), then the motor stops. The following

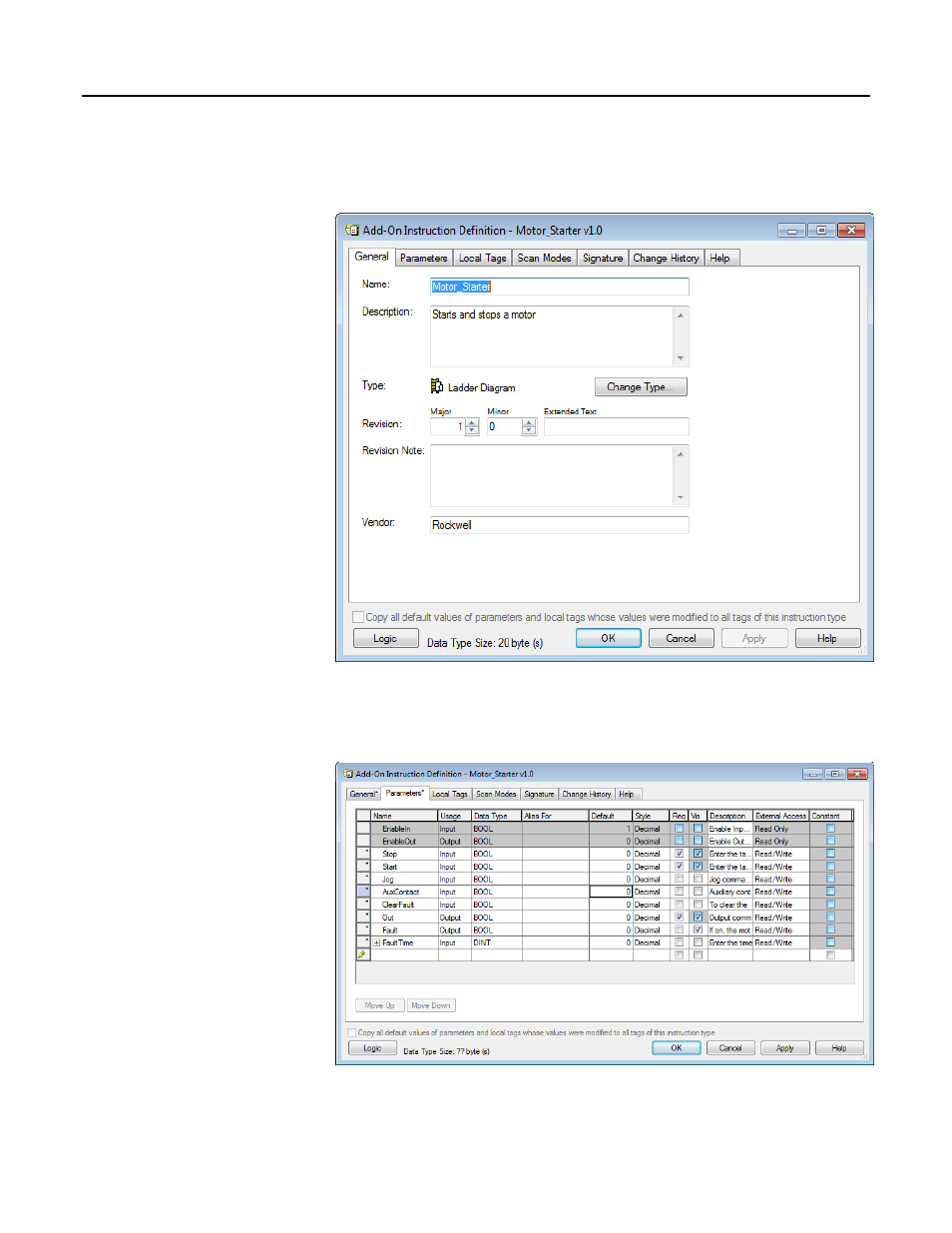

screen capture shows the General tab for the Motor Starter Add-On Instruction.
The following screen capture shows the Parameter tab for the Motor Starter
Example Definition Editor.
68
Rockwell Automation Publication 1756-PM010F-EN-P - October 2014
