Design Worksheets
Appendix B
B-15

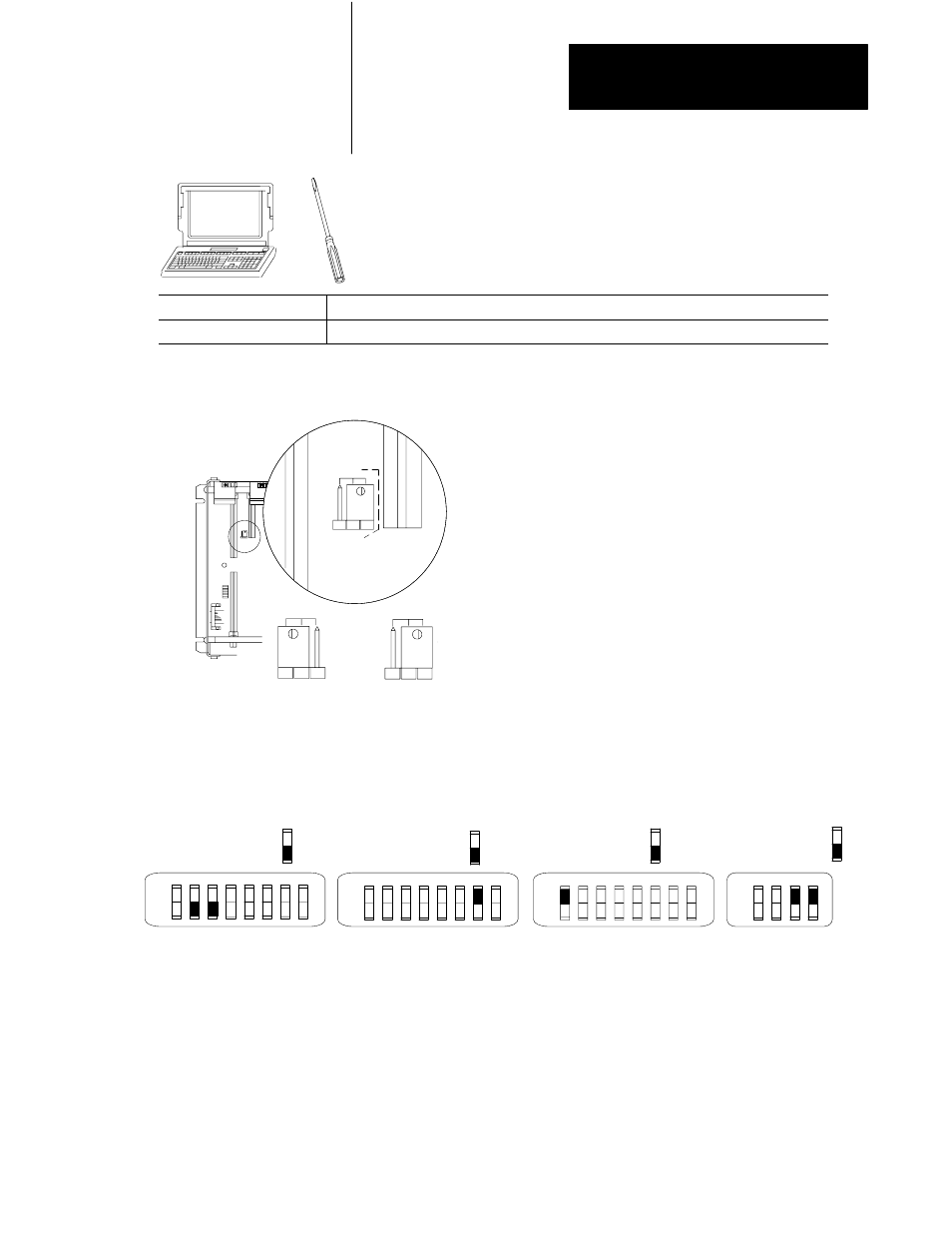

Configure Switch Settings
For more information on: See:
Configuring switches Classic PLCĆ5 Programmable Controllers User Manual, publication 1785Ć6.2.1, Appendix A
Record switch setting choices on a copy of this worksheet. You might need to return to the worksheet
several times as you complete your system design.
USING
POWER SUPPLY
MODULE IN
THE CHASSIS?
1. Locate the chassis configuration plug (between the
first two left most slots of the chassis).
2. Set the I/O chassis configuration plug.
The default setting is N (not using a power supply
module in the chassis).
N Y
N Y N Y
Set Y when you install
a power supply module
in the chassis.
Set N when you
use an external
power supply.
IMPORTANT: You cannot power a single I/O chassis
with both a power supply module and an external
power supply.
17075
Rack 0 Chassis and Processor Switch Settings
For PLCĆ5/10, Ć5/12, Ć5/15, Ć5/25 processors:
Rack 0
Processor Chassis
Back Plane Switches
Processor Module
Switch SW1
Processor Module
Switch SW2
Processor Module
Switch SW3
OFF ON
Notes: Switches shown in black are not used, but they must be set to the positions indicated.
ON ON
1 2 3 4 5 6 7 8 O
N
O
F
F
1 2 3 4 5 6 7 8 O
F
F
O
N
1 2 3 4 5 6 7 8 O
F
F
O
N
1 2 3 O
F
F
O
N
4
