3-6 Install the RSIPCMK Driver for the Windows 95/98 Operating Systems
Publication 1784-UM519C-EN-P - September 2006
Run the PCMKinfo Program
PCMKinfo is a utility program that allows you to verify the installation of the
RSIPCMK driver and the PCMK card. We recommend you run this utility after
installing the PCMK card and the driver, so you can make sure the components are
working smoothly.

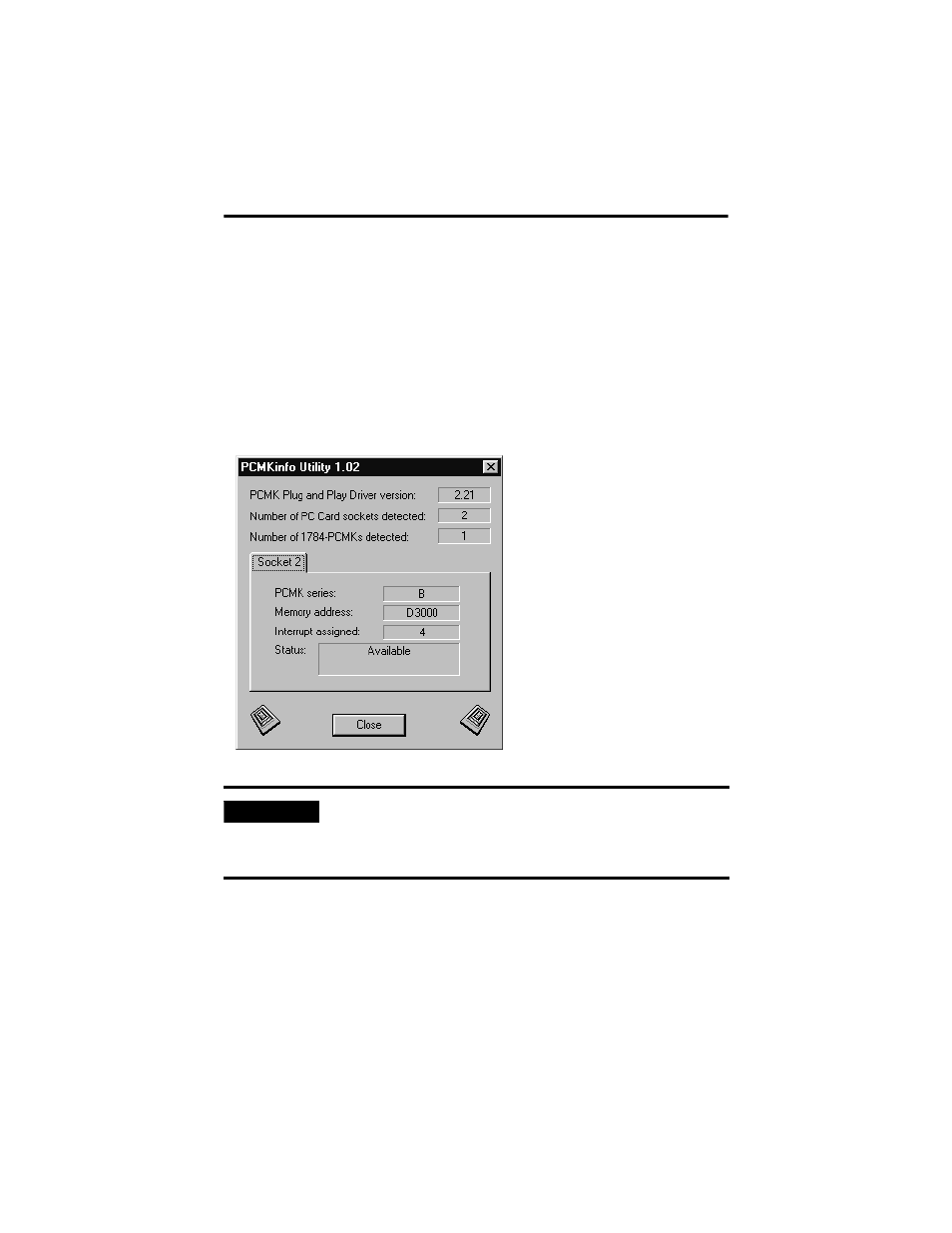

To run the PCMKinfo program, follow the steps below.
1. Access the Control Panel by selecting Start
⇒
Settings
⇒
Control Panel.
2. Double-click the PCMKinfo program icon.
IMPORTANT
If you have two PCMK cards, there is a Socket tab for each card.
Also, the memory address displayed by the PCMKinfo utility is
the linear address. This address might differ from the address
viewed in other software packages.
If you are using a 16-bit
communication package such as
WinLinx or INTERCHANGE
software, the socket number you
use when configuring the
software is one less than the
number specified by PCMKINFO.
This is because Microsoft
changed the numbering
convention when going from
Windows 3.x to Windows 95
operating systems.
