1-2 About the PCMK/B Card

Publication 1784-UM519C-EN-P - September 2006

Architecture

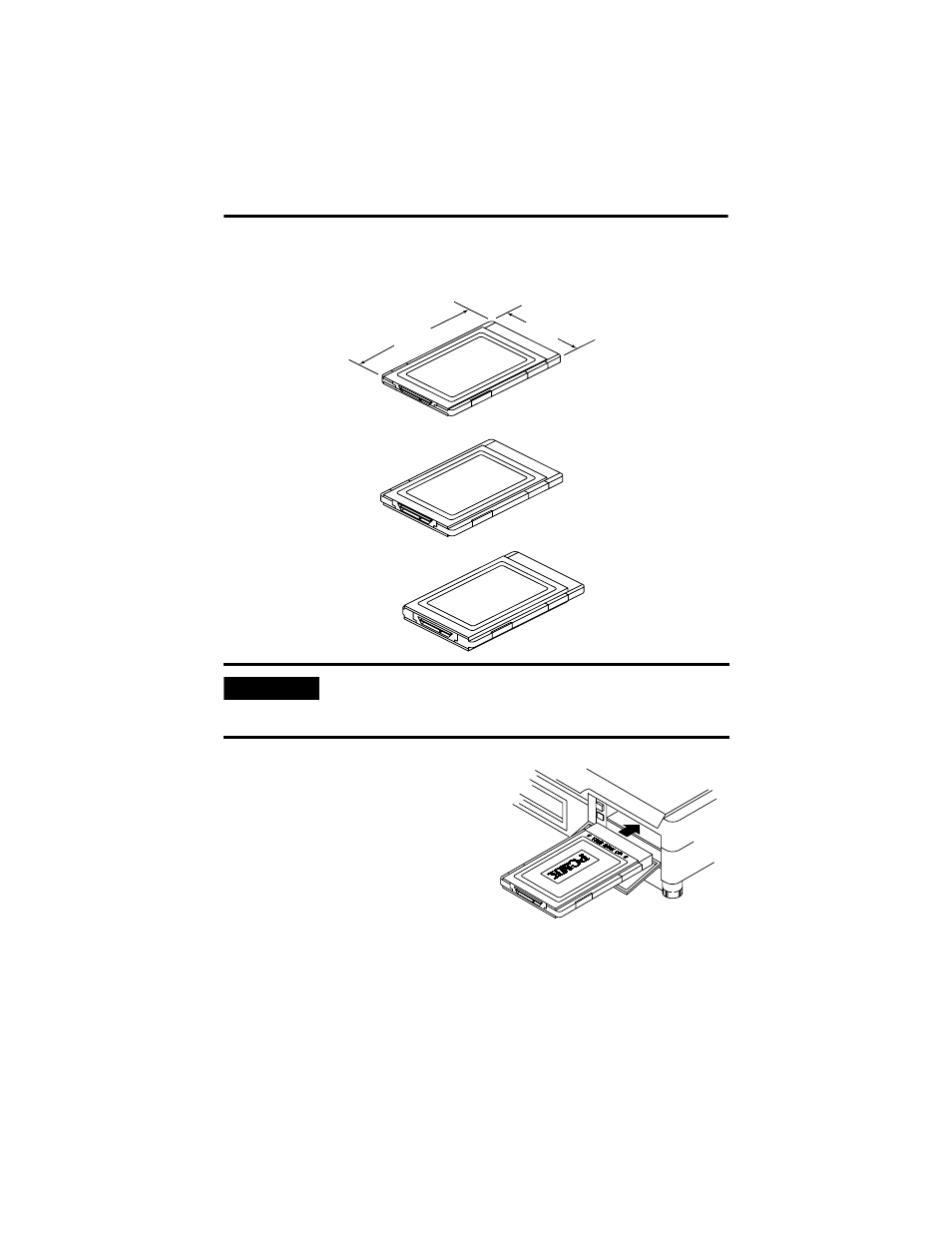

Currently, there are three types of PC cards. The 1784-PCMK card is a Type II card.

All three types of PC cards use the same
68-pin connector. The pins are in two
parallel rows of 34 pins. When inserted
into the PCMCIA slot on your computer,
the connector mates with a single molded
socket.

IMPORTANT

If the PCMCIA slot in your computer is thick enough to
accommodate a Type III card, then it can also accommodate a
Type I or II card.

85.6 mm (3.37 in.)

54 mm (2.13 in.)

Data storage, such as
Flash memory cards

Type I

3.3 mm Thick

Type II

5.0 mm Thick

Type III

10.5 mm Thick

I/O such as modem, LAN,
and host communications

Data storage or I/O
capabilities that require
more space, such as rotation
media and wireless
communication devices

19911

19873
