Chapter 5 Manage the Switch via the Studio 5000 Environment

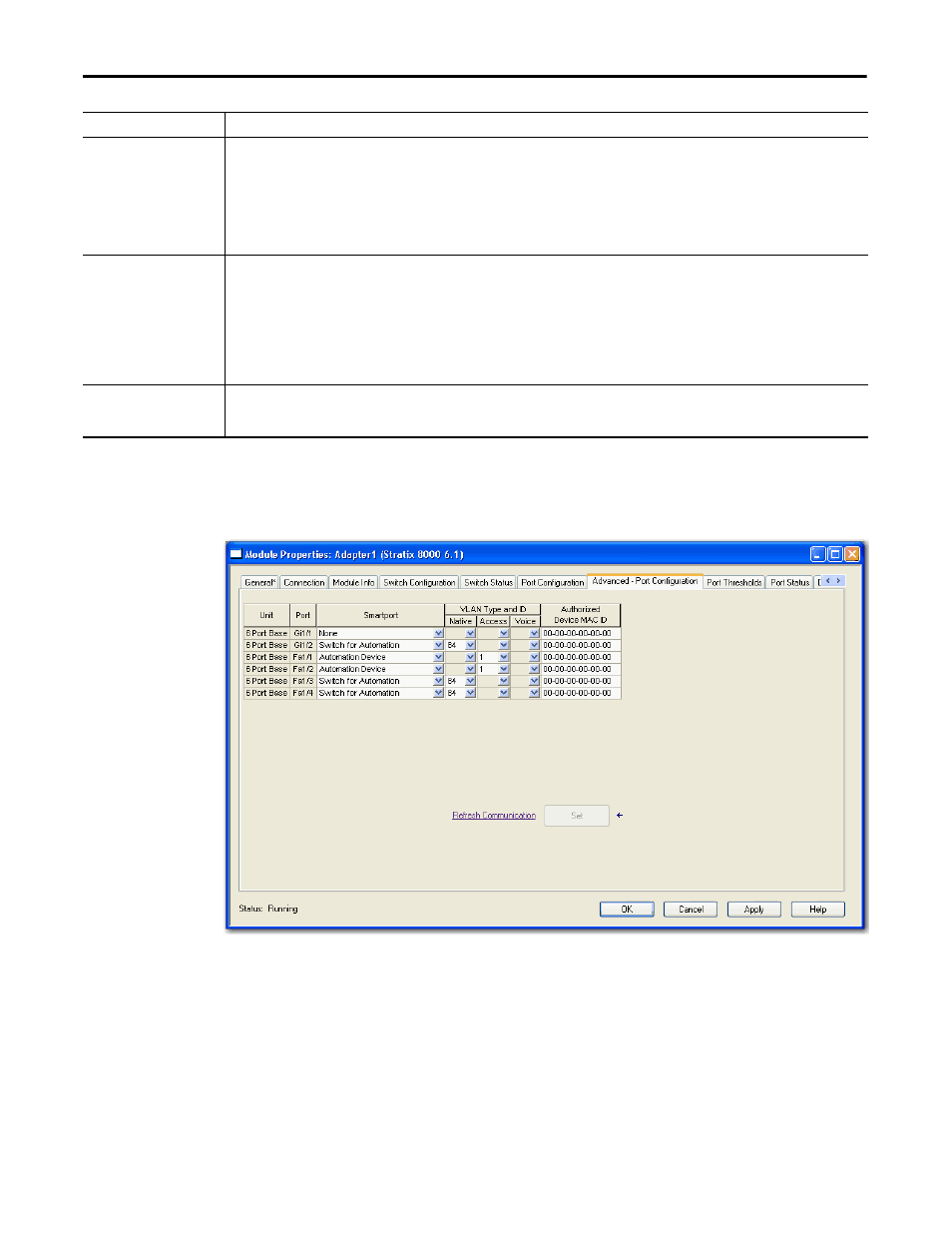

Advanced Port Properties Configure the Smartport roles VLAN and authorized MAC ID on the
Advanced Port Config tab.
You must be online to configure these port features. Most of the information on
this tab is not displayed if you are offline.
Auto-negotiate Check the checkbox if you want the port and end-device to auto-negotiate the link speed and Duplex mode.
Clear the checkbox to manually select the desired port speed and Duplex mode.
We recommend that you use the default (auto-negotiate) so that the speed and duplex settings on the switch port automatically match the setting
on the connected device. Change the switch port speed and duplex if the connected device requires a specific speed and duplex. If you set the speed
and duplex for the switch port, the connected device must also be configured for the exact same speed and duplex, and not set to auto-negotiate,
otherwise a speed/duplex mismatch occurs.
Fiber-optic interfaces do not support auto-negotiation.
Speed Choose the operating speed of the port.
Gigabit (Gi):
• 10 Mbps
• 100 Mbps
• 1 Gbps
Fast Ethernet (Fa)
• 10 Mbps
• 100 Mbps
Duplex Choose the Duplex mode of the port:
• Half-duplex—Both devices cannot send data at the same time. Half-duplex is not available when speed is set to 1 Gbps.
• Full-duplex—Both devices can send data at the same time.
Field Description
