Chapter 4 Manage the Switch via the Device Manager Web Interface
Enable Static and Connected
Routing Before you can enable static and connected routing, you must reallocate switch
memory for routing, as described on
page 136 .
To enable routing, from the Configure menu, choose Routing.
From the Routing window, you can enable connected routing only or both static
and connected routing. When static routing is enabled, connected routing is
enabled by default. For more information about these routing types, refer to
Static and Connected Routing on page 84 .
Enable Connected Routing Only
To enable connected routing only, check Enable Routing and click Submit.
No further configuration is required for connected routing.
Enable Both Static and Connected Routing

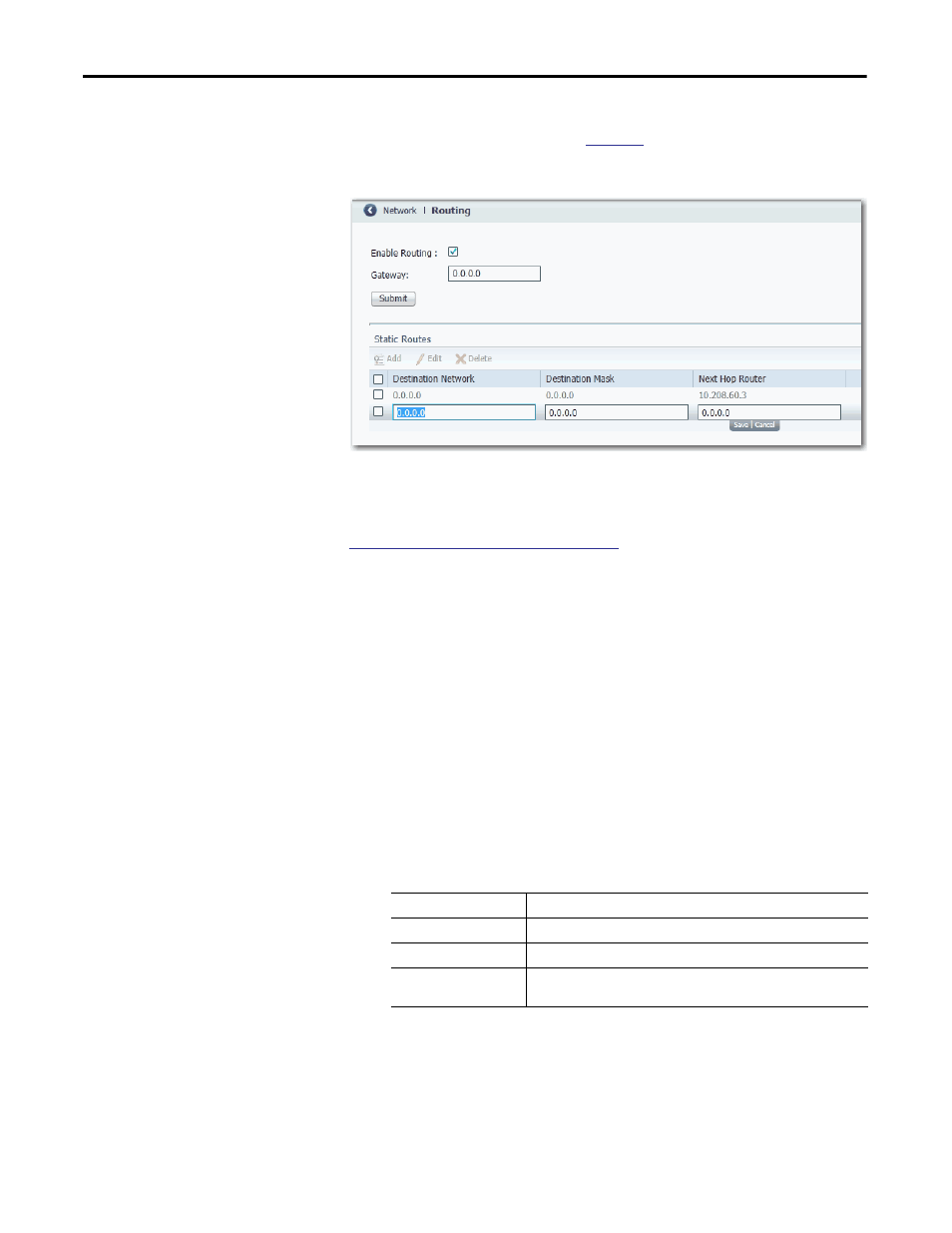

To enable both static and connected routing, follow these steps.
1. Check Enable Routing and click Submit.
2. Configure static route information as described below.
Field Description
Destination Network The IP address of the destination.
Destination Mask The subnet mask of the destination.
Next Hop Router The IP address of the router where this device will send the packets for the
specified destination.
