Chapter 2

Installing The Smart Transmitter Toolkit

2-3

A.

Start at the 6200 Main Menu and press these keys:

F1

F1

Online Prog

F3

Offline Prog

Proc Func

or

6200

Main Menu

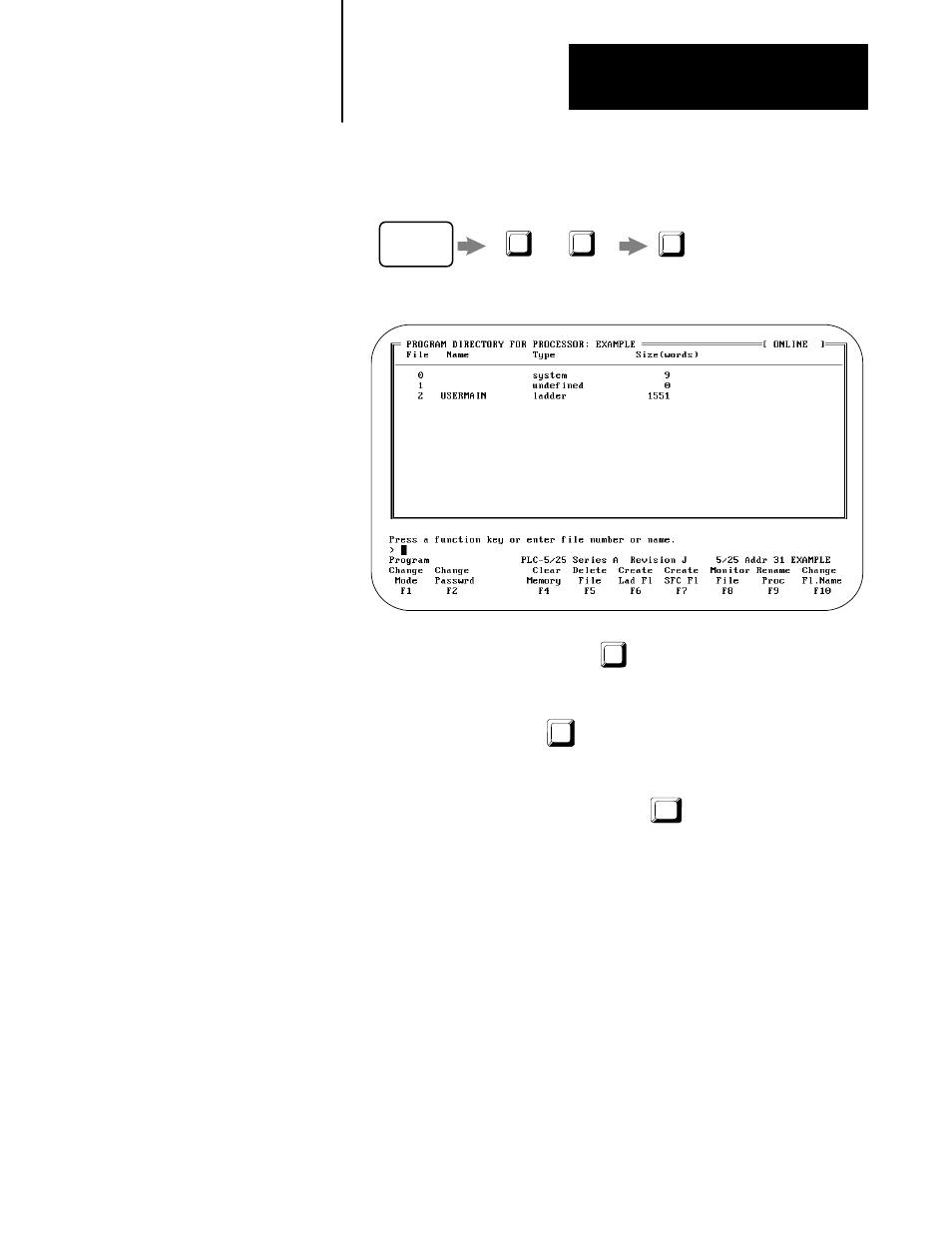

You see:

B.

To create a program file, press

F6

Create Lad Fl

and then enter a

file number.

C.

To name the file, press

F10

Change Fl Name

and then enter a file

name. We recommend that you use the filename

STT_SUB

.

D.

To go to the Program Directory, press

Esc

.

2. Create and Name a New

Program File
