Rockwell Automation Publication 520COM-UM004A-EN-E - November 2013 7
Chapter
1
Getting Started
The 25-COMM-P adapter is intended for installation into a
PowerFlex 520-series drive and is used for network communication.

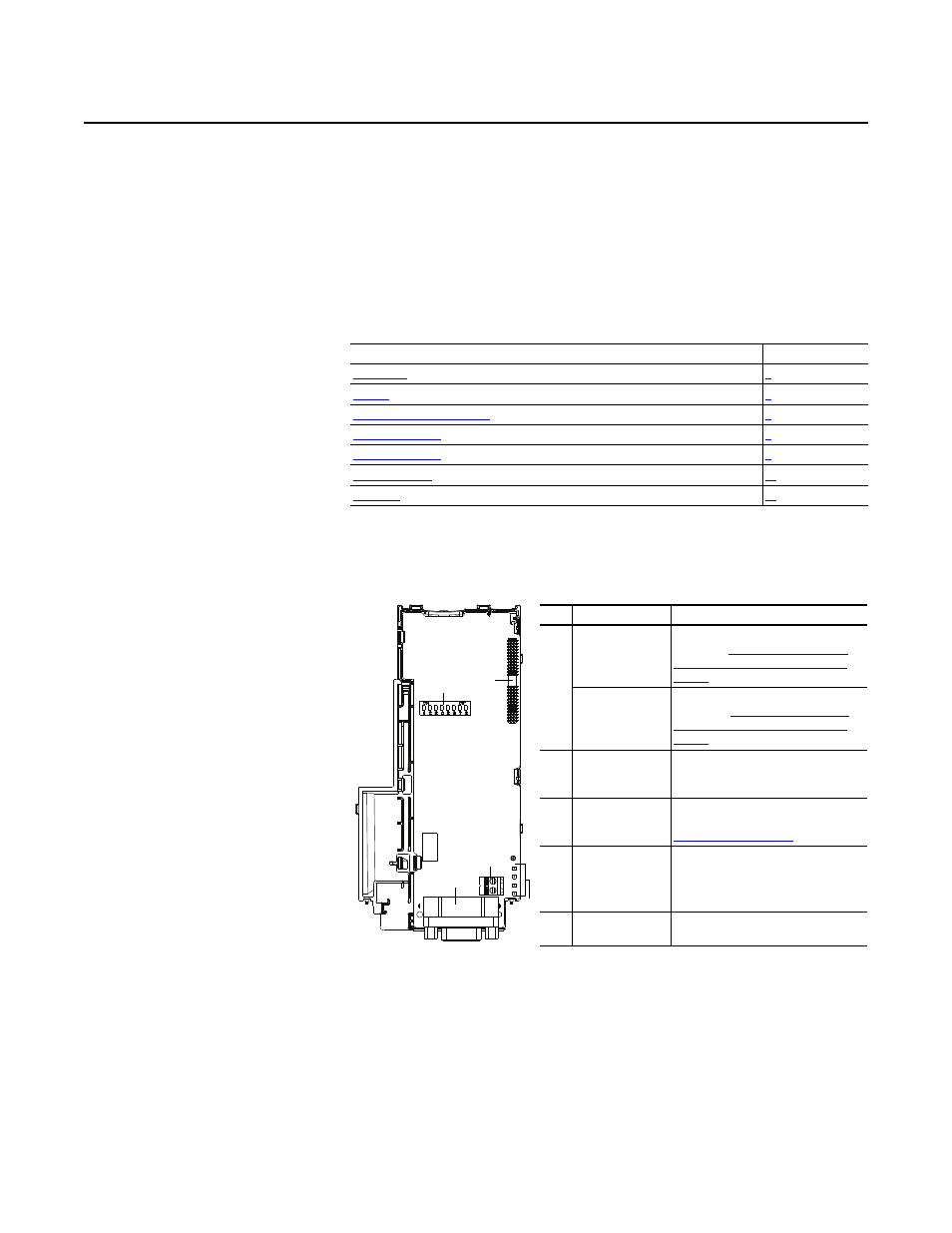

Components Components of the Adapter
Topic Page
Components 7
Features 8
Understanding Parameter Types 8
Compatible Products 9
Required Equipment 9
Safety Precautions 10
Quick Start 11
Item Part Description
➊ Node Address
switches Switches for setting the node address of the
adapter. See
Setting the Endianness and
Node Address Using the DIP Switches on
page 14
.
Endianness Selection
switch (Switch 8) Sets the endianness of data transmitted over
network.See
Setting the Endianness and
Node Address Using the DIP Switches on
page 14
.
➋ Adapter-to-Drive
header A 40-pin, double-row shrouded female
header. An interface connector is used to
connect this header to a header on the drive.
➌ Status indicators Three LEDs that indicate the status of the
connected drive, adapter and network. See
Troubleshooting on page 69 .
➍ CS1/CS2 terminals Provides a clean ground for the
communication bus cable shields.
CS1 or CS2 should be connected to a clean
ground or PE ground on the drive.
➎ PROFIBUS DB9
Female connector PROFIBUS connector for the PROFIBUS
network cable.
25-COMM-P
➊
➋
➌
➍
➎
