Rockwell Automation Publication 520COM-UM004A-EN-E - November 2013 55
Chapter
7
Using Multi-Drive Mode
This chapter provides instructions on how to configure a CompactLogix
controller to use the PowerFlex 520-series drive in Multi-drive mode.
Single-Drive Mode vs. Multi-
Drive Mode Single-drive mode is a typical network installation, where a single PROFIBUS
node consists of a single drive with a PROFIBUS adapter.

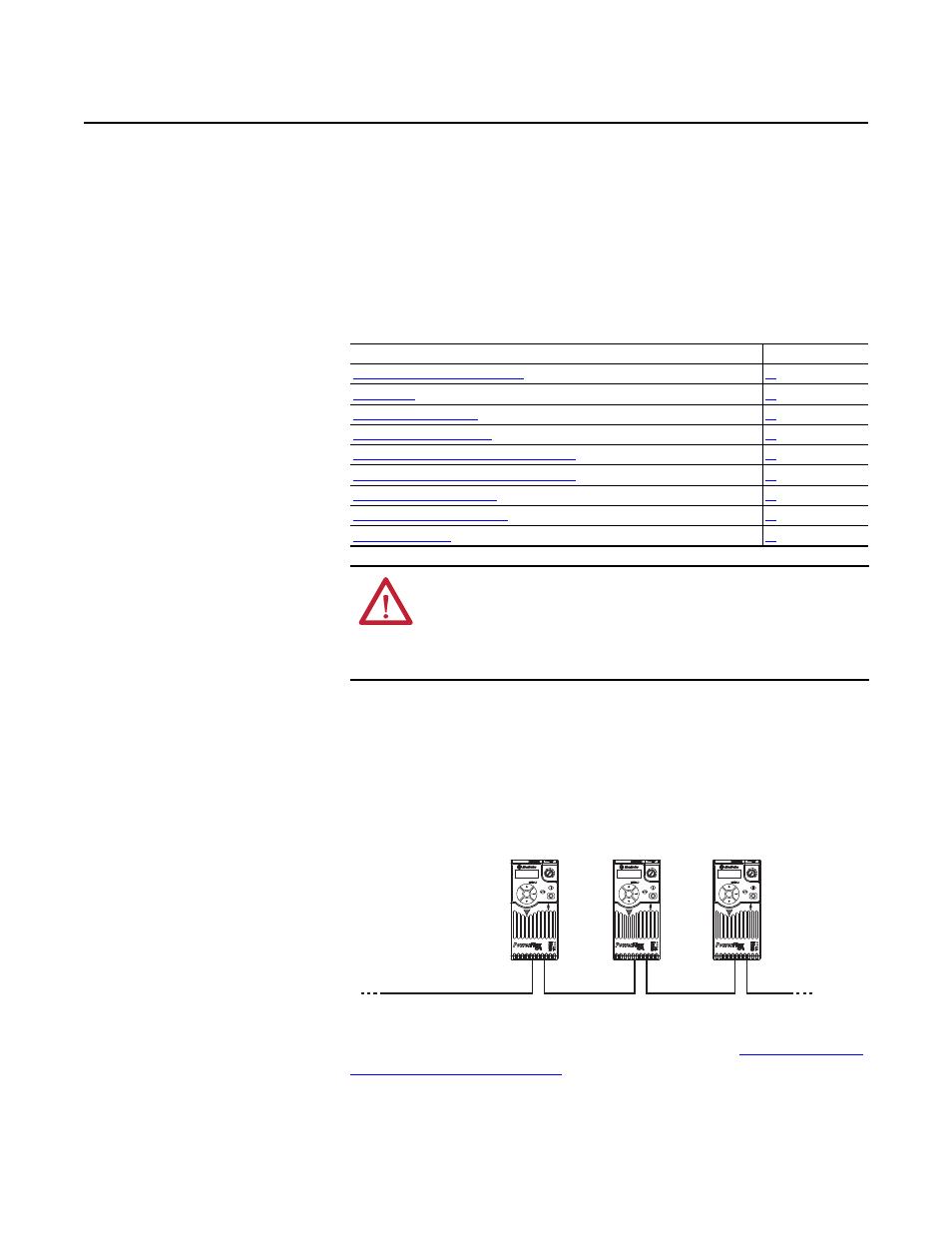

Single-Drive Mode Example for Network
Multi-drive mode is an alternative to the typical network installation, where a
single PROFIBUS node can consist of one to five drives (see
Multi-Drive Mode
Example for Network on page 56 ). The first drive must be a PowerFlex 520-series
drive. The remaining drives can be any PowerFlex drive which supports Multi-
drive mode.
Topic Page
Single-Drive Mode vs. Multi-Drive Mode 55
System Wiring 57
Understanding the I/O Image 57
Configuring the RS-485 Network 58
Multi-Drive Ladder Logic Program for Generic Profile 60
Multi-Drive Ladder Logic Program for Generic Profile 60
CompactLogix Controller Example 61
Multi-Drive Mode Acyclic Messaging 67
Additional Information 68
ATTENTION: Risk of injury or equipment damage exists. The examples in this
publication are intended solely for purposes of example. There are many
variables and requirements with any application. Rockwell Automation, Inc.
does not assume responsibility or liability (to include intellectual property
liability) for actual use of the examples shown in this publication.
Esc Sel Esc Sel Esc Sel
One drive per node
PROFIBUS
PowerFlex 525 with
25-COMM-P PowerFlex 525 with
25-COMM-P PowerFlex 525 with
25-COMM-P
