Operation 3-24
Publication 198-UM002A-EN-P December 2001
The above attributes can be configured using the “Class Instance Editor” in the Device
Menu of RSNetWorx. Following is an example of how to configure an output from the above
lineup.
EXAMPLE
See previous example on page 3-21
The following example will set the Idle Action of Out 1 of the Cat. No. 198-IB2XOB1
(DOP instance 4) to “Hold Last State”.

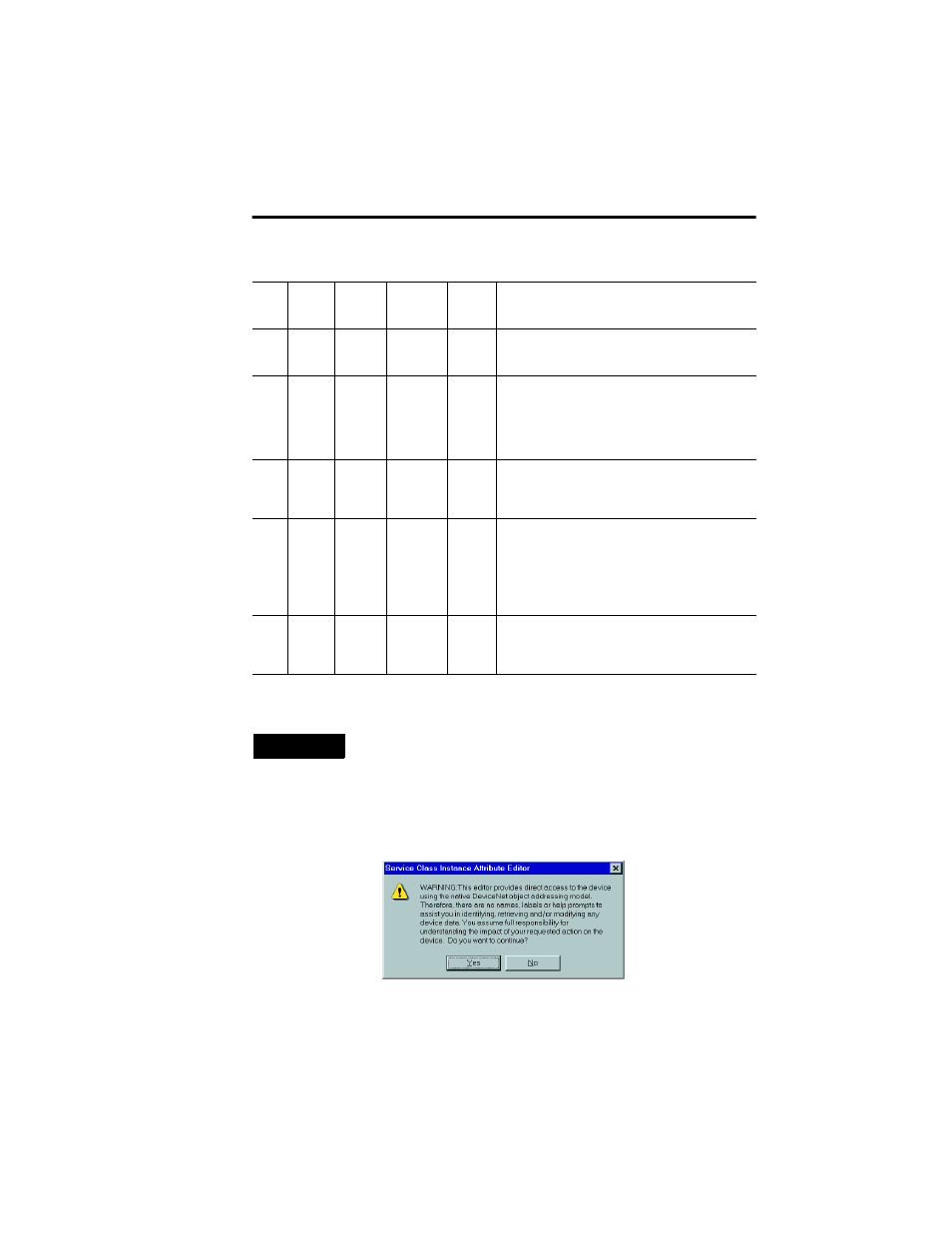

1. Invoke the “Class Instance Editor” in the Device Menu of RSNetWorx. The
following screen appears:
Please read this screen carefully. Click Yes if you wish to continue. The following screen will appear:
Table 3.5 Discrete Output Point Instance Attributes
Class
ID Service
Code Attribute Name Data
Size
(bytes) Description
9 Get 3 Value 1 The value of the output
0 = OFF
1 = ON
9 Get/Set 5 Fault Action 1 This attribute, in conjunction with attribute 6, defines
how the output will behave when a network fault occurs.
0 = Set the output value to the Fault Value contained in
attribute 6
1 = Hold the output value prior to the DeviceNet fault
occurrence.
9 Get/Set 6 Fault Value 1 This attribute determines the state that the output will
assume when a network fault occurs.
0 = OFF
1 = ON
9 Get/Set 7 Idle Action 1 This attribute, in conjunction with attribute 8, defines
how the output will behave when a network idle
condition occurs.
0 = Set the output value to the Idle Value contained in
attribute 8
1 = Hold the output value prior to the DeviceNet idle
occurrence.
9 Get/Set 8 Idle Value 1 This attribute determines the state that the output will
assume when a network idle condition occurs.
0 = OFF
1 = ON
